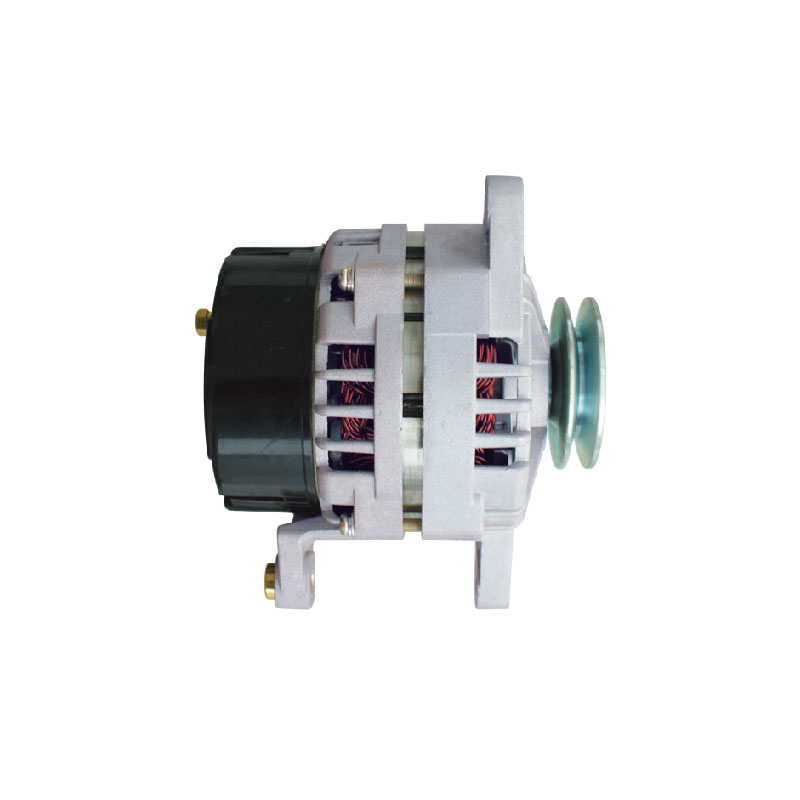

Automotive Alternator
This high-output alternator is designed for automotive applications. It features durable construction with a robust housing and efficient cooling.
Technical Specifications
Overview
High-Performance Automotive Alternator
This high-output alternator is engineered for reliable power generation across a wide range of engine speeds, ensuring stable voltage for demanding vehicle electrical systems. Featuring a robust housing and efficient cooling design, it is built for durability in diverse automotive applications. It includes essential components such as a high-quality stator, rotor, rectifier, and voltage regulator for consistent performance.
Key Performance
Performance Highlights
12 V
Standard Voltage
120 A
Max Rated Current
1 Year
Warranty
Technical Specifications

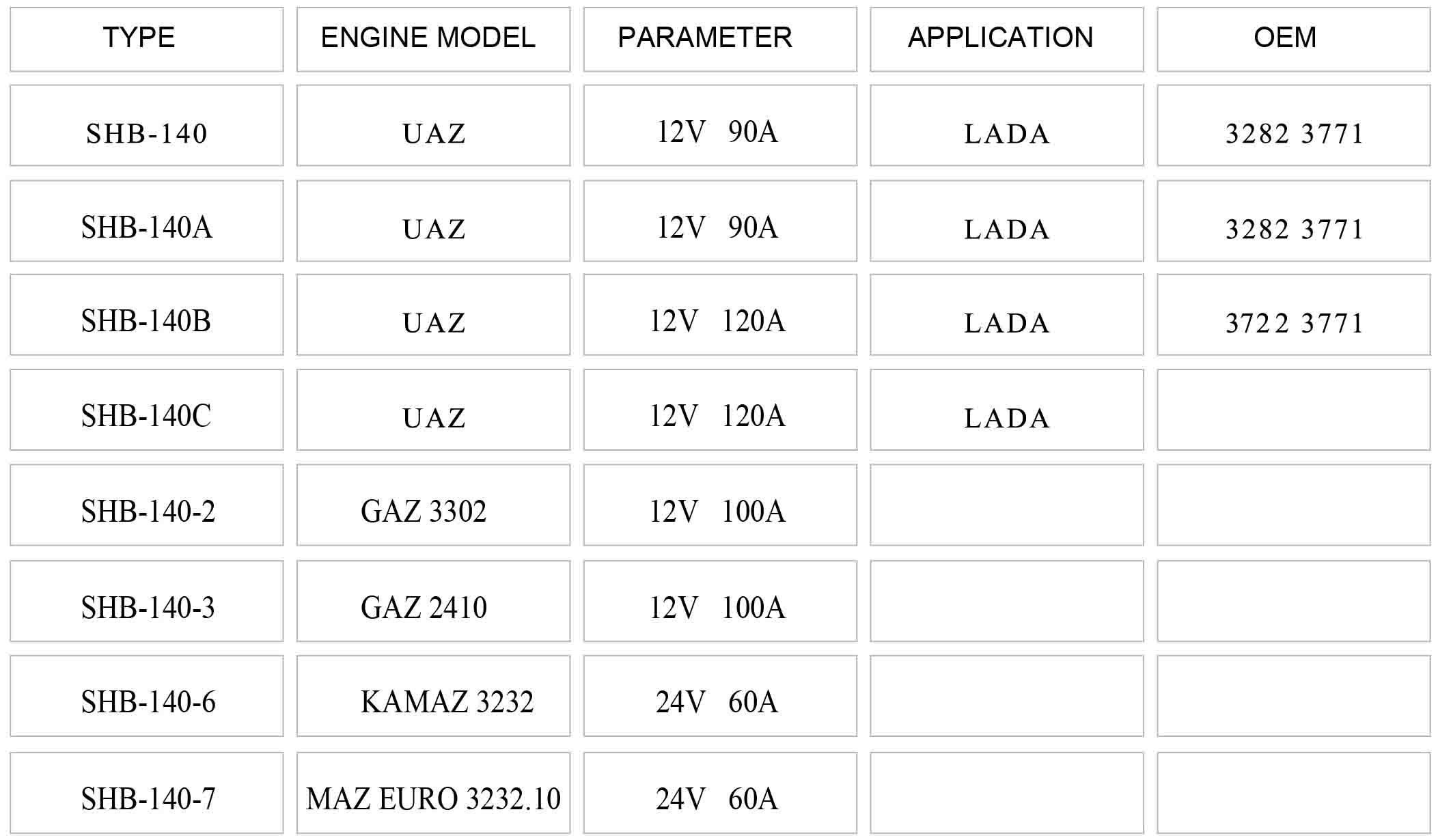

Model & Engine Compatibility
| Type | Engine Model | Parameters | OEM Number |
|---|---|---|---|
| SHB-140 | UAZ | 12V 90A | 3282 3771 |
| SHB-140B | UAZ | 12V 120A | 3722 3771 |
| SHB-140-2 | GAZ 3302 | 12V 100A | - |
| SHB-140-6 | KAMAZ 3232 | 24V 60A | - |
| SHB-140-7 | MAZ EURO 3232.10 | 24V 60A | - |
Design & Dimensions
Mechanical Specifications
- Pulley Diameter: 76mm
- Mounting Point: M8-6H
- Hole Diameter: 10.3mm
- Terminals: B+, D, W
- Pulley Type: Standard V-belt design
Supply & Logistics
- Production Lead Time
- 45 days
- Primary Applications
- AutomotiveLADAHeavy DutyReplacement Parts
