Automotive Alternator
This high-output alternator is designed for automotive electrical systems. It provides stable voltage output and high amperage to support modern vehicle electrical loads.
Technical Specifications
Overview

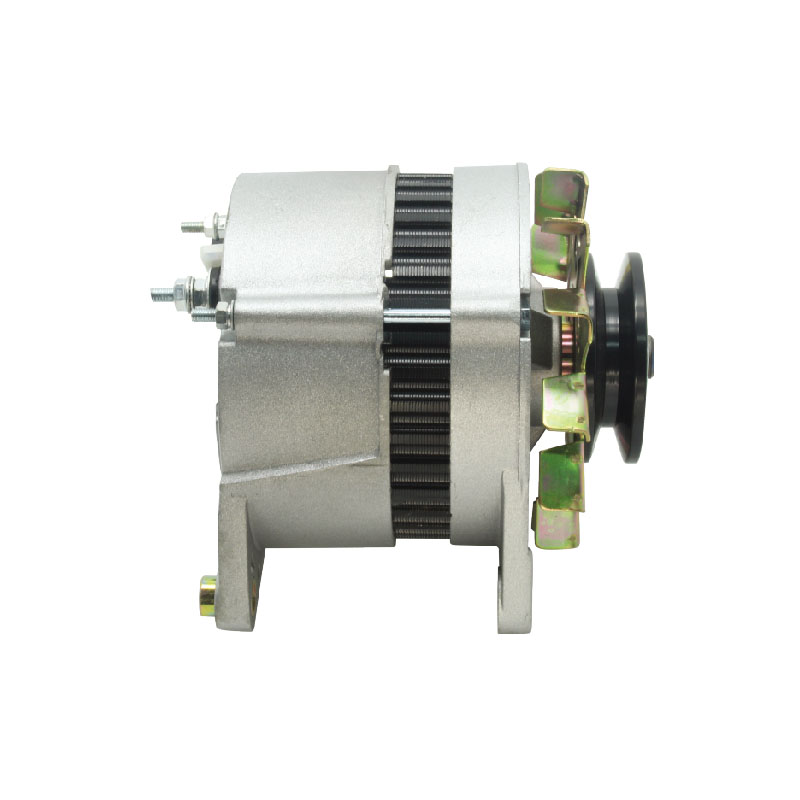

High-Performance Automotive Alternator
This automotive alternator is engineered to provide a stable 12V voltage output and a 70A current capacity, making it ideal for modern vehicle electrical loads. Featuring robust construction and efficient cooling, it ensures reliable performance even under demanding conditions. The unit comes complete with a pulley and mounting hardware to facilitate a straightforward installation process.
Technical Performance
Key Performance Metrics
12 V
Rated Voltage
70 A
Rated Current
- System Compatibility
- Lucas type systems
Physical Dimensions
Main Dimensions
| Dimension | Value |
|---|---|
| Diameter | 128 mm |
| Total Length | 140 mm |
| Mounting Width | 38.2 ± 0.5 mm |
| Fan Diameter | 135.5 mm |
| Pulley Diameter | 49 mm |
Mounting Specifications
- Thread Type: M8 x 1.25
- Terminal Types: MS, W, D
- Mounting Hole Diameter: 11.5 mm
- Design: Compact with integrated cooling fan
Manufacturing & Logistics

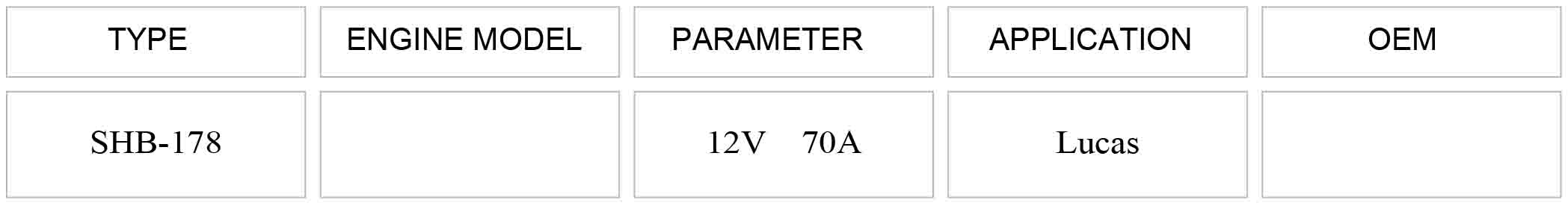

Model Reference
SHB-178
- Production Cycle
- 45 days
- Warranty
- One year
