Automobile Circuit Protection Fuse
These fuses provide overload and short circuit protection for electric lines. They have a rated voltage up to 80V DC or 50Hz 130V AC, and a rated current up to 800A.
Technical Specifications
Product Overview
High-Current Circuit Protection

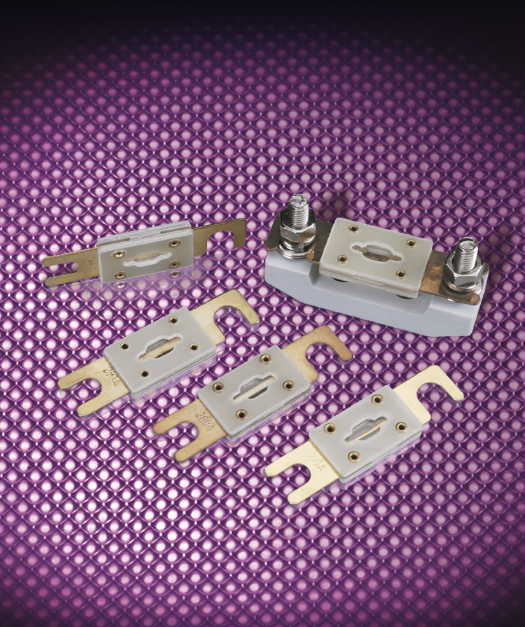

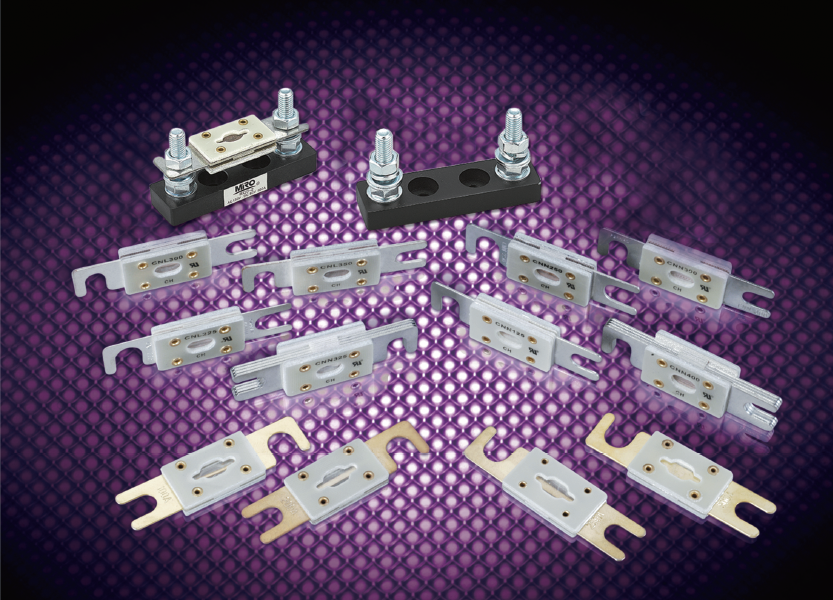

These automobile circuit protection fuses are engineered to provide reliable defense against overloads and short circuits in demanding electrical systems. Designed with a robust construction, they support high-current applications up to 800A and are available in both normal (CNL, RQ1) and fast-acting (CNN) configurations. The modular design, consisting of fuse links and compatible bases, ensures easy installation and efficient maintenance for vehicle and industrial electrical lines.
Electrical Ratings
Rated Voltage
80 V
DC Voltage
130 V
AC Voltage (50Hz)
- Maximum Rated Current
- 800 A
Technical Specifications
- Fuse Types
- Normal (CNL)Normal (RQ1)Fast (CNN)
- Mounting Configuration
- Bolting connected
- Compatible Fuse Base
- RQD-2
Available Models
Model Reference
| Series | Current Ratings |
|---|---|
| CNL Series | 225A, 250A, 300A, 325A, 350A |
| CNN Series | 125A, 250A, 325A, 350A, 400A |
