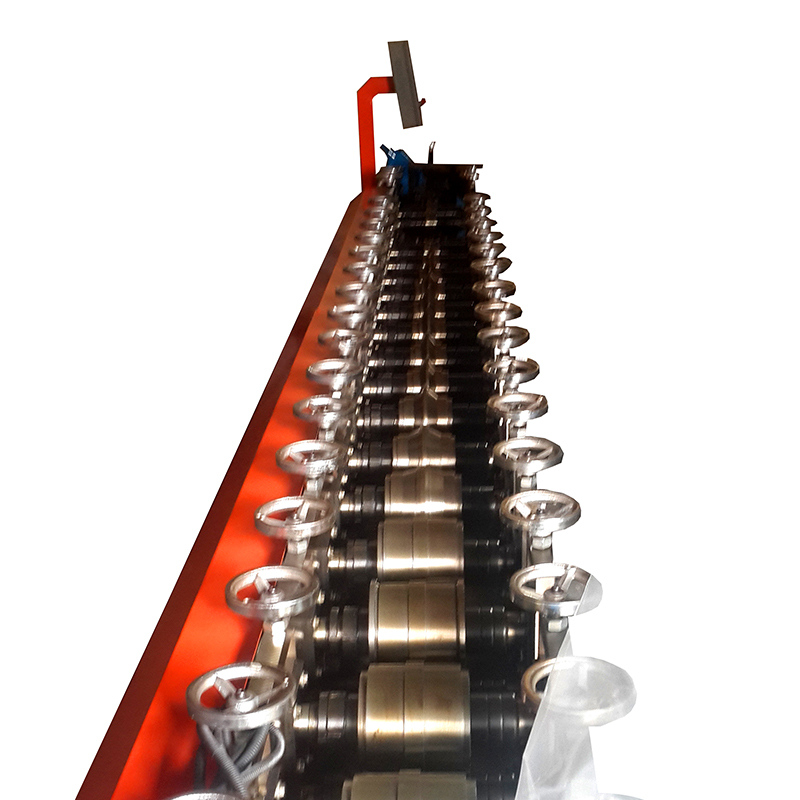

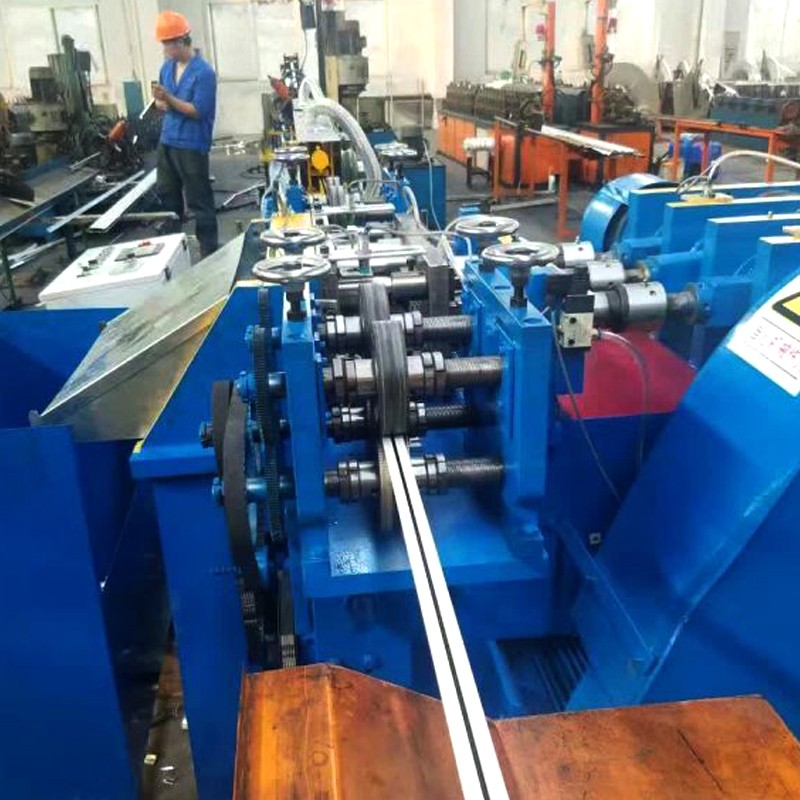

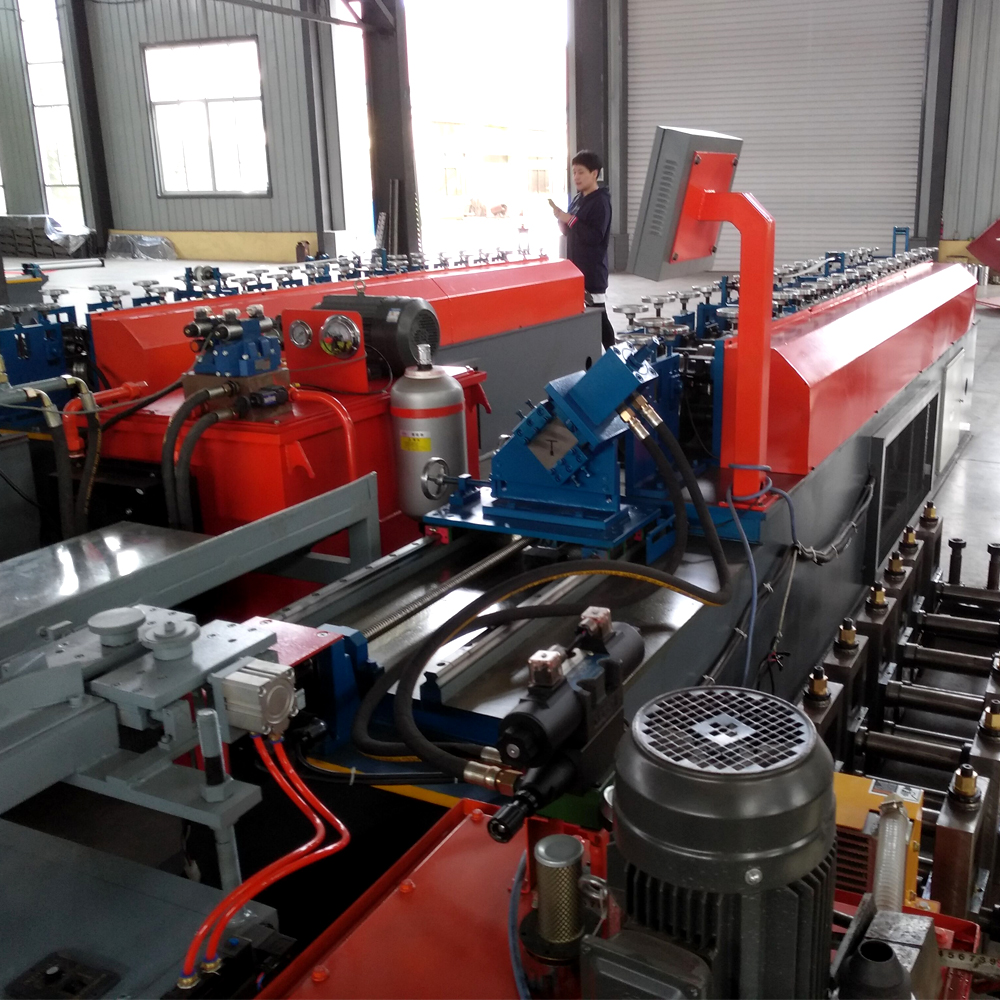

Automatic T-Grid Roll Forming Machine
This automatic machine produces ceiling T-grids, shaped steel bar frames, metal studs and tracks. It efficiently forms and shapes metal components with precision, ensuring consistent quality and dimensional accuracy.
Technical Specifications
Overview
High-Precision T-Grid Production
This automatic roll forming machine is engineered for the high-volume production of ceiling T-grids, metal studs, and track profiles. It features a robust 18mm steel welding main frame and multiple forming stations to ensure consistent dimensional accuracy across various profiles including Main-T, Cross-T, and Wall Angle L shapes. With an integrated PLC colored touch screen control system, operators can easily manage production parameters for efficient, professional-grade manufacturing.
Technical Performance
Key Performance Metrics
5.5 kW
Main Power
0.3 mm
Material Thickness
18 mm
Frame Thickness
Control System
- Control Interface
- PLC Colored Touch Screen
Profile Specifications
Standard Profile Dimensions
| Profile Type | Height (mm) | Width (mm) | Top Width (mm) |
|---|---|---|---|
| Main-T Grid | 38 | 35 | 6 |
| Cross-T Grid | 32 | 35 | 6 |
| Wall Angle L | 32 | 35 | 0 |
Manufacturing Capabilities
Supported Products
- Ceiling T-Grids
- Shaped Steel Bar Frames
- Metal Studs
- Track T-Grids
- Wall Angle L Profiles
Construction & Design
- Machine Features

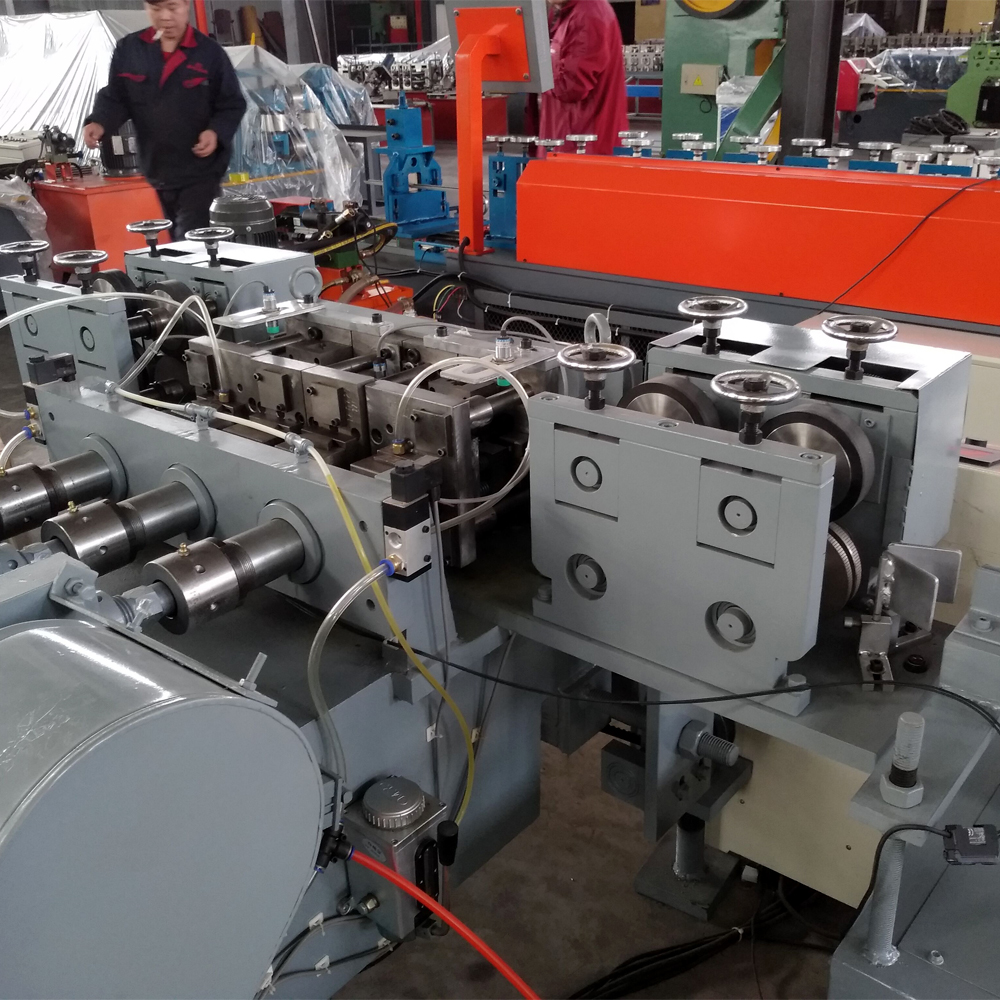

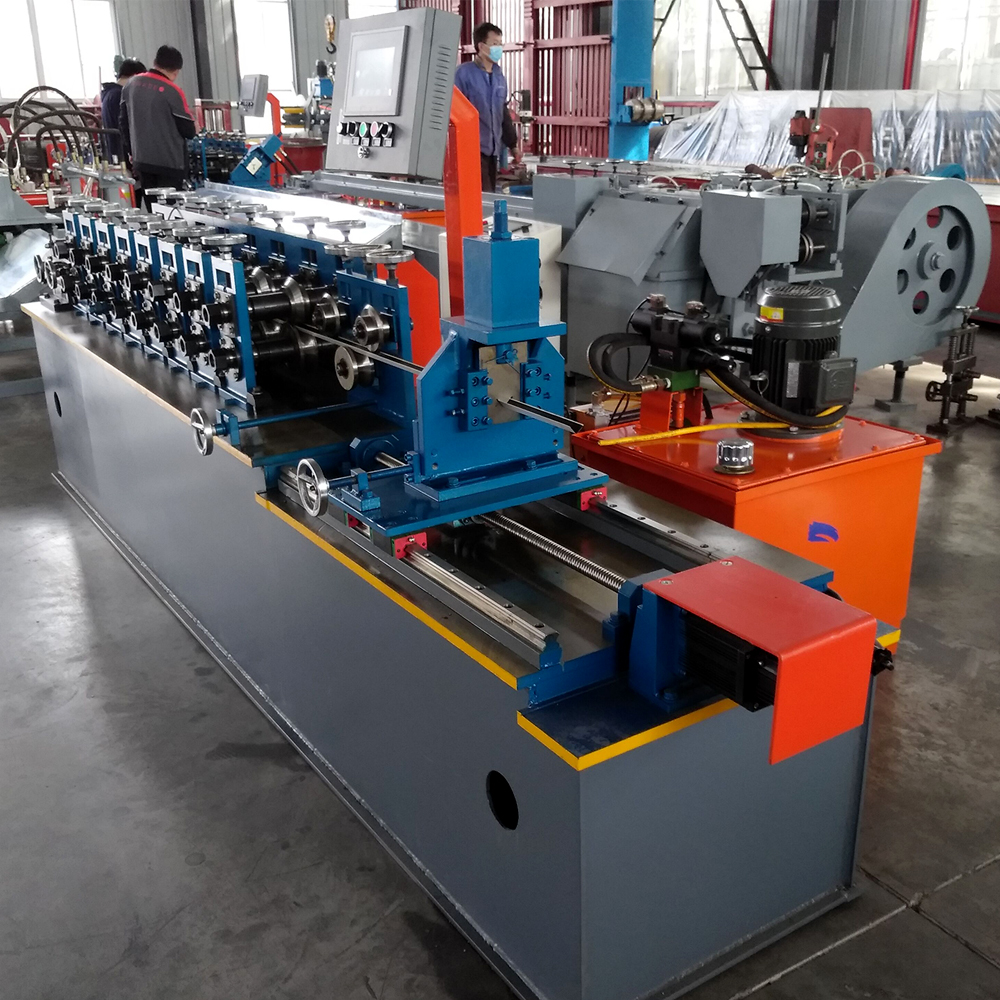

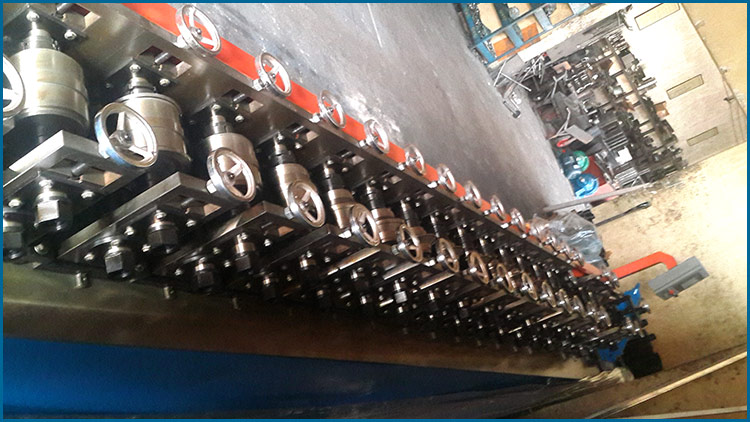

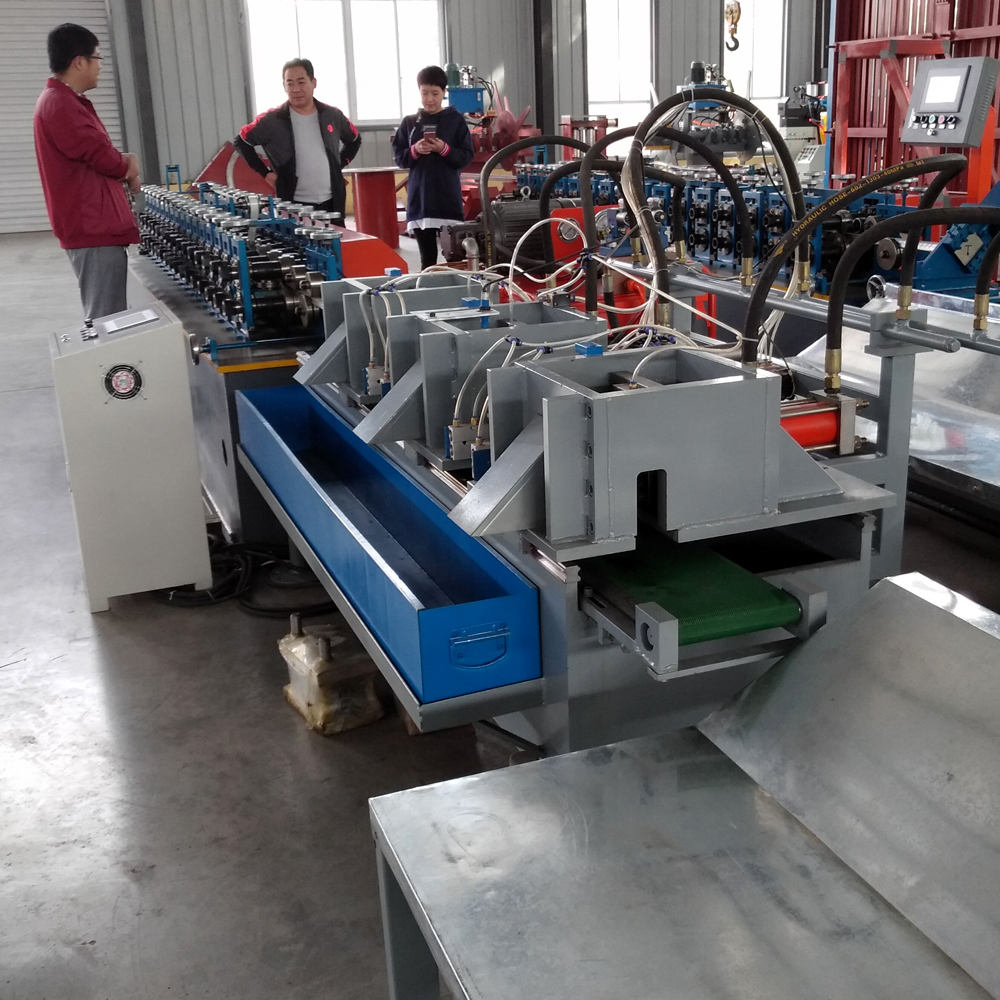

- Automatic FeedingPrecision FormingHydraulic CuttingMulti-Station RollingAdjustable Rollers
Quality & Compliance
Certifications & Standards
CEISO 9001SGS Verified
Service & Warranty
- Warranty
- 1 year
- Sourcing Service
- Customized sourcing service available based on profile drawings
