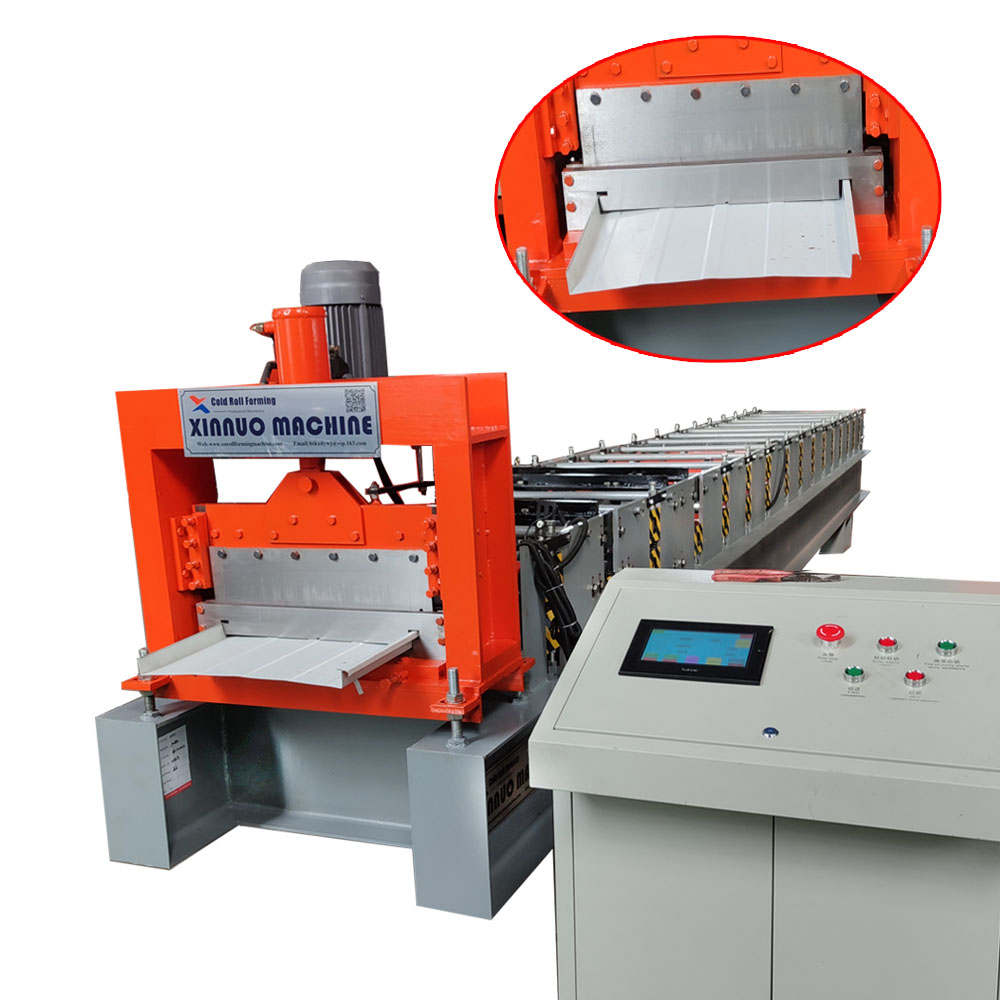

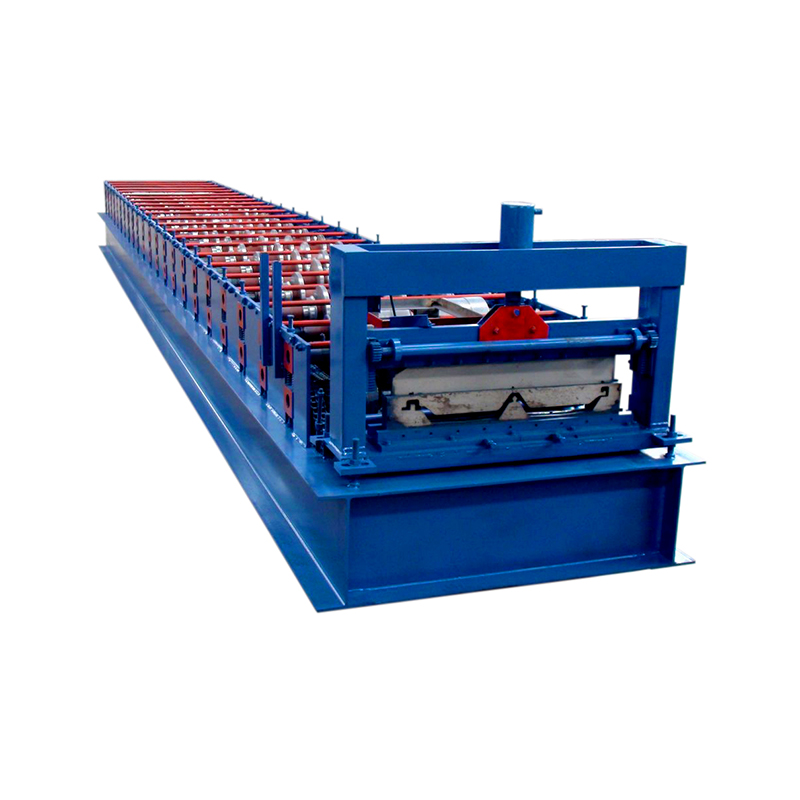

Steel Roof Panel Roll Forming Machine
This rolling mill is designed for the efficient production of joint-hidden steel metal roof panels, suitable for large-span construction. It features a robust frame and an integrated control system for automated operation.
Technical Specifications
Overview
Automated Join-Hidden Roof Panel Production
This automatic roll forming machine is engineered for the efficient, high-volume production of joint-hidden steel roof panels. Designed for large-span construction projects, it creates durable, weather-tight roofing solutions with a seamless, aesthetically pleasing finish. The system integrates a manual decoiler, precision forming rollers, hydraulic cutting, and PLC control to ensure consistent panel quality and operational reliability.
Technical Specifications
- Production Speed
- 12 m/min

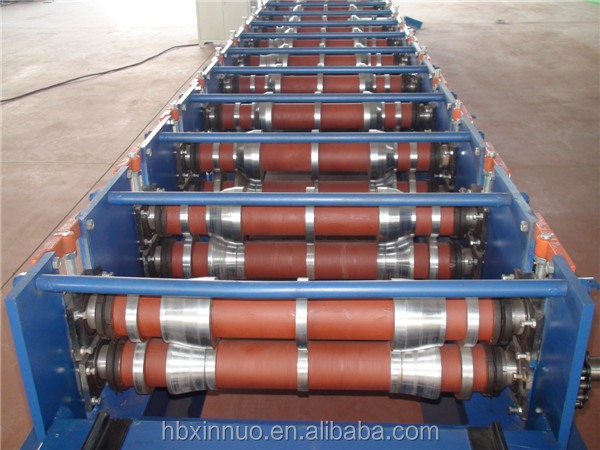

- Roller Stands
- 17
- Main Motor Power
- 3 kW

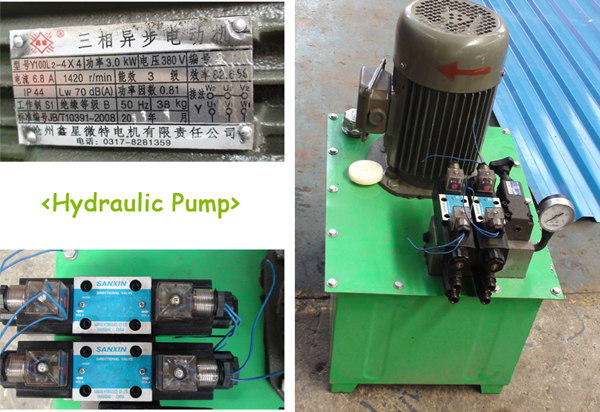

- Hydraulic Pump Power
- 3 kW
- Side Panel Thickness
- 14 mm
- Main Frame
- 350H Steel
- Power Supply
- 380V / 50Hz / 3 Phase
Materials and Components
- Roller Material
- Carbon Steel 45#
- Cutting Blade Material
- Cr12 with quenched treatment (60-62 HRC)
- Compatible Material
- Color Steel Plate
System Features
Included Components
- Manual decoiler
- Main roll forming machine
- Post-cut hydraulic system
- PLC control system
- Stacking table

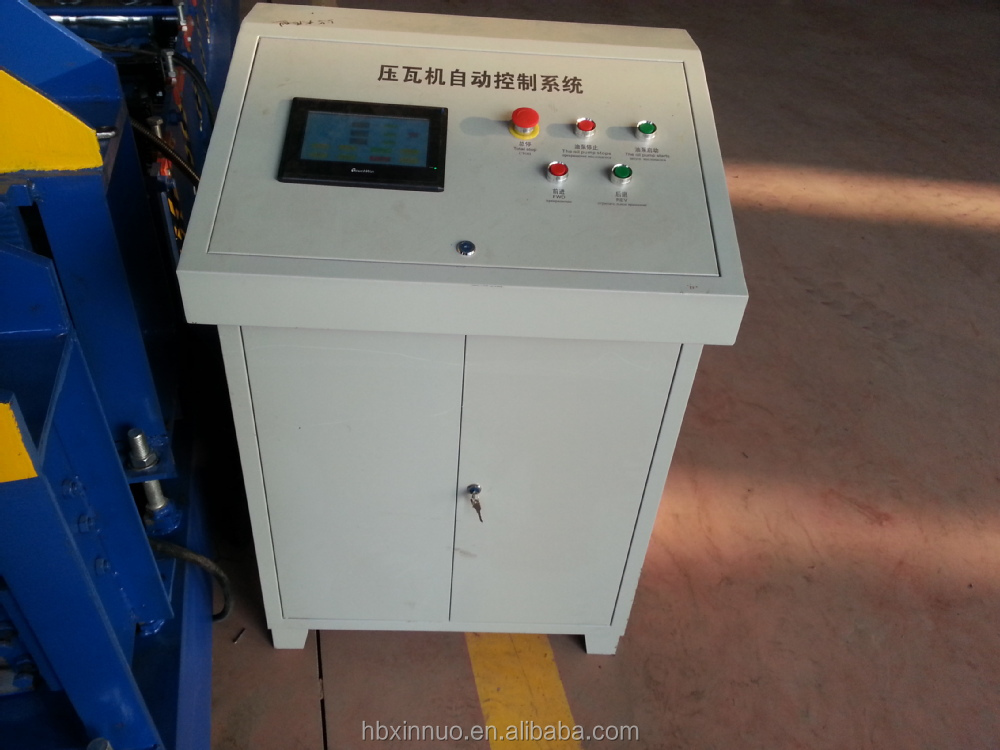

- Control System
- PLC Control (Mitsubishi/Delta/Others)
