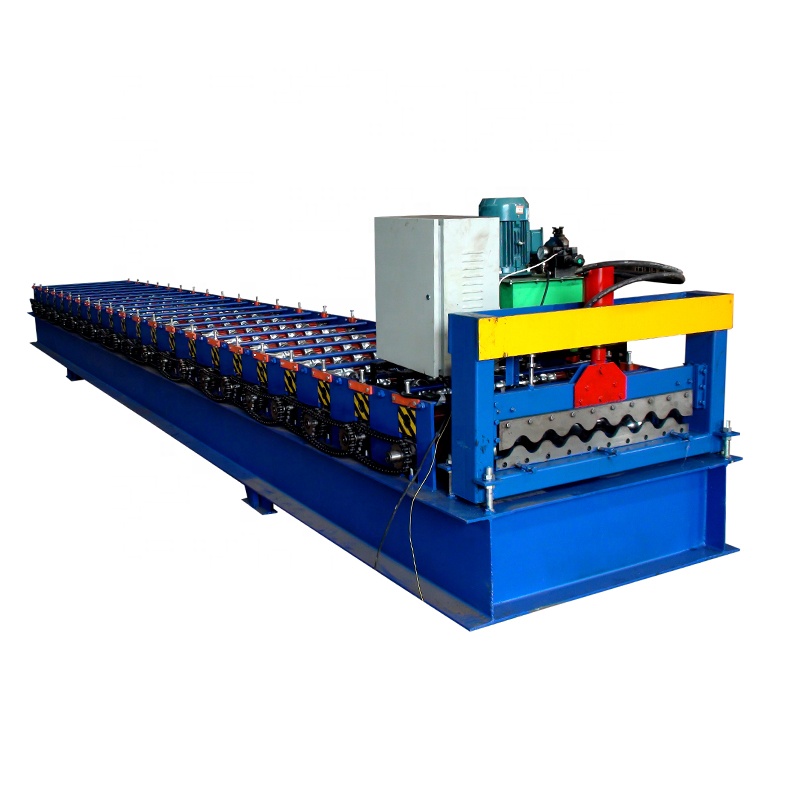

Corrugated Metal Sheet Forming Machine
This machine forms sheet metal into corrugated profiles. It is designed for efficient production of roofing sheets.
Technical Specifications
Overview
High-Efficiency Corrugated Sheet Production

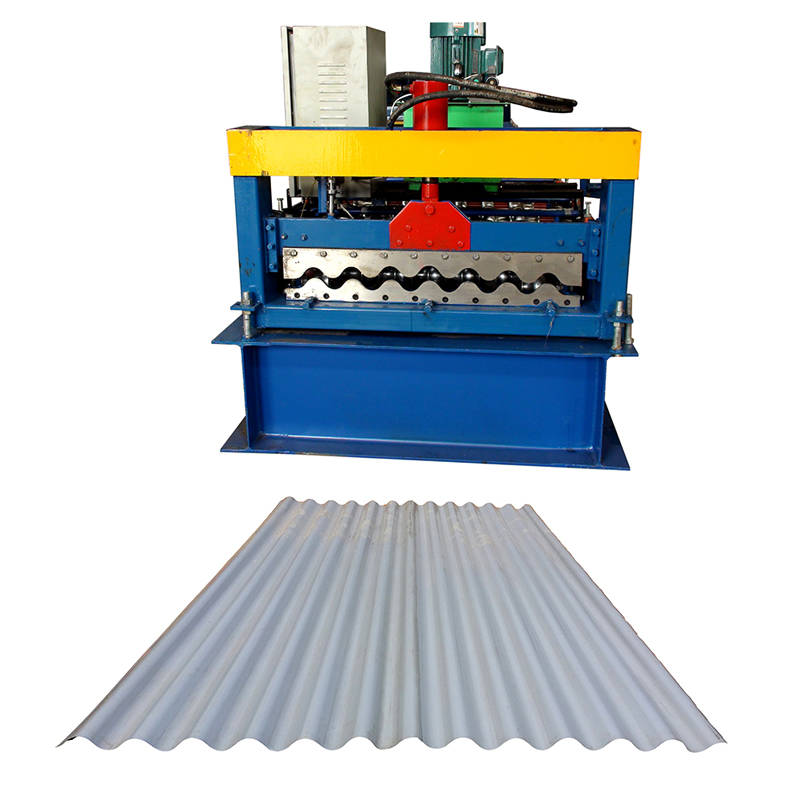

This industrial-grade roll forming machine is engineered for the high-volume production of corrugated metal roofing sheets. Featuring a robust 250mm H-beam main frame and 14 forming stations, it delivers precise and consistent profiles suitable for modern residential and industrial architecture. The system integrates a Delta PLC control unit and hydraulic cutting to ensure streamlined operation and accurate sizing for every sheet.
Key Performance Metrics
Performance Highlights
10 m/min
Forming Speed
14 stands
Roll Stations
4 T
Total Weight
Technical Specifications
Material Capacity
| Parameter | Value |
|---|---|
| Feeding Width | 1200mm |
| Feeding Thickness | 0.3-0.8mm |
| Forming Size | 988mm |
| Roller Diameter | 80mm |
System Configuration
Included Components
- Manual Uncoiler
- Guiding Platform
- Coil Strip Leveler
- Main Roll Forming Machine
- Electro-Motor
- Hydraulic Cutting Device
- Hydraulic Station
- PLC Control System
- Supporter Table
Power & Control
Control System
PLC Delta Inverter
- Power Supply
- 380V, 3-Phase, 50Hz
- Main Motor Power
- 3 kw
- Hydraulic Pump Power
- 3 kw
Construction & Materials
Component Standards
| Component | Material/Spec |
|---|---|
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Backboard Thickness | 14mm |
| Chain Size | 20mm |
Physical Dimensions
- Overall Dimensions
- 7500 × 1600 × 1500mm
Application
- Common Applications
- Industrial WorkshopsWarehousesResidential RoofingHigh-rise ConstructionMetal Siding
