Automatic Rubber Block Cutting Machine

This rotating-disc type cutting machine is designed for cutting rubber blocks into smaller pieces. It can process natural, compound, reclaimed, and synthetic rubber into blocks, slices, granules, and bars.

Request a Quote Download PDFPDF

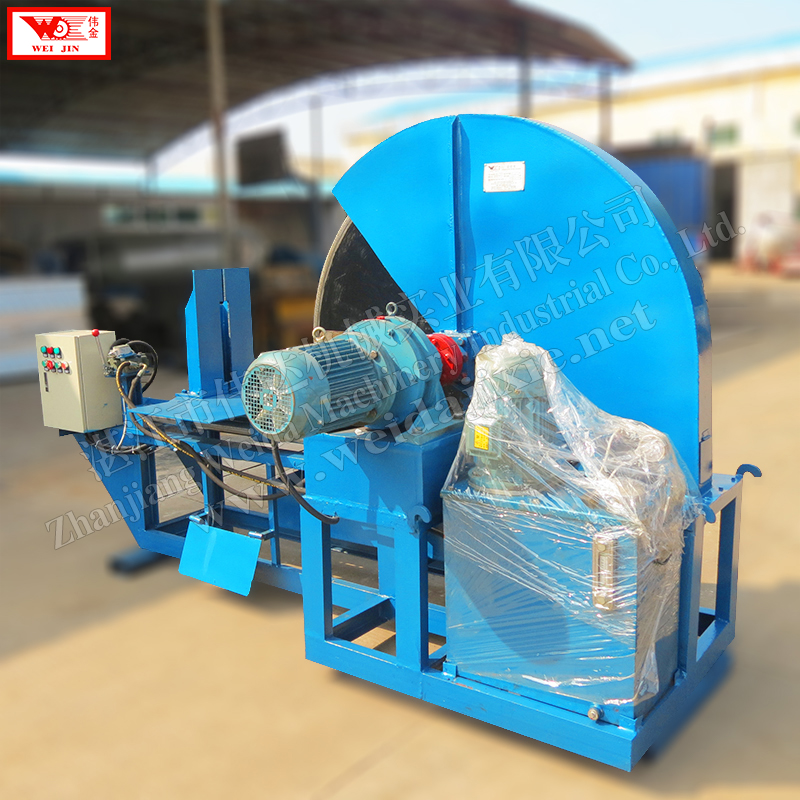

automatic rubber shearing machineZhanjiang Weida manufacturereasy operated & low manual - Image 1

Technical Specifications

Overview

High-Efficiency Rotating-Disc Rubber Cutter

This automatic rubber shearing machine features a modern rotating-disc design specifically engineered for processing natural, compound, reclaimed, and synthetic rubber. It offers versatile cutting capabilities, transforming large rubber bales into smaller blocks, slices, granules, or bars with minimal manual effort. Designed for industrial-scale production, it combines robust hydraulic power with a self-lubricating system to ensure long-term reliability and reduced friction during heavy-duty operation.

Automatic rubber shearing machine front view — The automatic rubber shearing machine is designed for high-volume processing with minimal manual intervention.

Key Features

Compatible Materials

Natural Rubber
Compound Rubber
Reclaimed Rubber
Synthetic Rubber
Other plastic/rubber materials

Operational Benefits

Easy OperationLow Manual LaborHigh OutputSelf-Lubricating

Cutting Capabilities: BlocksSlicesGranulesBars

Raw material and finished rubber products — Demonstration of raw rubber blocks processed into uniform smaller pieces.

Technical Specifications

Model Specifications

Model	Blade Diameter	Rotational Speed	Power	Working Pressure	Production Capacity
WQJ-1000	1000mm	50r/min	4+2.2kw	5Mpa	2t/h
WQJ-1300	1300mm	50r/min	4+2.2kw	5Mpa	3t/h

Performance Highlights

5 Mpa

Working Pressure

50 r/min

Blade Speed

3 t/h

Max Capacity

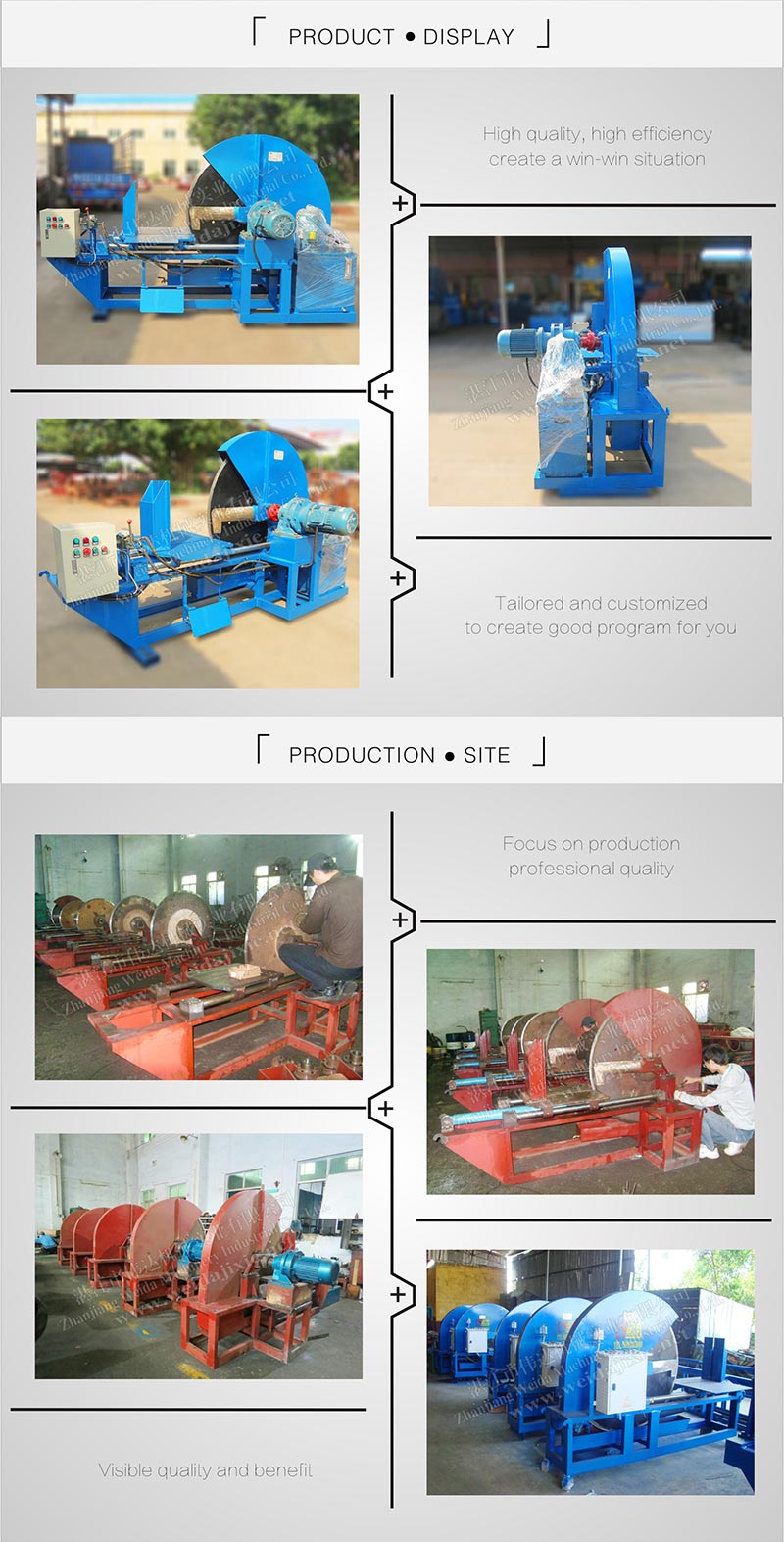

Production site and machine display — The machine in a professional production environment showing its robust industrial build.

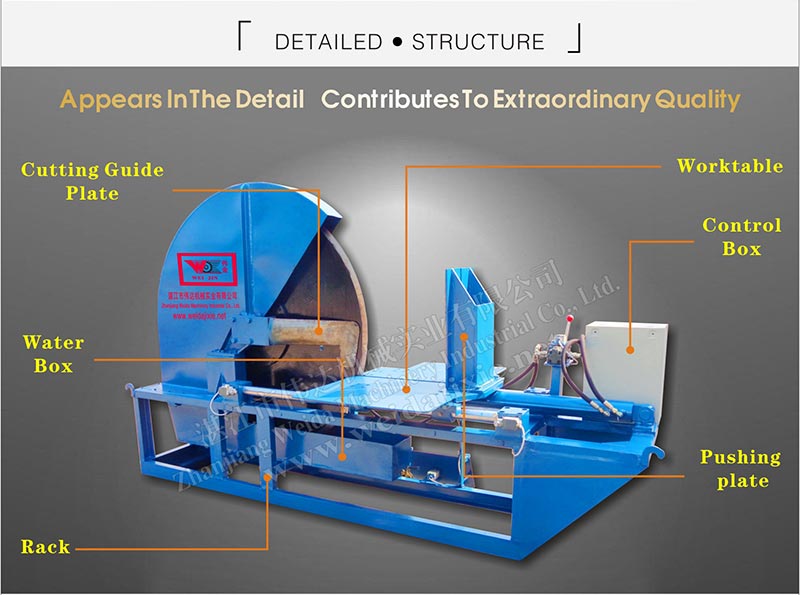

Design & Structure

Main Components

Cutting Guide Plate
Worktable
Water Box
Control Box
Pushing Plate
Rack

Hydraulic Rotating Blade System

The machine utilizes a rotating blade to cut rubber bales synchronized with the reciprocating motion of the worktable. The entire movement is driven by a hydraulic system using oil as the medium, which provides the necessary force for clean cuts while ensuring internal components remain lubricated to extend service life.
