Technical Specifications
Overview

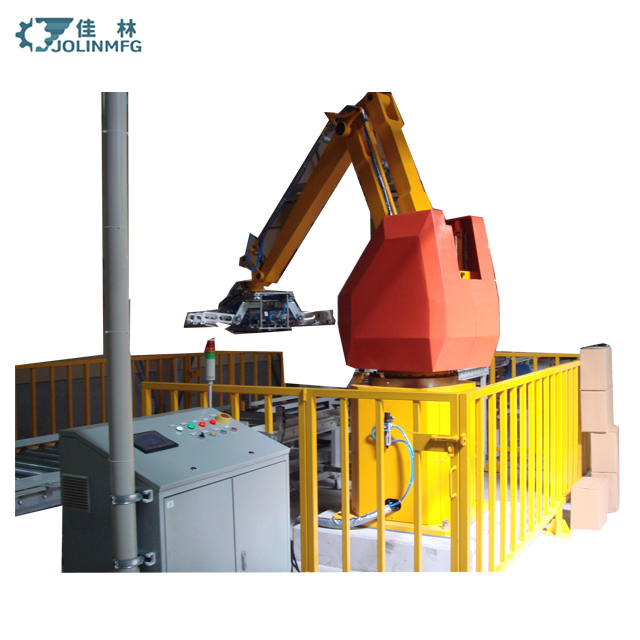

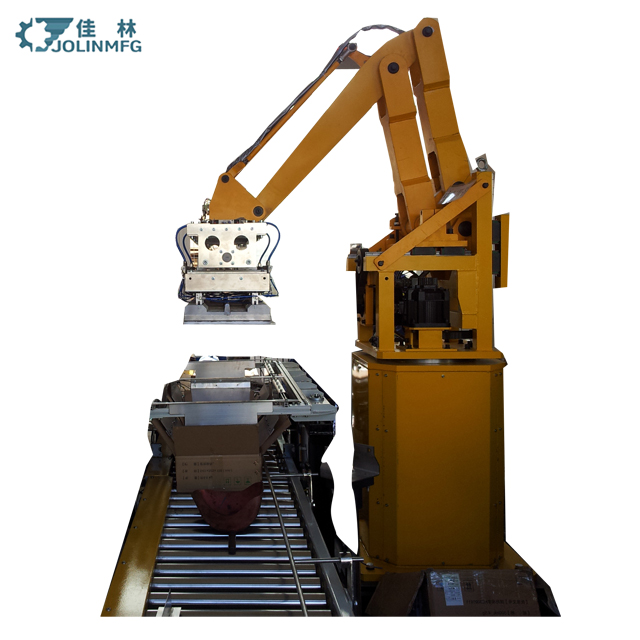

Automatic Pallet Dispenser & Magazine
This high-performance automatic pallet dispenser is designed to streamline end-of-line packaging and material handling operations. The system integrates advanced group organizing, palletizing, and pallet storage capabilities to automate the stacking and unstacking process. Engineered with a robust PLC-based control system and pneumatic operation, it ensures consistent, reliable performance in demanding industrial environments.
Performance Metrics
Throughput Capacity
15 cartons/min
Minimum Rate
30 cartons/min
Maximum Rate
- Noise Level
- 75 db
Technical Specifications
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
- Power Supply
- 380V AC, 50Hz
- Power Consumption
- 10 kW
- Pneumatic Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
System Components
System Modules
- Group organizing & pushing machine
- Palletizing machine
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
- Control Interface
- PLCTouch ScreenPneumatic System
