Technical Specifications
Product Overview

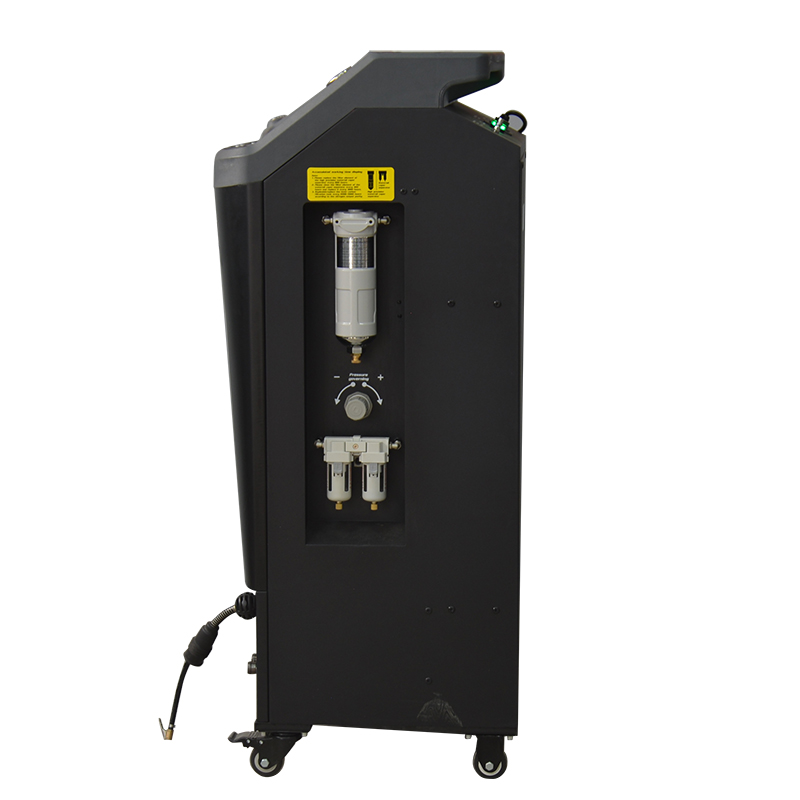

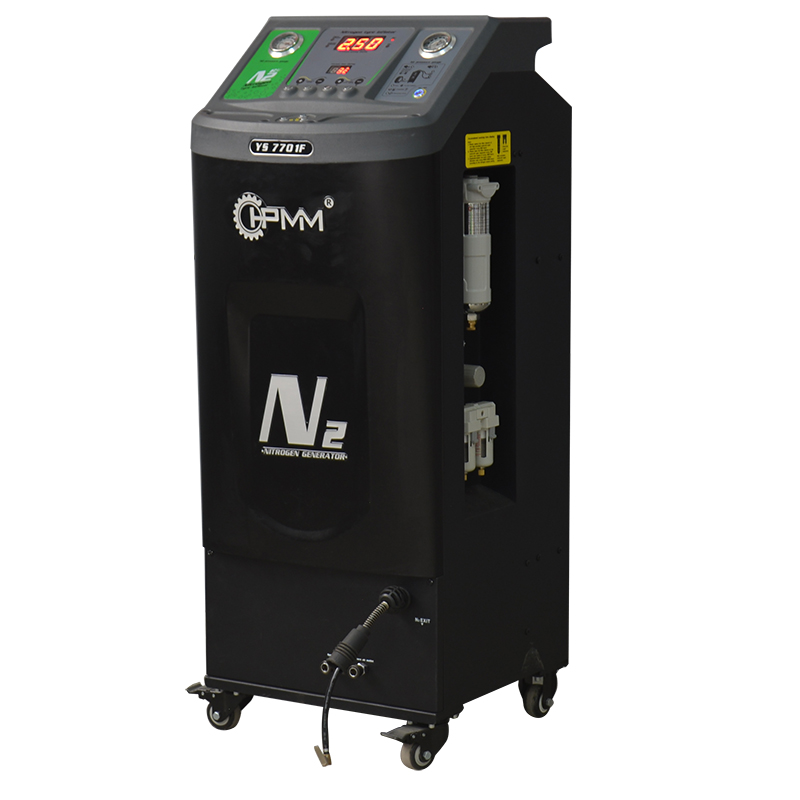

Professional Nitrogen Inflation System
The Explorer Series Nitrogen Generator and Inflator is a professional-grade, fully automatic solution designed for efficient tire maintenance. Featuring advanced vacuum generation and integrated water/oil vapor separation, this portable system ensures high-purity nitrogen inflation for light truck and truck tires. Its robust construction and user-friendly LCD interface make it an essential tool for automotive service centers seeking reliability and precision.
Performance Metrics
Key Performance Metrics
99 %
Max Nitrogen Purity
50 L/min
Max Output Capacity
50 L
Tank Capacity
Technical Specifications
- Power Supply
- AC220V/1PH/50Hz
- Air Inlet Pressure
- 9-10 bar (130-145 psi)
- Nitrogen Output Pressure
- 1-6 bar (15-87 psi)
- Required Air Compressor
- 5.5-7.5kw, 10bar, 1-1.5m³/Min
Features & Equipment
Included Components
- 10M Hose Reel
- Water/Oil Filter & Separator
- High Precision Filter
- System Features
- Full-AutomaticPortableVacuum GenerationLCD DisplayAutomatic Water Drainage
Compatibility
Suitable For
CarLight TruckTruck
