Technical Specifications
Overview

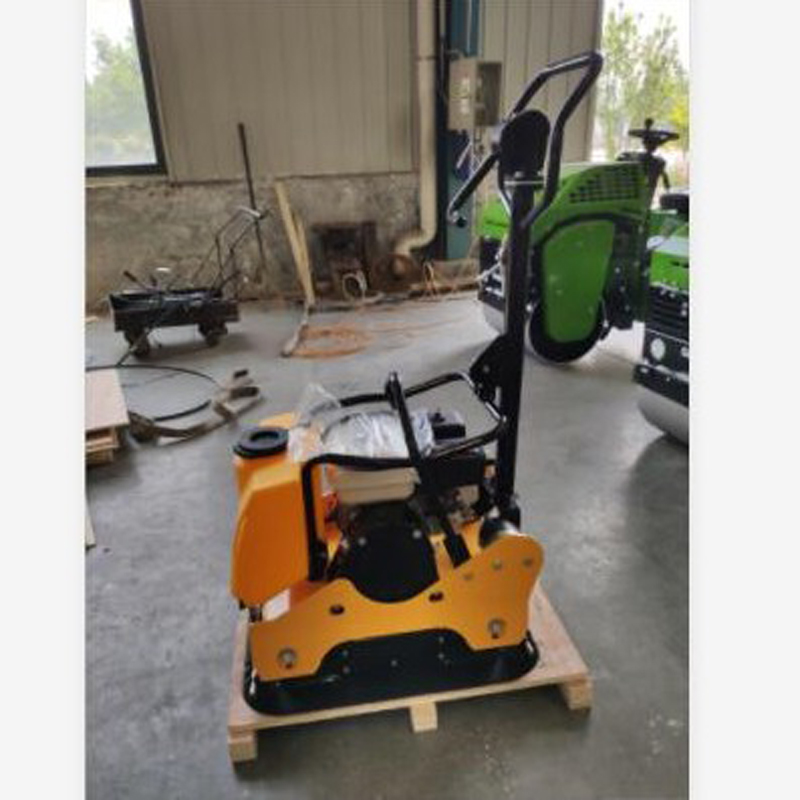

High-Performance Plate Compactor
This professional-grade plate compactor is engineered for robust soil, gravel, and asphalt compaction in demanding construction environments. Featuring a powerful gasoline engine and a durable manganese alloy steel base plate, it offers excellent maneuverability for narrow laneways, trenches, and road foundations. Designed for longevity, it includes premium components like NSK bearings and MITSUBOSHI V-belts to ensure reliable, consistent performance on every job site.
Performance Metrics
Compaction Capabilities
30 kN
Exciting Force
75 Hz
Vibrating Frequency
0.5 mm
Nominal Amplitude
23 m/min
Max Walking Speed
- Theoretical Climbing Capacity
- 25 %
Engine Specifications
Engine Configuration
| Attribute | Specification |
|---|---|
| Engine Type | Gasoline, Air cooled, 4 stroke, OHV, single cylinder |
| Power Output | 5.5 hp / 3600 rpm |
| Oil Tank Volume | 3.6 L |
Physical Dimensions
Physical Specs
- Plate Size: 710 x 430 mm
- Total Dimensions: 1480 x 400 x 1200 mm
- Weight: 165 kg
- Water Tank Volume: 12 L
Features
- Key Features
- Hydraulic ReversingManganese Alloy Steel PlateAnti-FrictionAnti-VibrationAnti-Corrosion Treated
