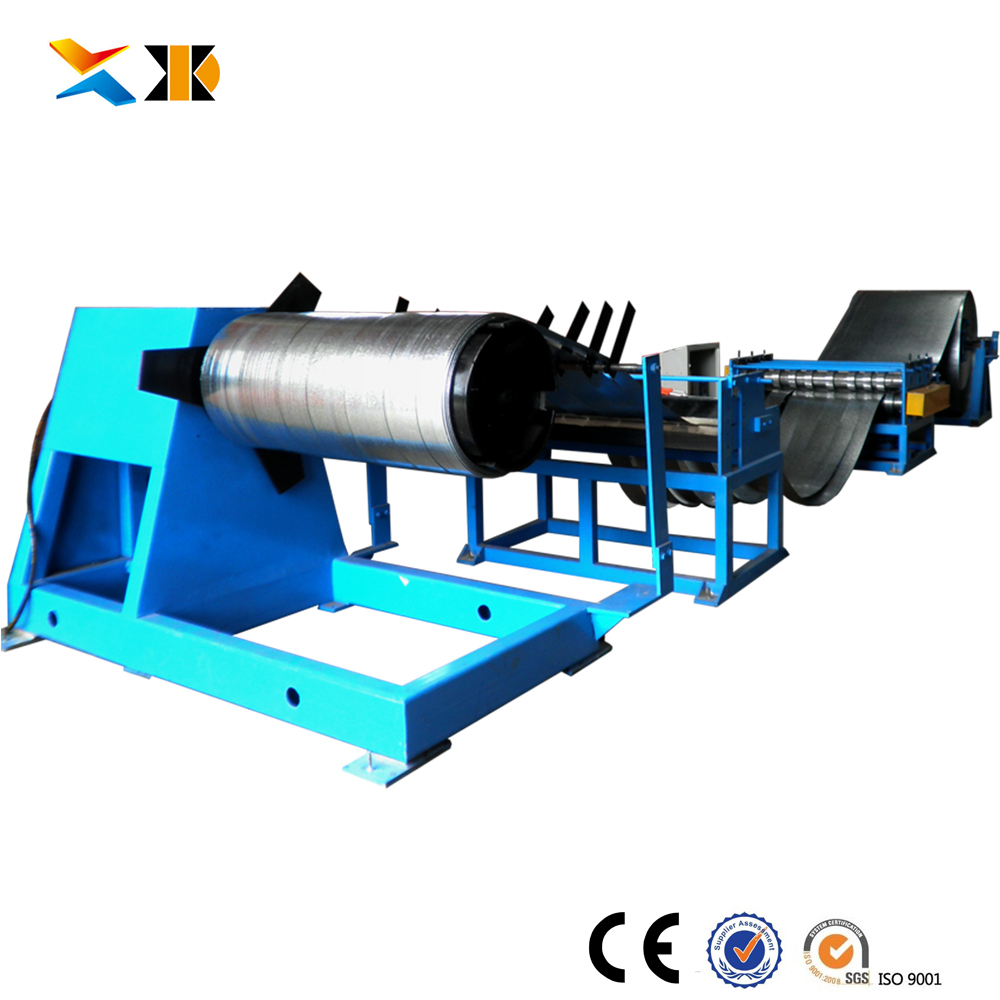

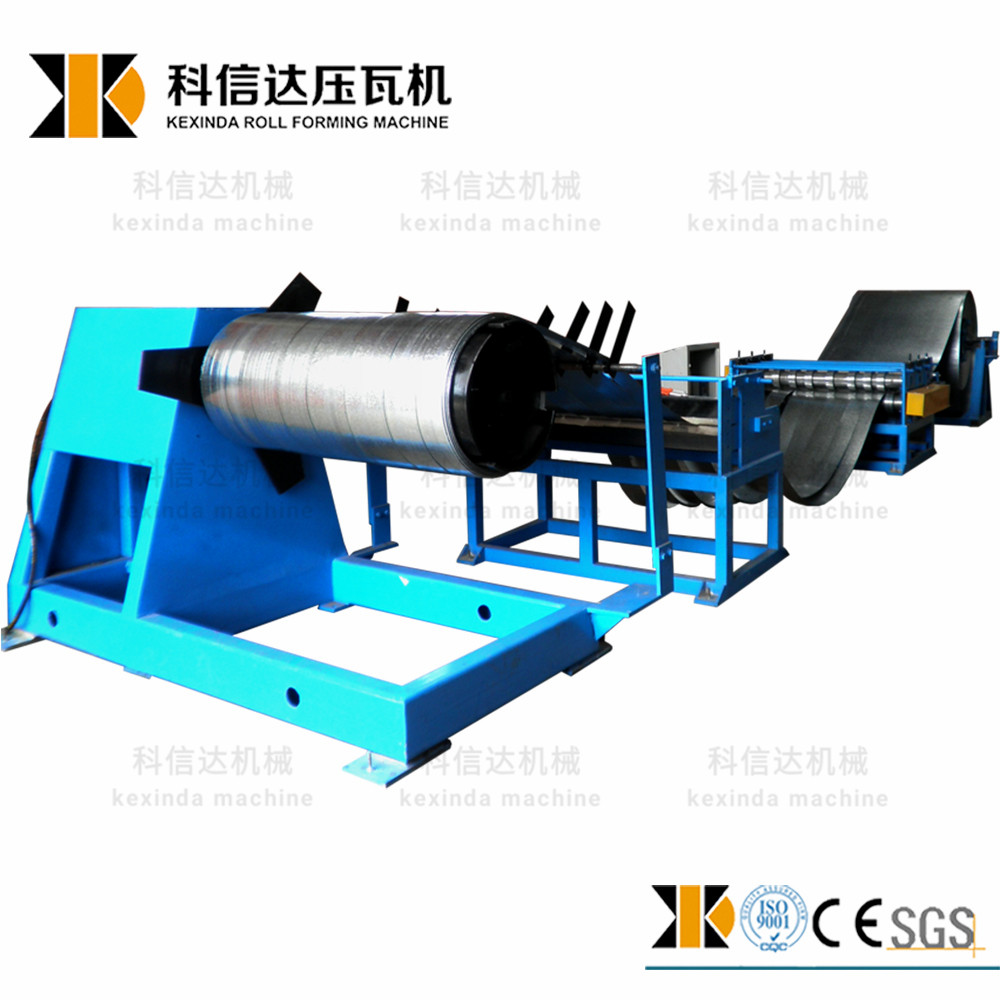

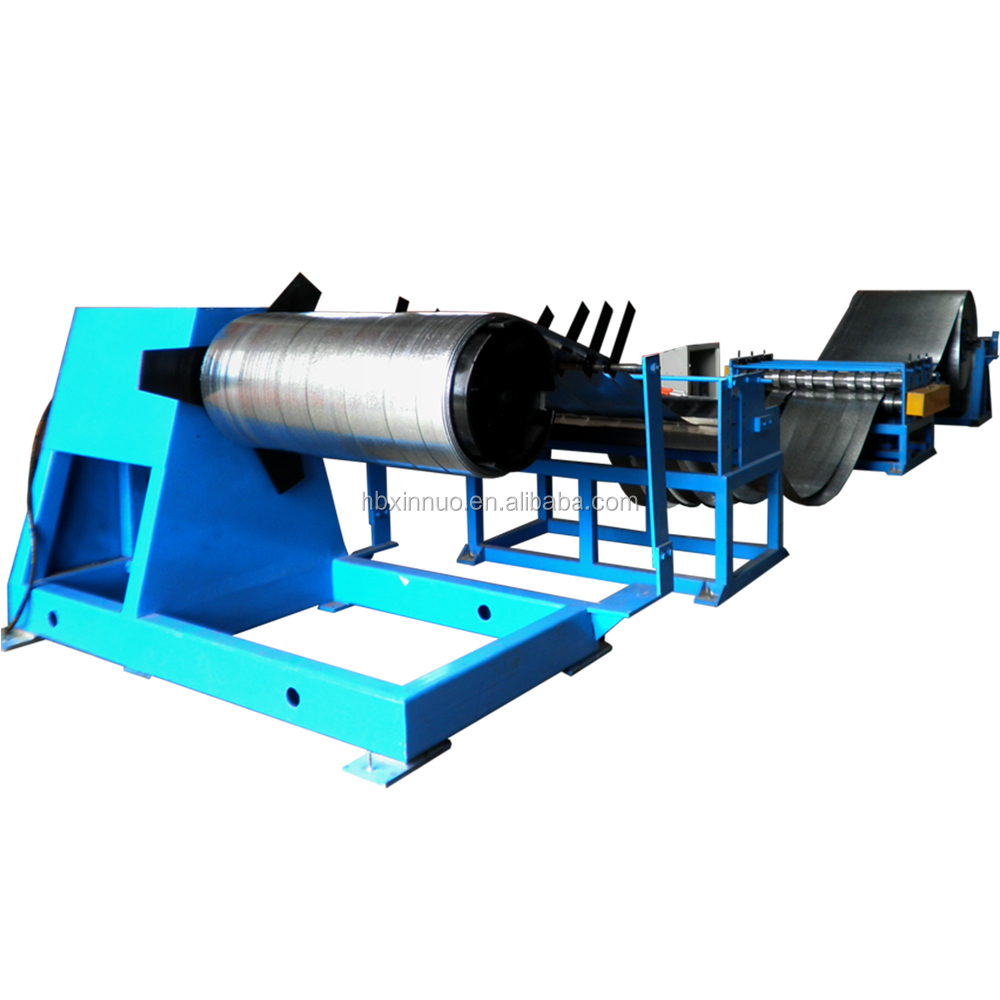

Automatic Metal Coil Slitting Line
The automatic metal coil slitting line is engineered for efficiently cutting metal coils into narrower strips. It features a decoiler, slitter, and recoiler for streamlined operation and precise cutting.
Technical Specifications
Overview
High-Efficiency Metal Coil Slitting Line
This automatic metal coil slitting line is engineered for precision and high-volume processing of various metal materials, including steel, GI, and PPGI. The system features a fully integrated workflow covering decoiling, leveling, slitting, cutting to length, and recoiling. Designed with robust construction and advanced control systems, it offers high efficiency, minimal material waste, and tight tolerance control for professional industrial applications.
Technical Specifications
- Power Rating
- 11 kW
- Electrical Supply
- 380V 50Hz 3 Phase
- Width Tolerance
- Within 0.05mm
- Total Line Weight
- 5 tons
Capacity & Compatibility
- Coil Inner Diameter Range
- 450-650mm
- Max Coil Outer Diameter
- 1500 mm
- Compatible Materials
- SteelGIPPGIAluminumCopper
Process Flow
Operational Workflow

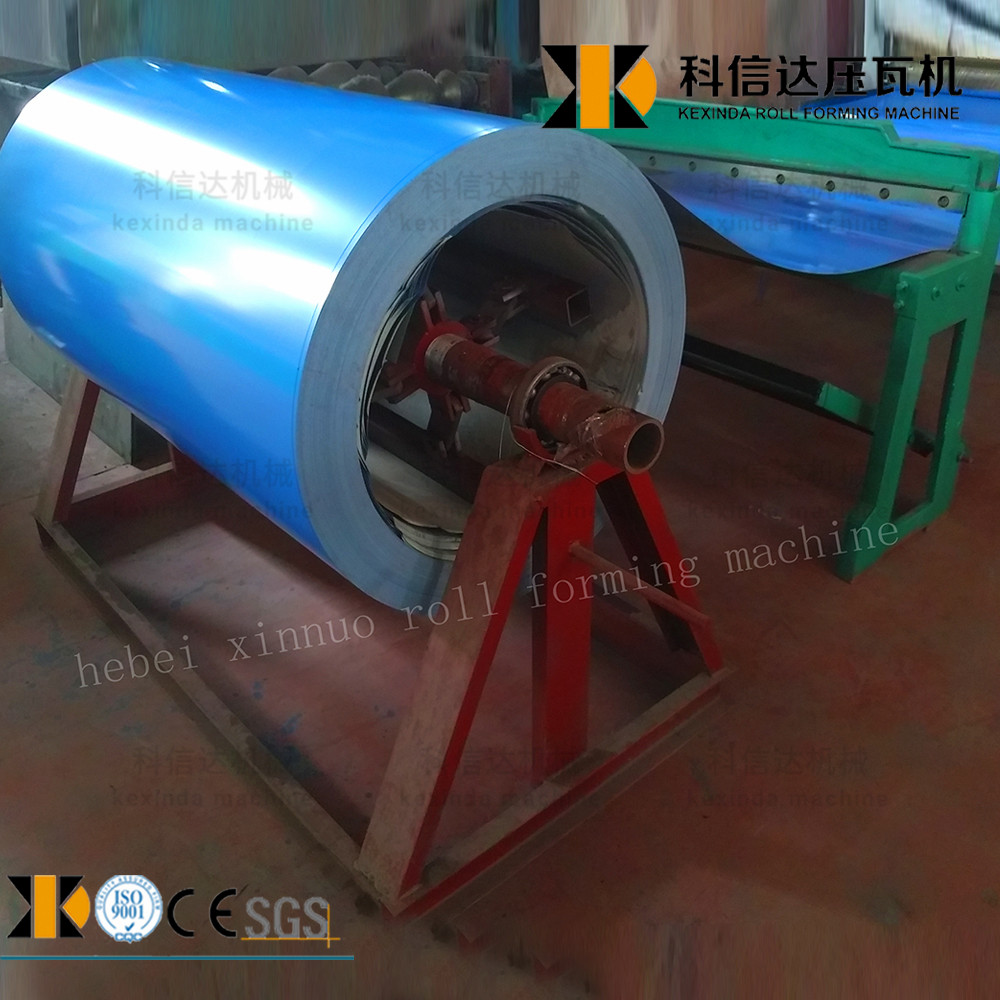

- Decoiling
- Leveling

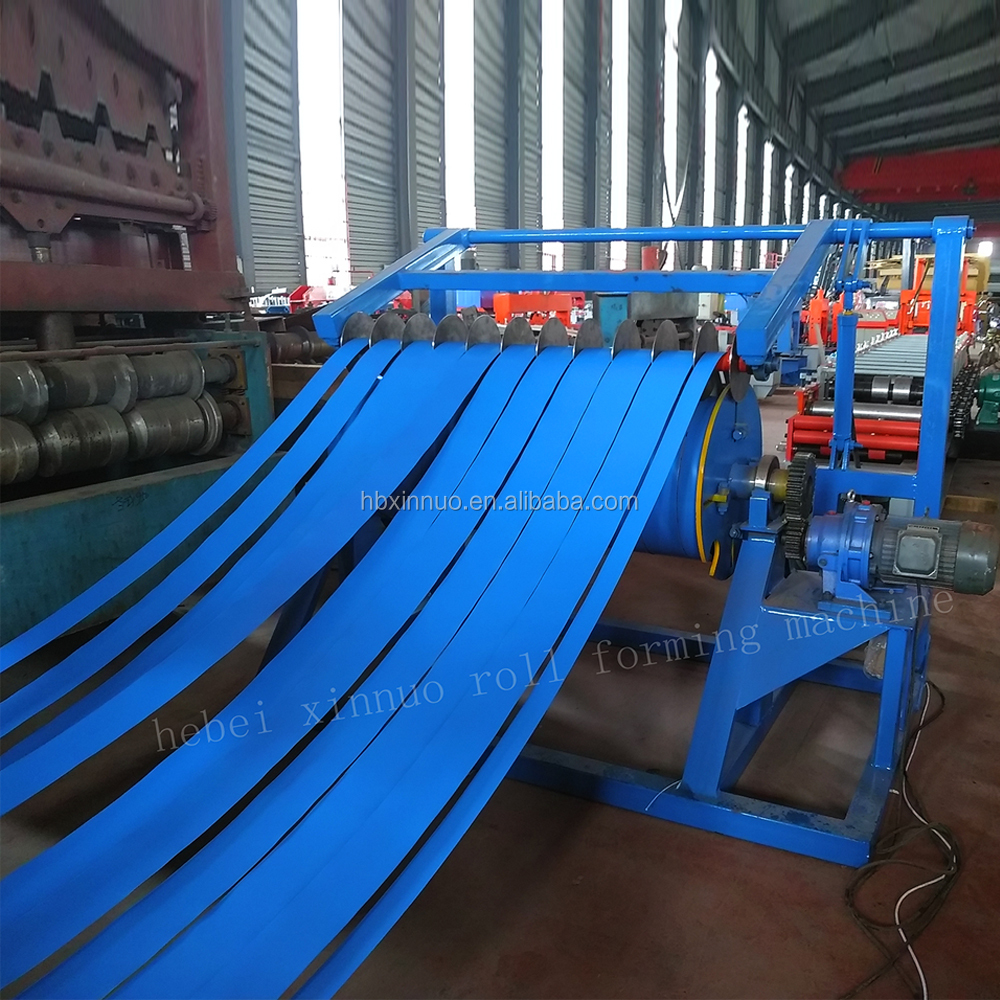

- Slitting
- Cut to length
- Recoiling
Certifications
Compliance & Quality
CEISO 9001
