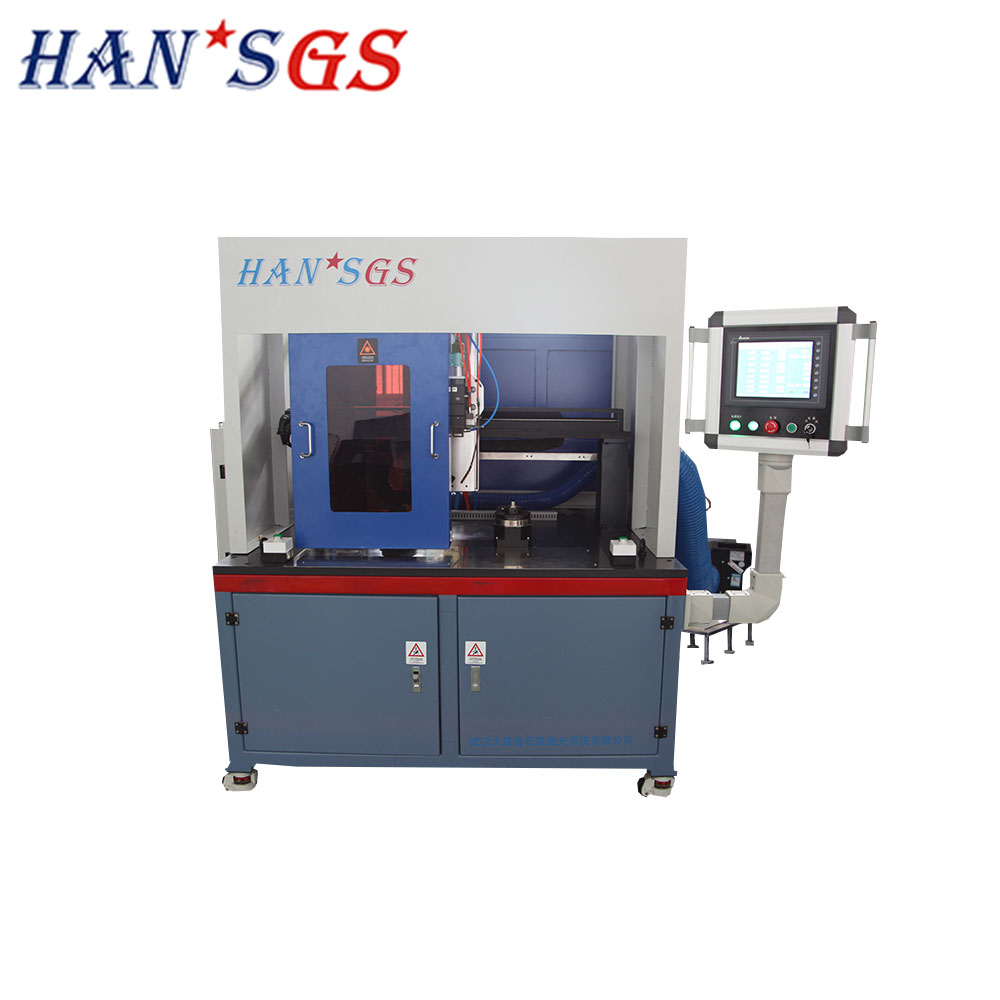

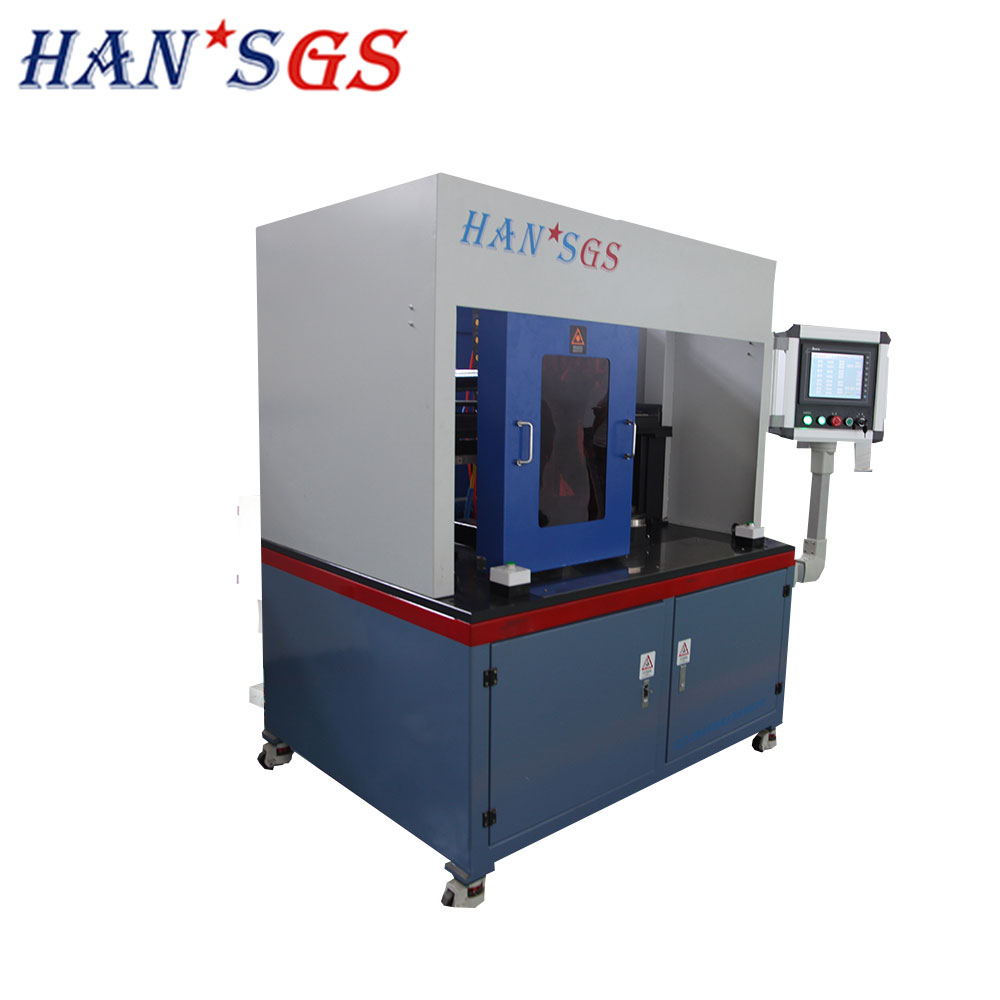

Automatic Laser Welding Machine for Gear Ring Seams
This welding machine features a four-station tray for feeding, processing, welding, and cutting. It is designed with specific carriages to facilitate product specification changes and automated operations.
Technical Specifications
Overview
High-Efficiency Automated Welding
This automatic laser welding machine is engineered for precision gear ring seam welding and high-volume industrial applications. Featuring a four-station tray system for continuous feeding, processing, welding, and cutting, it ensures seamless automated production. The system integrates advanced temperature detection and segmented welding technology to deliver consistent, high-quality results while minimizing deformation.
Key Features
Automation Features
- Four-station tray system (feeding, processing, welding, cutting)
- Two-dimensional loading and unloading device
- Integrated preheating and conveyor design
- Segmented welding detection for automatic start-point determination
- Weld infrared temperature detection
- Easy manual and automatic welding mode switching
Performance Metrics
Performance Specifications
2,500 W
Power Range Min
3,500 W
Power Range Max
3 m/min
Welding Speed Min
6 m/min
Welding Speed Max
1 mm
Welding Penetration
Technical Specifications
System Components
| Component | Specification/Model |
|---|---|
| Host Model | GS-HZ03 |
| Laser Generator | IPG1000W |
| Control System | PLC |
| Linear Guide/Screw | HIWIN |
| Cooling System | HC050M |
| Temp/Humidity Control | 250W |
Servo Motor Configuration
- X-axis: 400KW, 150mm stroke
- Z-axis: 400W with brake, 300mm stroke
- C-axis: 400KW, 360 degree rotation

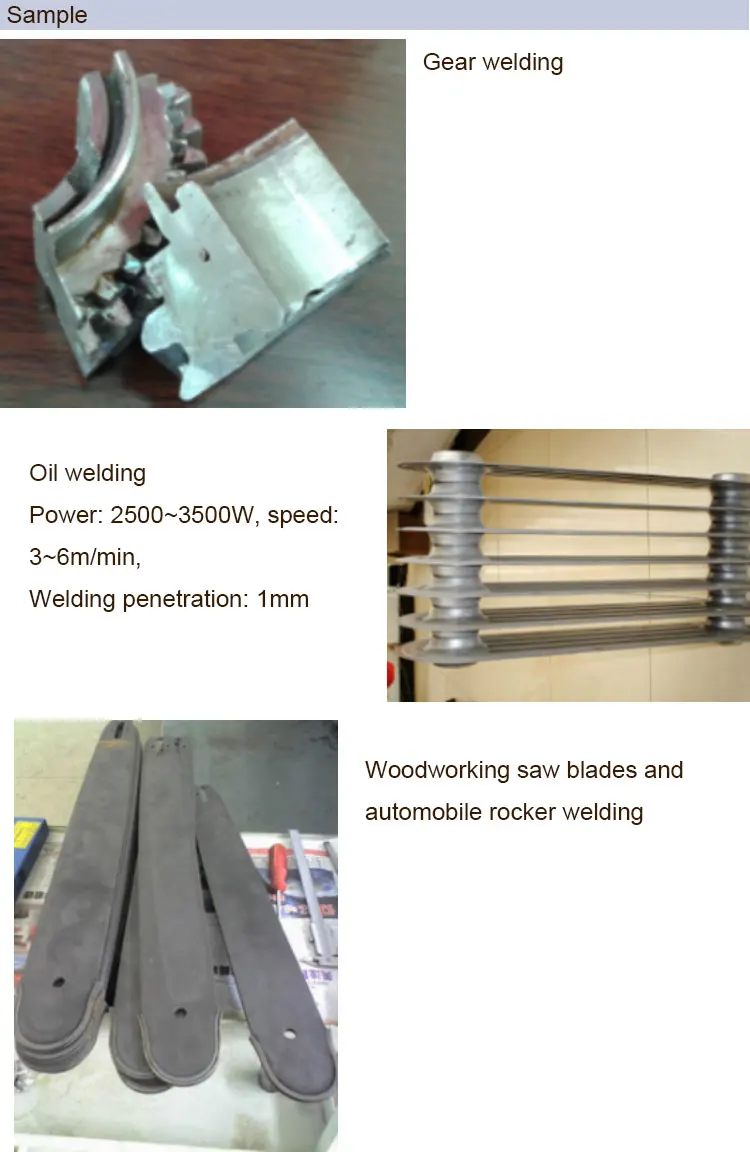

Applications
- Suitable Applications
- Gear Ring SeamsGear ShaftsWoodworking Saw BladesAutomobile Rocker Welding
