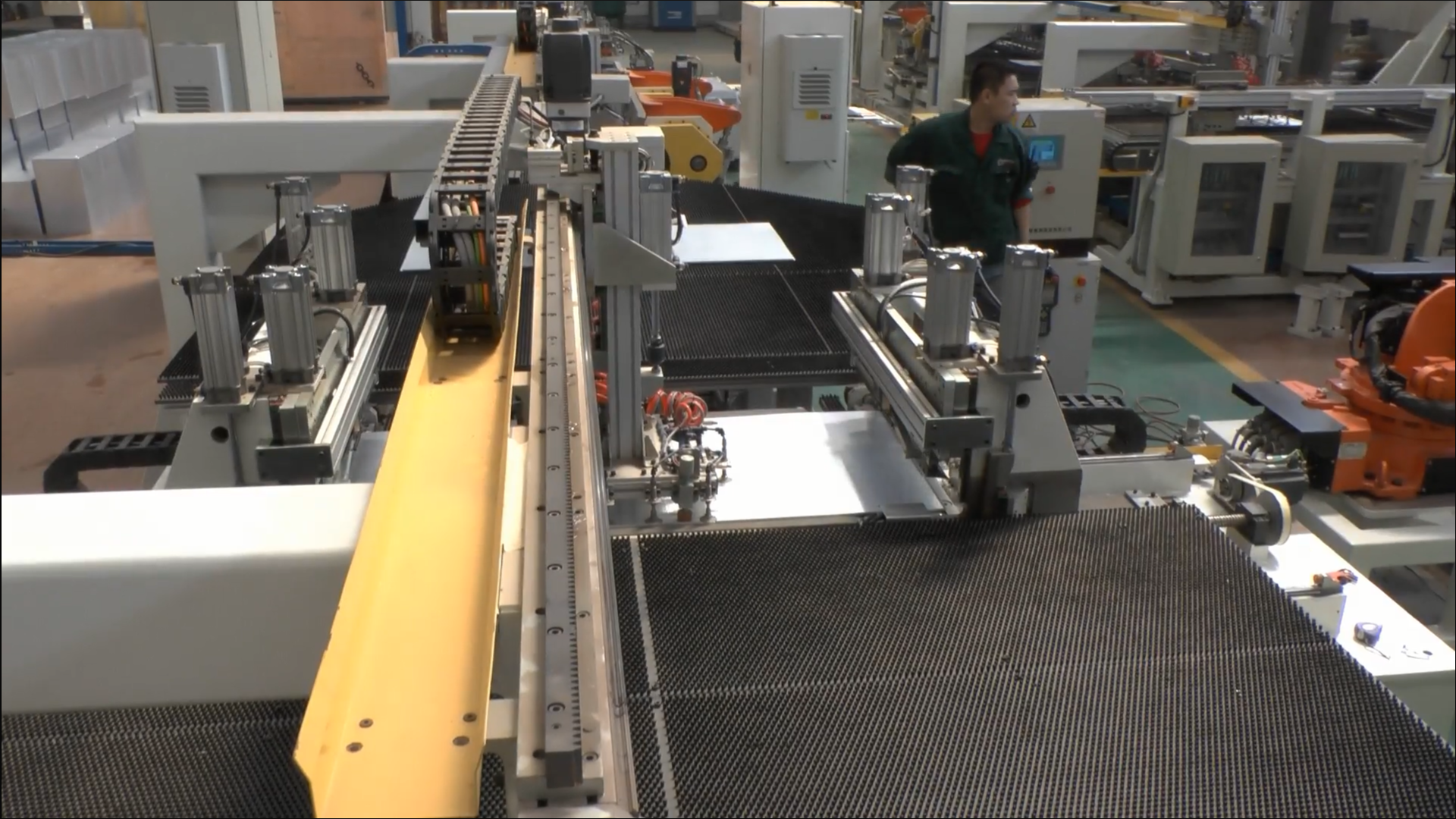

Automatic Inner Liner Production System for Chest Freezers
This system provides fully automatic production of chest freezer inner liners without the need for manual operators. It delivers high-speed output and ensures consistent product quality with automatic changeover capabilities.
Technical Specifications
System Overview
High-Efficiency Production System
This automatic production system is engineered for the high-speed manufacturing of chest freezer inner liners. It utilizes a fully integrated process flow, from component production and assembly to automatic tube winding and welding. Designed for industrial scalability, the system features advanced buffering and automated model identification to ensure consistent output and minimal downtime during model changes.
Performance Metrics
Capacity
20 s
Cycle Time per Liner
900 pcs
Buffer Capacity (Min)
12 models
Models Handled per Day
Operational Flexibility
Model Changeover Times
| Section | Condition | Time |
|---|---|---|
| Metal/Assembly Line | General | 60s |
| Winding Section | Width/Length diff < 100mm | 60s |
| Winding Section | Complete plug change | 3-4min |
- Min. Loading Quantity
- 50 pcs
Key Features
- Core Capabilities
- Automatic Glue ApplicationResistance WeldingAutomatic Shuttle SystemAutomatic Model IdentificationCorner FlangingAutomated Buffer Storage
Equipment List
Included Machinery
- Automatic line for left side inner liner production
- Automatic line for right side inner liner production
- Automatic line for bottom production
- Automatic machine for side parts assembly
- Automatic machine for cabinet and bottom assembly
- Automatic shuttle system for clinching lines loading
- Automatic clinching line
- Conveyor system
- Automatic winding machine
- Welding machine
- Automatic buffer storage
