Technical Specifications
Overview
High-Efficiency Mask Production

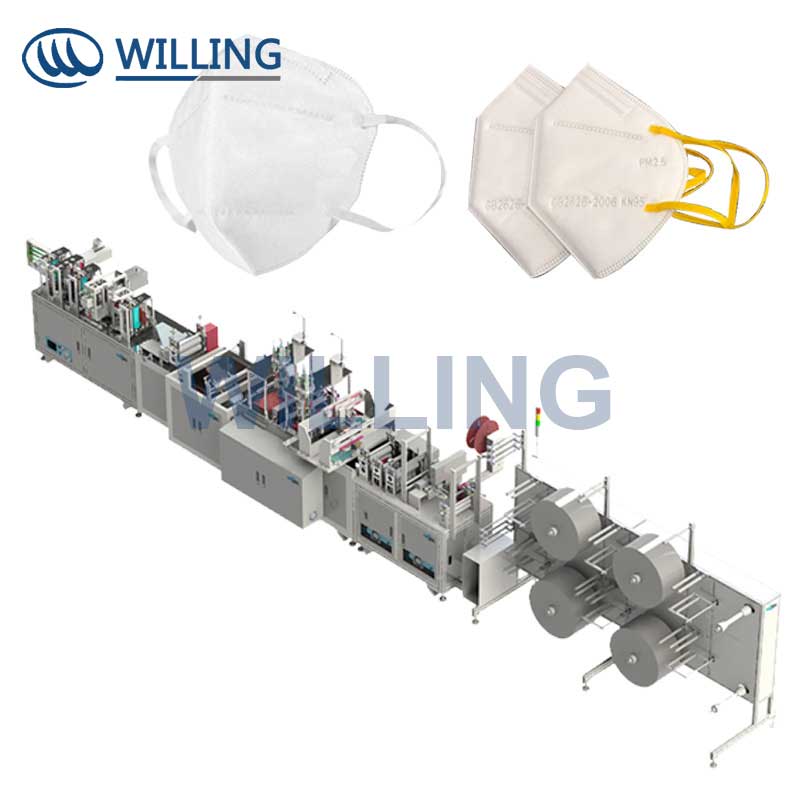

This fully automatic folding mask production line is engineered for the high-speed manufacturing of folding-style masks, such as N95 and KN95 models. The system integrates multi-layer fabric feeding, nasal line insertion, ear loop welding, and precision folding into a seamless, automated process. Utilizing PLC and touch-screen controls, it ensures stable, high-output production with minimal defect rates, making it an ideal solution for industrial-scale medical and protective gear manufacturing.
Performance Metrics
Production Speed
45 pcs/min
Minimum Speed
60 pcs/min
Maximum Speed
- Defective Rate
- 2 %
Technical Specifications
- Mask Size
- 155*106mm
- Mask Structure
- 4-5 layers
- Compatible Materials
- PP non-woven composite fiberFilter layer
- Composite Approach
- Ultrasonic welding
Electrical & Pneumatic
- Power Supply
- AC380V, 3phase, 50/60Hz
- Power Consumption
- 15 Kw
- Demand Pressure
- 0.5-0.7Mpa
Physical Dimensions
- Dimensions (L*W*H)
- 12000*1500*1900mm
- Machine Weight
- 2500 kg
Operating Environment
Requirements
- Temperature: 10-35℃
- Humidity: 5-35% HR
- Non-flammable environment
- No corrosive gas
- Cleanliness: no less than 100000
