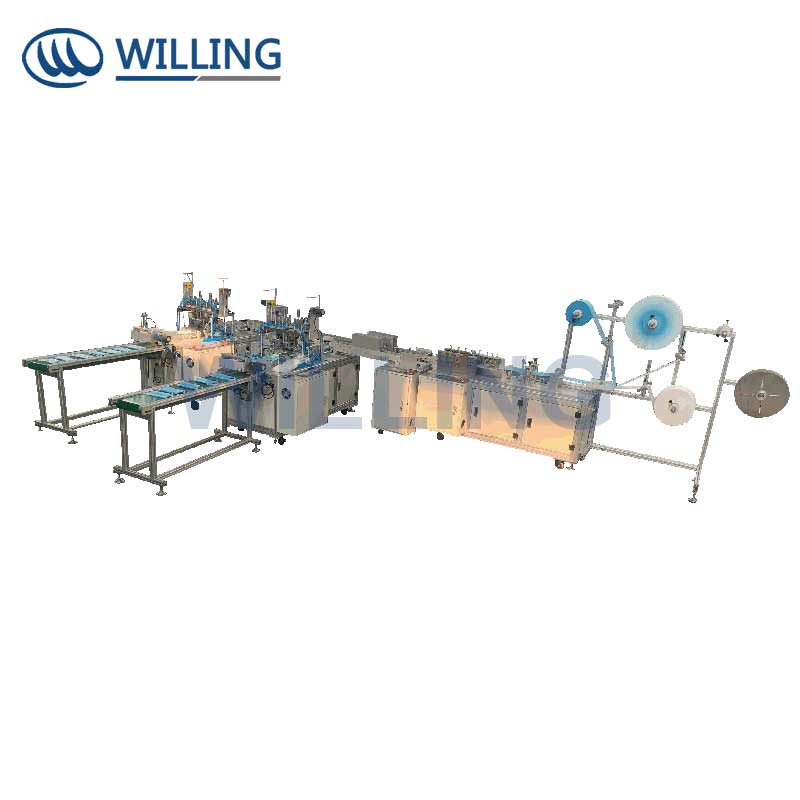

Automatic Disposable Face Mask Production Machine
This automatic machine produces disposable face masks at a high rate. It uses precision rollers to feed and fold material, ensuring consistent mask dimensions and quality.
Technical Specifications
Overview
High-Efficiency Mask Production
This automatic flat mask machine (1+2) utilizes advanced servo and constant temperature control systems to automate the entire production process from material compounding to final ear loop welding. Designed for industrial-scale manufacturing, it achieves high production speeds of 80-120 pieces per minute with a qualified rate exceeding 98%. The system is optimized for producing 3-layer flat medical masks using ultrasonic welding technology.
Performance Metrics
Production Speed
120 pcs/min
Max Speed
98 %
Qualified Rate
Technical Specifications
Compatible Materials
- PP non-woven composite fiber
Composite Approach
Ultrasonic Welding
- Mask Size
- 175*95mm
- Power Consumption
- 8 Kw
- Voltage
- AC220V, 50/60Hz
- Demand Pressure
- 0.6 Mpa
Physical Attributes
- Dimensions (L*W*H)
- 6200*3600*1900mm
- Weight
- 1600 kg
- Color
- Metal Warm GrayAluminum Primary
Operational Environment
Environment Requirements
| Parameter | Requirement |
|---|---|
| Temperature | 10-35℃ |
| Humidity | 5-35% HR |
| Cleanliness | No less than 100,000 |
