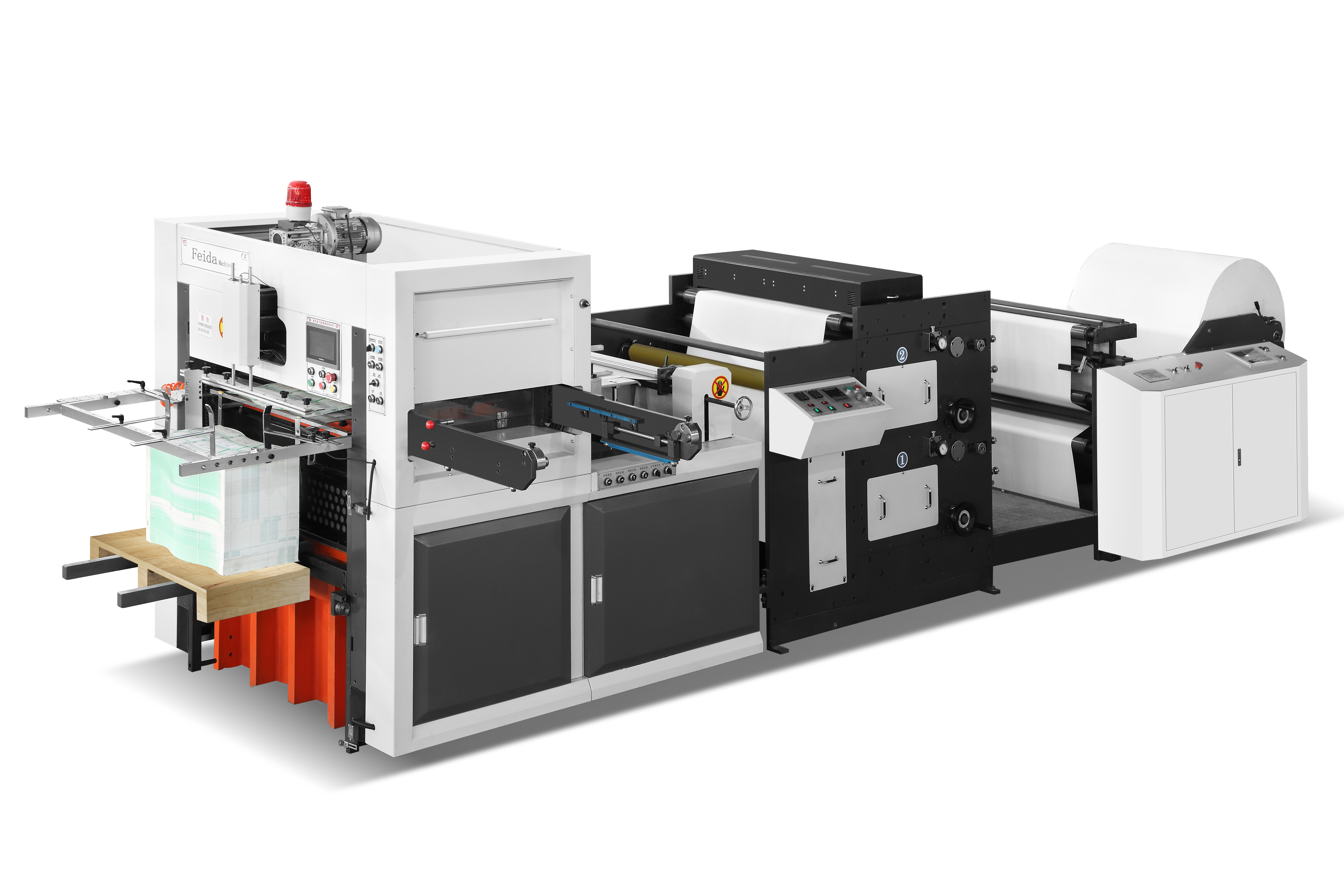

Automatic Die Cutting Machine with 2-Color Printing
This high-speed automatic die-cutting machine integrates a 2-color printing unit for efficient paper and cardboard processing. It features automated feeding, printing, die-cutting, and waste removal mechanisms for high productivity and minimal material wastage.
Technical Specifications
Overview
High-Efficiency Die Cutting and Printing
This automatic die-cutting machine integrates a 2-color printing unit, offering a comprehensive solution for high-speed processing of paper and cardboard. Designed for precision and productivity, it combines automated feeding, printing, and die-cutting into a single, streamlined workflow. Ideal for packaging and label production, it ensures consistent quality while minimizing material waste.
Performance Metrics
Production Capacity
180 times/min
Max Speed
150 T
Max Cutting Pressure
Technical Specifications
- Cutting Precision
- 0.2 mm
- Max Cutting Area
- 940 x 510 mm
- Supported Paper Grammage
- 120-400 g/㎡
- Max Roller Diameter
- 1600 mm
Utilities and Dimensions
Pneumatic Requirements
| Metric | Value |
|---|---|
| Air Pressure Requirement | 0.5 Mpa |
| Air Consumption | 0.25 m³/min |
- Total Power
- 12 KW
- Overall Dimensions
- 6500 x 2200 x 1900 mm
- Machine Weight
- 11 T
