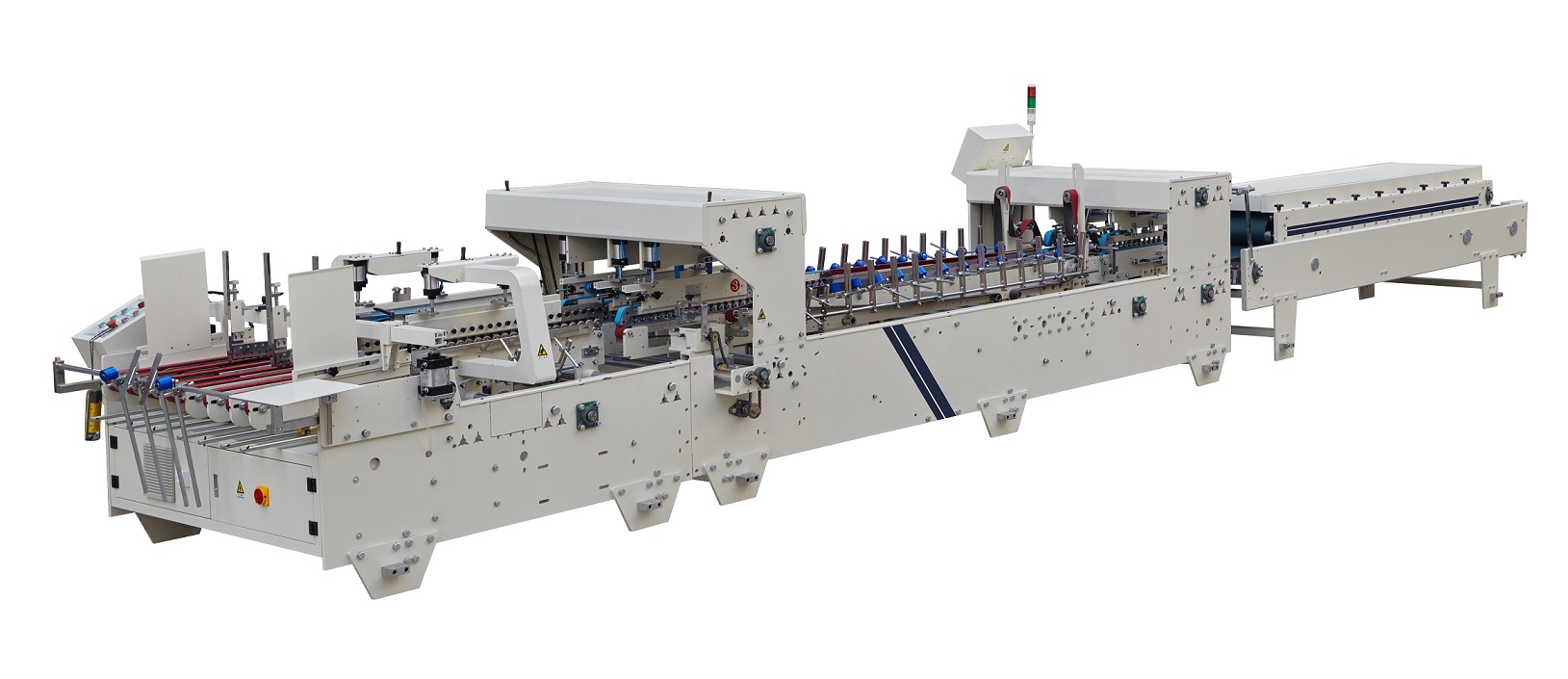

Auto Corrugated Folder Gluer for Cartons
This machine shapes paperboard and applies adhesive after horizontal cutting. It folds and pastes various straight seaming boxes for use in food, medicine, cosmetics, and stationery packaging.
Technical Specifications
Overview
High-Efficiency Corrugated Folder Gluer
This automated folder gluer is designed for high-performance corrugated box production, featuring adjustable feeding belts for stable and smooth material handling. The system includes an advanced alignment section for precision and a lengthened folding section to ensure perfect, rapid forming of cartons. Equipped with an integrated impacting device for neat packing, this machine provides a reliable and cost-effective solution for large-scale packaging needs.
Technical Specifications
Maximum Liner Speed
220 m/min
Speed
- Available Models
- SHH-1050SHH-1250SHH-1450SHH-1650SHH-1850SHH-2050B2A
- Electrical Power
- 8KW, 380V, 50HZ, 3P
Processing Capabilities
Supported Materials
- Cardboard 200-800g
- A-flute
- B-flute
- C-flute
- E-flute
- F-flute
- Folding Capability
- Fold 2 and Fold 4 at 180 degrees
- Glue Material
- Water-base cold glue
Physical Dimensions
Machine Weights by Model
| Model | Weight (KG) |
|---|---|
| SHH-1050 | 3,400 |
| SHH-1250 | 3,800 |
| SHH-1450 | 4,200 |
| SHH-1650 | 4,600 |
| SHH-1850 | 5,000 |
| SHH-2050B2A | 5,400 |
