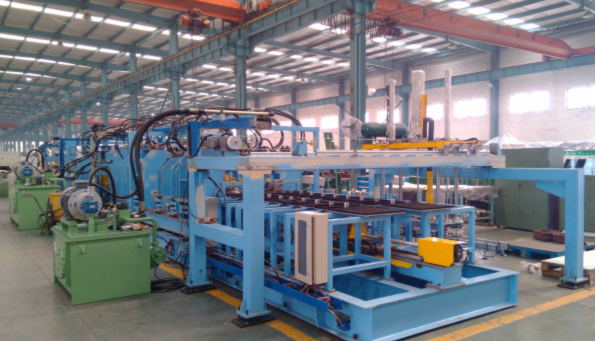

Automated U Shell Forming Line for Freezers
This automated line forms U shells for freezers with minimal operator involvement. It features automatic model changeover for flexible production.
Technical Specifications
Overview
High-Efficiency Freezer Shell Manufacturing
This automated forming line is engineered for the precision production of freezer U-shells and side panels. The system integrates advanced hydraulic, pneumatic, and electrical control modules to deliver consistent quality with minimal manual intervention. Its modular, robust design ensures seamless integration into high-volume manufacturing environments while prioritizing operator safety through automated control and monitoring systems.
System Components
Integrated Modules
- Automatic loading unit
- Punching and benching station
- 180-degree tilting unit
- Long tangential forming module
- Short edge bending forming unit
- Belt conveyor system
- Radius and U-shape bending module
Control & Safety
Safety Features
Emergency Stop ButtonsSafety GuardsLight Curtains
- Automation & Control
- Programmable Logic Controllers (PLC)Human-Machine Interface (HMI)Hydraulic Power UnitsPneumatic Control System
