Automated Stacker Crane
This specialized crane utilizes a fork or bar to seize, transport, and stack goods, as well as access storage units from high-level shelves. Available as single mast or dual column models, it serves as essential storage equipment.
Technical Specifications
Overview
High-Efficiency Automated Stacker Crane

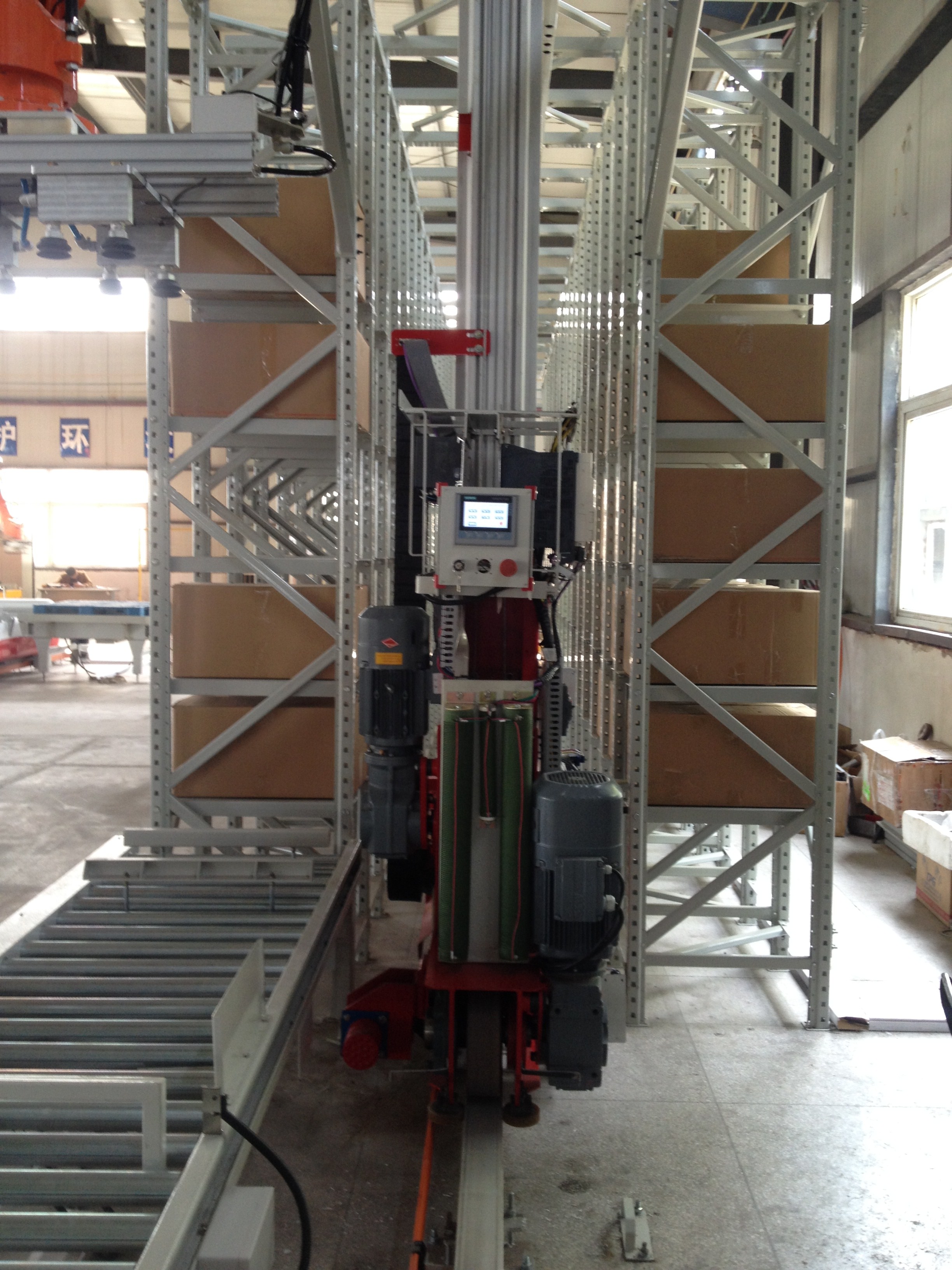

This automated stacker crane is engineered for high-density warehouse storage and retrieval systems. It features a robust vertical mast and horizontal carriage for precise material handling, ensuring efficient movement of boxed goods. Designed with integrated sensors and advanced control systems, the unit provides reliable performance in automated storage and retrieval environments.
Performance Metrics
Maximum Loading Capacity
2,500 KG
Max Load
Operational Speeds
| Metric | Value |
|---|---|
| Running Speed (Horizontal) | 200 m/min |
| Lifting Speed | 60 m/min |
| Fork Stretch Speed | 40 m/min |
Acceleration Rates
- Running: 0.5 m/s²
- Lifting: 0.5 m/s²
- Fork Stretch: 0.4 m/s²
Technical Standards
Positioning Accuracy
- Running Accuracy: ±5 mm
- Lifting Accuracy: ±3 mm
- Compliance Standard
- GB KES
Operation & Control
- Operation Modes
- AutomaticSemi-automatic
- Control System
- Frequency conversion
- Deceleration Modes
- MechanicalElectrical
Infrastructure
- Power Supply
- Safe trolley lines
