Technical Specifications
System Overview
Automated Pipe Fabrication Solution
This automated pipe welding and fabrication system integrates raw material handling, precision cutting, and high-speed beveling into a unified production line. Designed for efficiency, the system utilizes NC-controlled flame or plasma cutting alongside advanced welding manipulators to ensure consistent, high-quality output. The modular setup includes adjustable positioners and elevating support frames, making it a versatile solution for industrial pipe processing requirements.
Technical Specifications
Max Load Capacity
3,000 kg
Max Load
- Suitable Pipe Range
- ф50-ф600mm
Performance Metrics
- Roller Linear Speed
- 120 mm/min
- Elevating Speed
- 300 mm/min
- Elevating Stroke
- 280 mm
- Swing Frequency
- 0-120 times/min
System Components
Main Equipment Components
- Raw material auto feeding
- Roller auto conveyor
- Lifting and transferring roller
- NC double shaft CNC flame/plasma cutting machine
- Products auto output/blanking roller
- GPK-630 high speed beveling machine

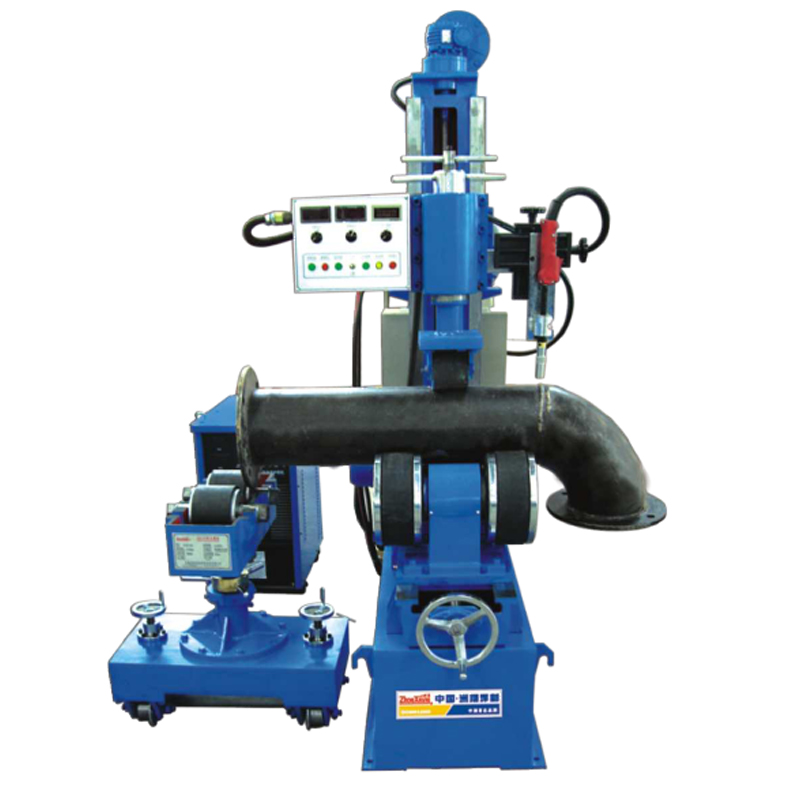

- Adjustable positioner

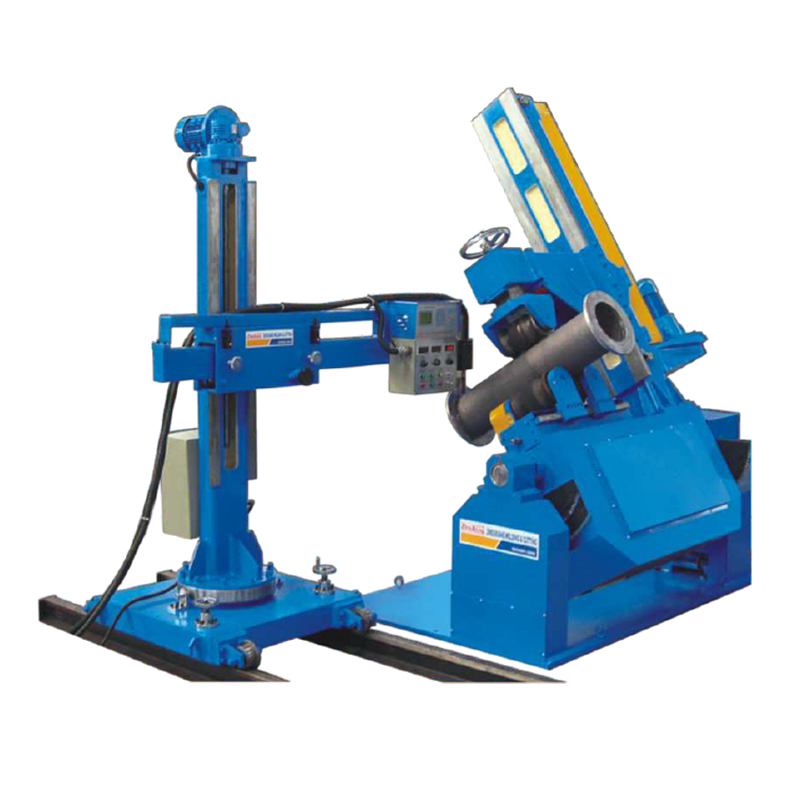

- Cantilever welding machine
- Elevating support frame
