Automated Pallet Storage and Retrieval System
This automated warehouse system stores and retrieves materials without human intervention. Materials in standard bins or pallets are accessed by a roadway stacking crane, with computer control for automated access and management.
Technical Specifications
Overview
Advanced Automated Warehousing
This automated pallet storage and retrieval system (AS/RS) is designed to manage materials without direct human intervention, utilizing multi-layer shelves and standard bins or pallets. By employing high-precision stacker cranes and computer-controlled management, the system optimizes vertical space and significantly improves operational efficiency. It is a highly customizable solution suitable for diverse industrial applications including food and beverage, manufacturing, and large-scale distribution.
System Capabilities
- Integrated Solutions
- Convey & Deliver SystemPalletizer RobotAGV IntegrationStereoscopic WarehouseVertical ElevatorEnd of Line Solution

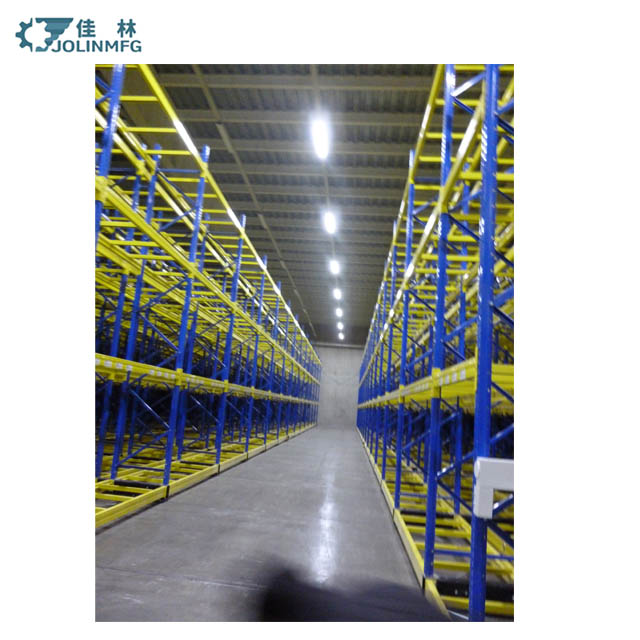

Rack Specifications
Loading Capacity
500 kg
Min Load per Layer
6,000 kg
Max Load per Layer
Standard Colors
BlueOrangeGreyCustomized
- Construction Material
- Steel Q235B
- Surface Treatment
- Corrosion Protection
Stacker Crane Performance
Crane Duty Classifications
| Type | Load Capacity | Max Rack Height |
|---|---|---|
| Light Duty | 20-200kg | <=25m |
| Medium Duty | 250-1500kg | <=25m |
| Heavy Duty | 2.0t / 2.5t / 3.0t | <=25m |
Customization & Support
Customizable Components
- Upright dimensions
- Beam length and strength
- Stacker crane height
- Cargo size compatibility
- Installation Support
- Yes
