Automated KN95 Mask Production System
The KN95 mask machine employs ultrasonic technology to bond multiple layers of nonwoven fabric and filter materials. It then cuts and forms the folded mask body.
Technical Specifications
System Overview
Automated KN95 Production System
This comprehensive production system utilizes advanced ultrasonic technology to automate the manufacturing of KN95 respirators. The solution integrates core mask body formation, ear loop welding, and edge banding processes into a high-efficiency workflow. Designed for stability and precision, the system features PLC programming and servo control to ensure consistent output, reduced waste, and high-volume production capabilities.
- Key Automation Features
- Ultrasonic WeldingPLC ControlServo Motor DrivePhotoelectric DetectionAutomatic Alarm System

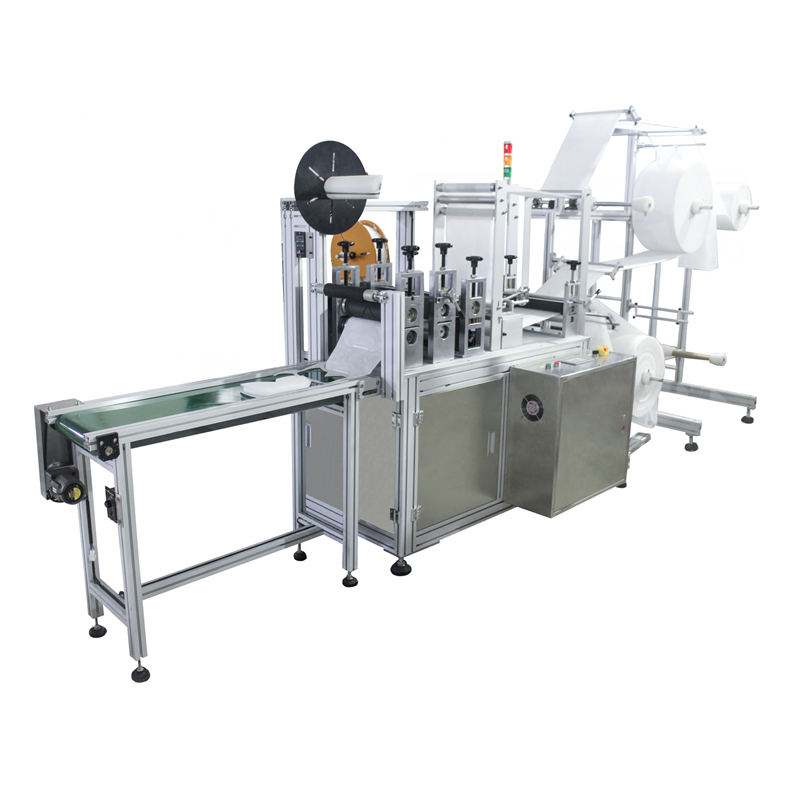

KN95 Mask Machine (Core)
Production Capacity
60 Pcs/min
Max Output
60,000 Pcs
Daily Output (24h)
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZX-95-DPJ |
| Mask Size | 167*105mm |
| Power | 10KW |
| Air Pressure | 0.5-0.8Mpa |
Ear Belt Welding Machine
Welding Unit Parameters
| Parameter | Value |
|---|---|
| Model | ZX-95-EW |
| Production Capacity | 30-50 Pcs/min |
| Ultrasonic Spec | 2000W/20KHZ |
| Power Supply | AC-220V 50Hz |
Edge Banding Machine
Edge Banding Unit Parameters
| Parameter | Value |
|---|---|
| Model | ZX-95-ES |
| Production Capacity | 20-35 Pcs/min |
| Ultrasonic Spec | 2000W/20KHZ |
| Stations | 6 Station Rotary Disc |
Operating Environment
Environmental Requirements
- Temperature: 5-40℃
- Humidity: 15-85% (No condensation)
