Automated Dark Spot Sorting Machine
This automated machine efficiently detects and removes dark spots from textiles. It ensures high-quality output through automatic feeding, picking, and packing, processing over 5kg per hour.
Technical Specifications
Overview
Automated Dark Spot Sorting Excellence

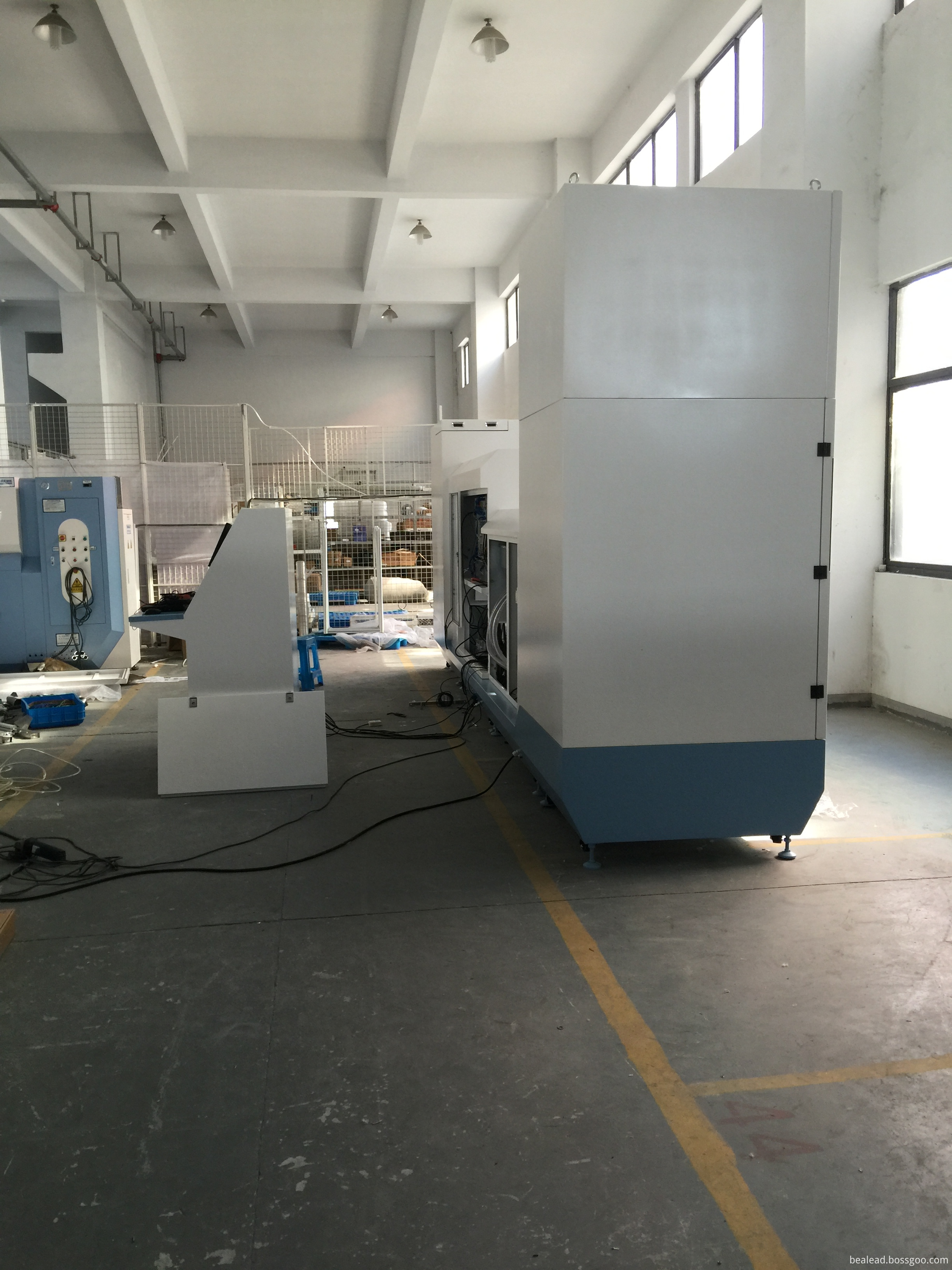

This high-tech sorting machine is designed for the efficient identification and removal of dark spots in down materials, ensuring premium quality for textile production. Featuring a fully automatic process from feeding to packing, it operates 24 hours a day to maximize throughput and minimize manual labor. With high-resolution image identification and the ability to recycle dark down, this system offers a sustainable solution with a rapid return on investment.
Performance Metrics
Key Performance Metrics
8 kg/h
Max Work Efficiency
24 hours
Daily Operation
6 months
ROI Period
Technical Specifications
Electrical & Power
| Parameter | Value |
|---|---|
| Voltage | 380V |
| Max Power | 4KW |
| Air Compressor Power | 5KW |
Pneumatic Requirements
| Feature | Specification |
|---|---|
| Air Pressure | 0.5 - 0.8 MPa |
| Air Tank Capacity | 0.65 m³/min |
| Gasholder | >0.6 m³ |
Physical Properties
- Dimensions
- 6.21 x 2.55 x 2.9 m
Operational Features
Automation Capabilities
- Automatic material feeding
- High-tech image identification
- Precision dark spot picking
- Automated packing for white and dark down
- Continuous 24-hour operation
Build Quality
Strong DesignClean ConstructionIndustrial Grade
- Process Benefits
- High-Speed SortingMaterial RecyclingQuality AssuranceLabor ReductionWaste Minimization
