Audio and Power Cable Kit
These wiring kits support audio and amplifier systems. They include power cables, speaker cables and other accessories suitable for car audio and amplifier installations.
Technical Specifications
Overview
Comprehensive Audio and Power Solutions
This collection features professional-grade wiring kits designed specifically for car audio and amplifier installations. The kits include high-performance power cables, speaker cables, and essential installation accessories such as ANL fuse holders, distribution blocks, and various terminals. Additionally, the range includes a versatile selection of audio extension cables, including RCA, SpeakON, and XLR configurations to meet diverse connectivity requirements.
Power Cable Specifications
Power Cable Gauge Data
| Gauge | Normal Area (mm²) | Outer Diameter (mm) |
|---|---|---|
| 0 Gauge | 53.49 | 15.8 |
| 2 Gauge | 33.63 | 12.5 |
| 4 Gauge | 21.15 | 10 |
| 6 Gauge | 13.3 | 8 |
| 8 Gauge | 8.37 | 6.5 |
| 10 Gauge | 5.26 | 5.5 |
| 12 Gauge | 3.332 | 4.5 |
| 14 Gauge | 2.075 | 4 |
| 16 Gauge | 1.318 | 3.5 |
| 18 Gauge | 0.811 | 3 |
| 20 Gauge | 0.519 | 2.6 |
| 22 Gauge | 0.325 | 2.2 |

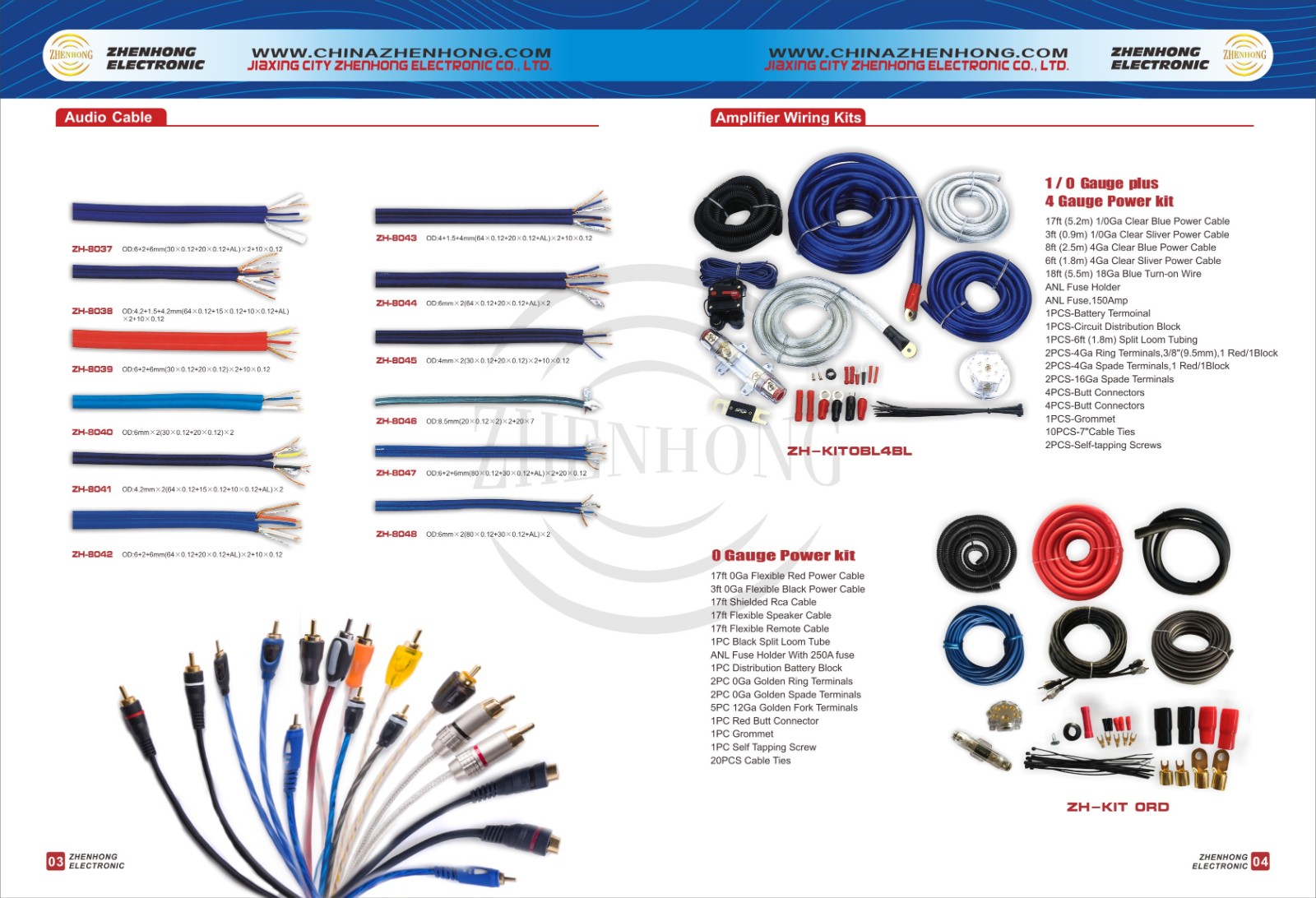

Kit Contents
Included Components
- Power cables (various gauges)
- Speaker cables
- Shielded RCA cables
- ANL Fuse Holders
- Distribution blocks
- Ring and spade terminals
- Split loom tubing
- Cable ties and grommets

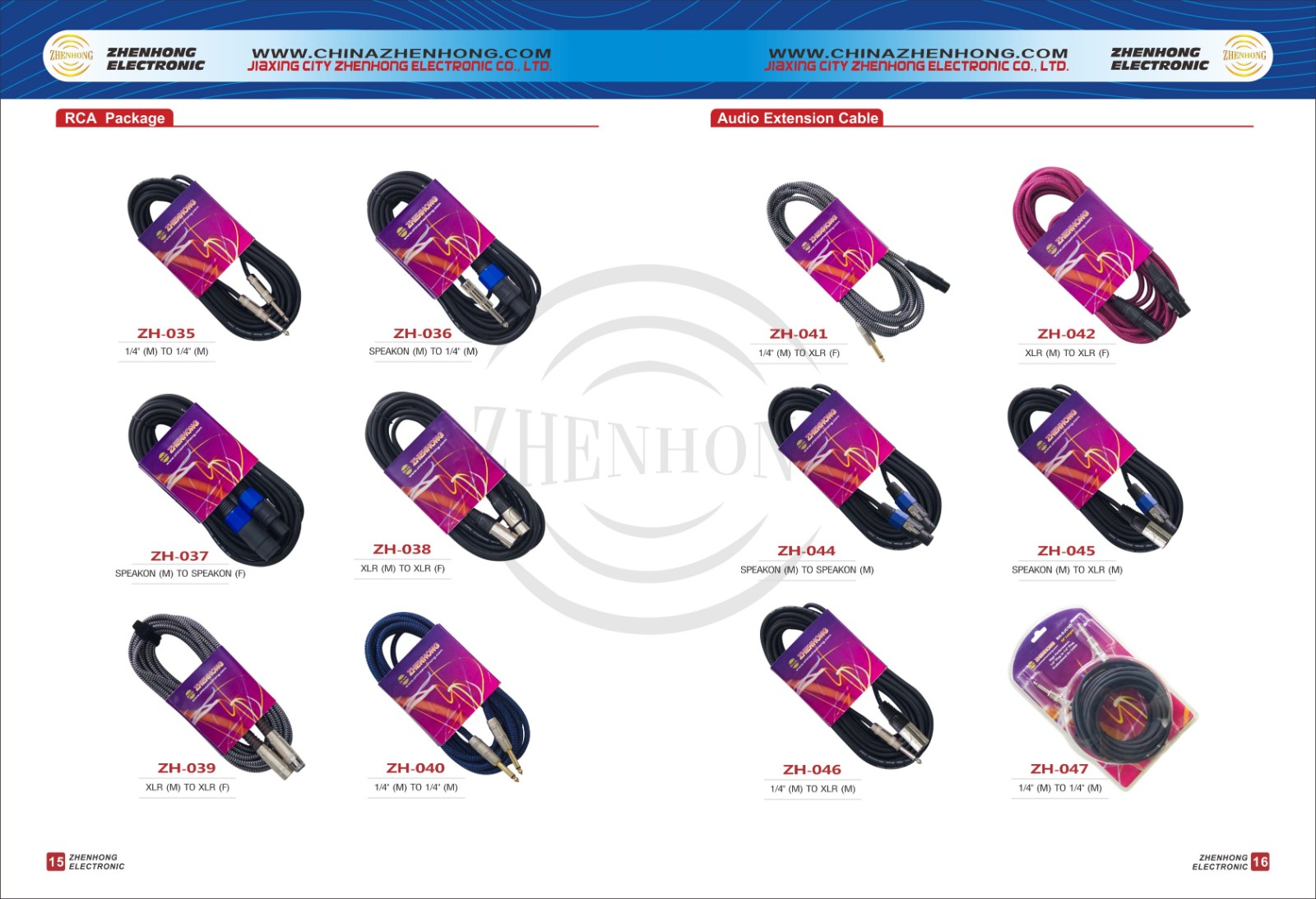

Audio Extension Cables
- Available Connection Types
- RCA to RCASpeakON to 1/4 inchXLR to XLRSpeakON to SpeakON1/4 inch to XLR
