Atomizing Vortex Spray Nozzle for Irrigation
This atomizing spray nozzle features a vortex spray mechanism for efficient water distribution. It is ideal for large-scale irrigation systems, providing uniform coverage.
Technical Specifications
Product Overview
High-Performance Large-Scale Irrigation
This atomizing vortex spray gun is designed for professional large-scale applications including stadium turf irrigation, pasture management, and industrial dust removal. Engineered with a durable aluminum alloy body and a precision brass core, it delivers a powerful shoot radius of up to 57 meters. The vortex mechanism ensures uniform water distribution and efficient atomization, making it an ideal solution for maintaining expansive green spaces and managing environmental dust.
Performance Metrics
Key Performance Statistics
57 m
Max Shoot Radius
82 m3/h
Max Flow Rate
8 bar
Max Pressure
Technical Specifications
- Operating Pressure Range
- 3.0 - 8.0 bar
- Flow Rate Range
- 13m3/h - 82 m3/h
- Shoot Radius Range
- 25 - 57m
- Connection Type
- Flange connector
Materials & Construction
Construction Materials

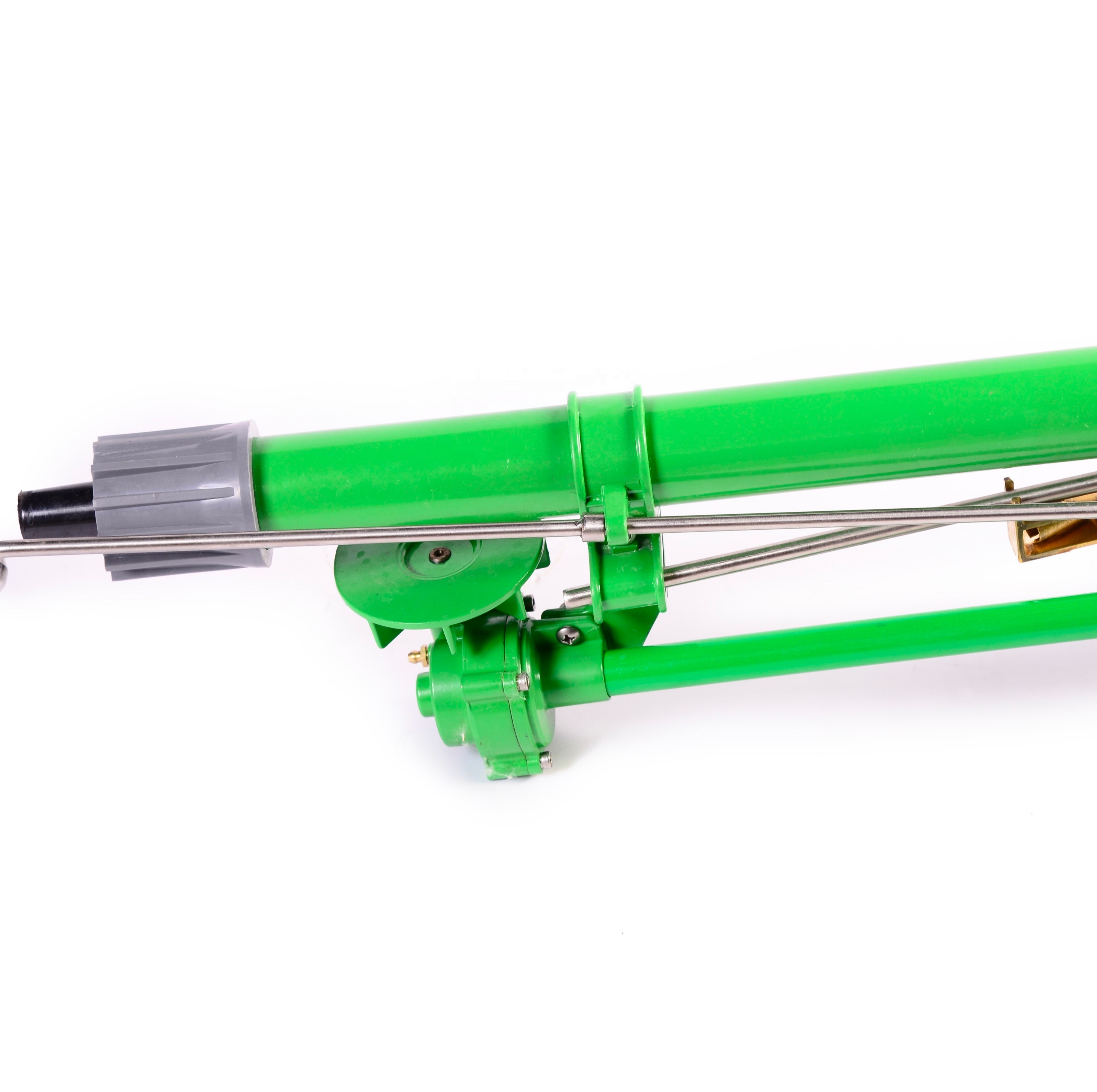

- Aluminium Alloy Body
- Brass Core
- Plastic Nozzle
- Unit Weight
- 8.5 kgs
Applications
- Primary Applications
- IrrigationDust ControlStadium MaintenancePasture WateringSpray CoolingGarden Large-Scale Spraying
Logistics & Packaging
- Packaging Configuration
- 1 unit per carton
- Standard Carton Size
- 83 x 25 x 35 cm
- Minimum Order Quantity
- 100 Units
- FOB Port
- Shanghai Port
Compliance & Quality
Standards Compliance
CEANS/AS/NZS
