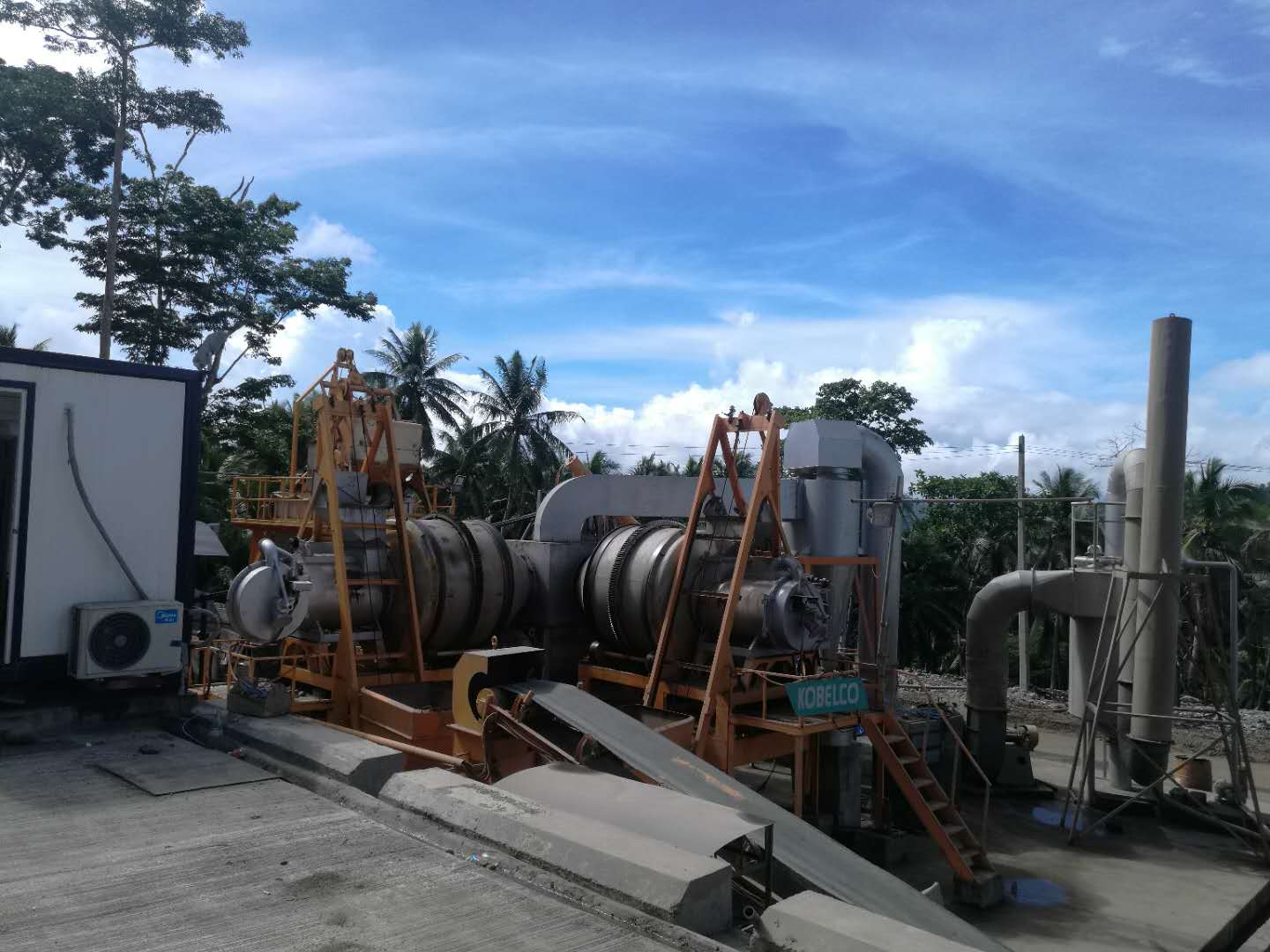

Asphalt Concrete Mixing Plant, 60 t/h
This asphalt concrete mixing plant combines traditional fuel technology with pulverized coal cyclone spray combustion for complete burning and high thermal efficiency. The equipment utilizes a large diameter heating drum for drying, ensuring uniform operation and reduced heat loss.
Technical Specifications
Overview
Compact Asphalt Mixing Solution

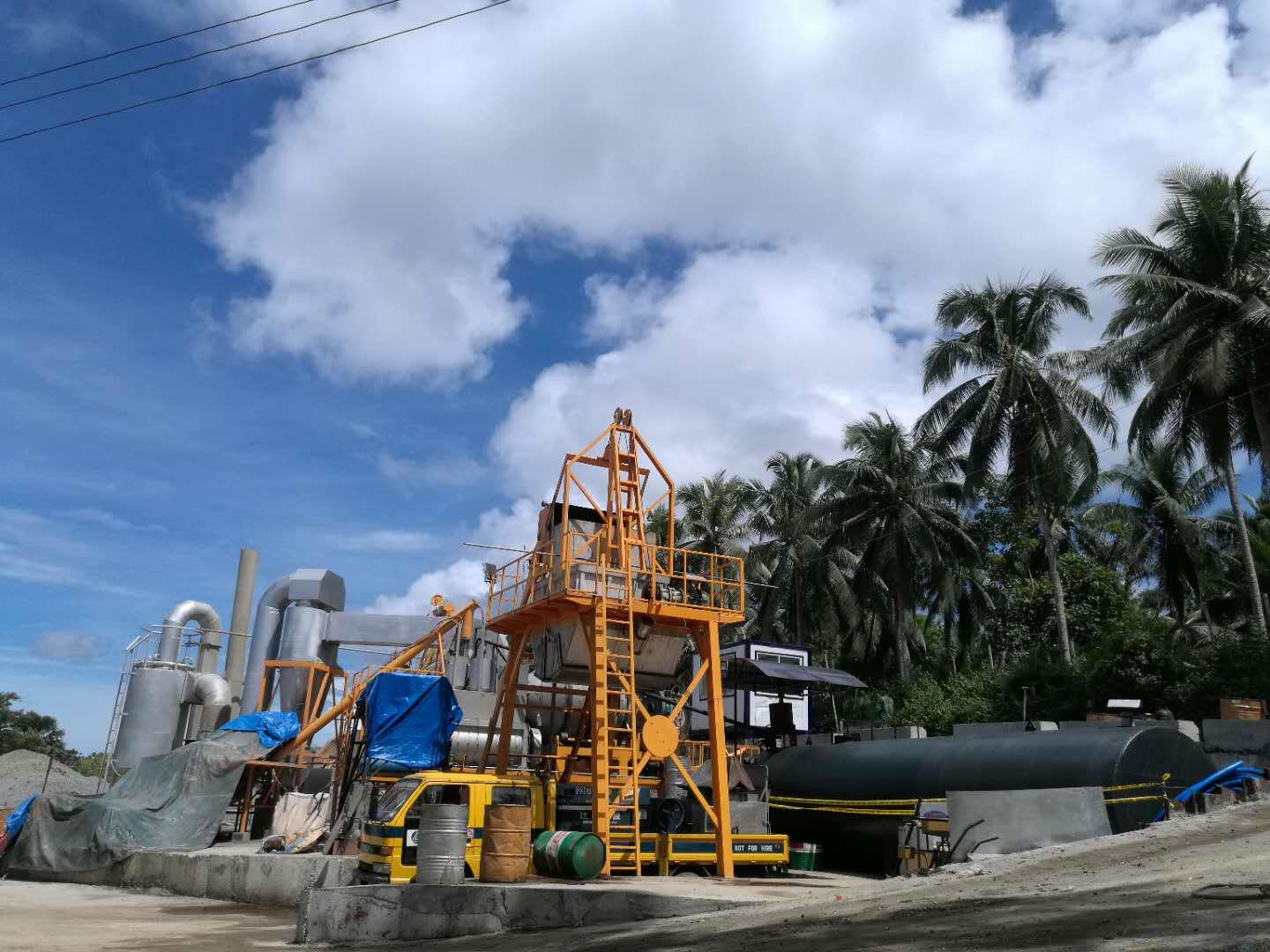

The QLB series module asphalt concrete mixing plant is a high-efficiency solution designed for small to medium-sized construction and road maintenance projects. It combines traditional fuel technology with advanced pulverized coal cyclone spray combustion, ensuring high thermal efficiency and complete burning. Its modular design facilitates easy transportation and installation, while the robust construction ensures long-term reliability and minimal maintenance requirements.
Performance Metrics
Production Capacity
- Total Power
- 232 KW
- Output Temperature
- 120-180°C (Adjustable)
Operational Details
Fuel Consumption
| Fuel Type | Consumption Rate |
|---|---|
| Oil | 5-7.5 Kg/t |
| Coal | 13-15 Kg/t |
- Batching Machine Capacity
- 8m³ x 3
- Finished Product Hopper
- 9 T
Features
Key Design Features

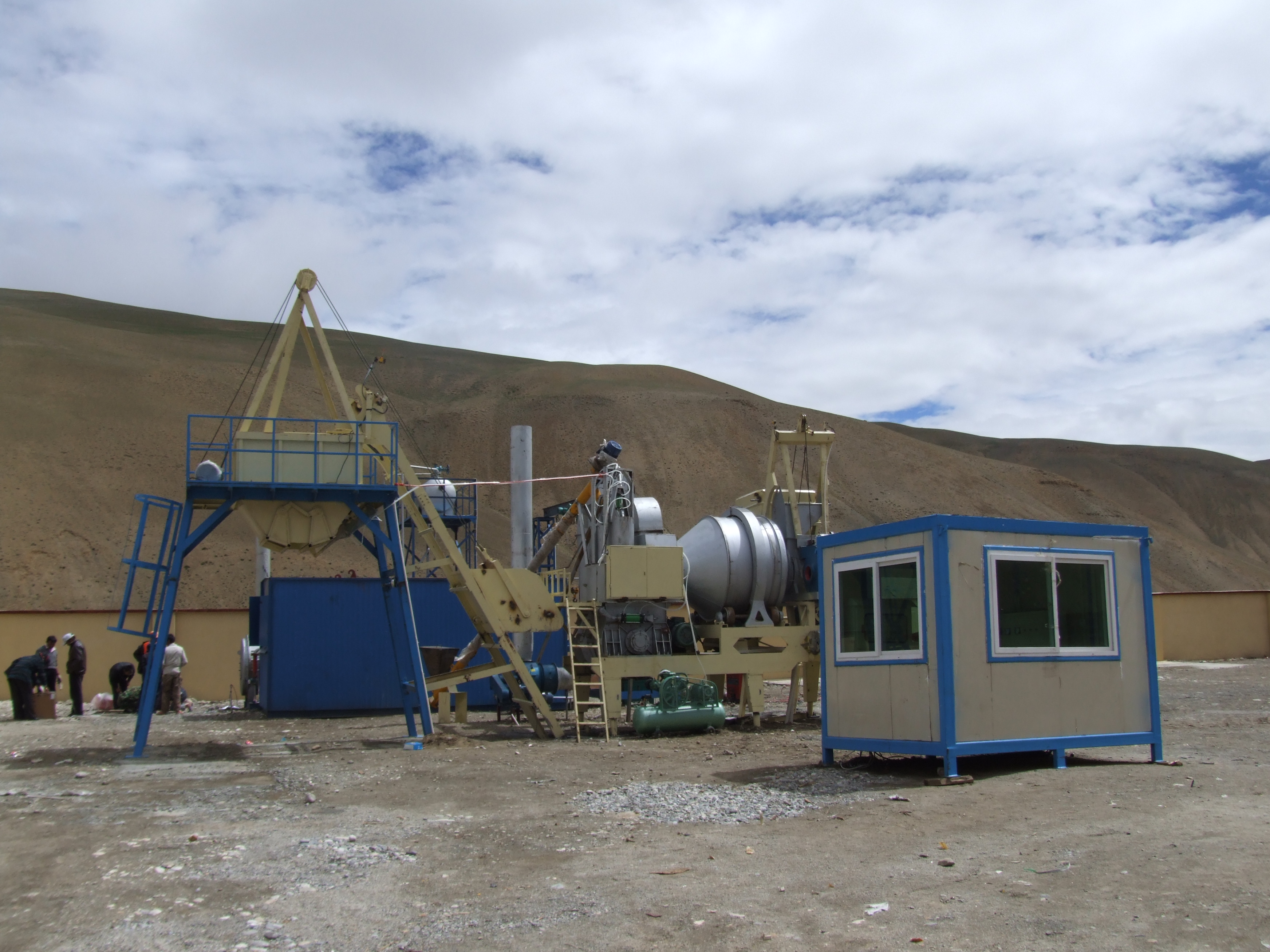

- Large diameter, short length heating drum for efficient drying
- High-strength high-chromium alloy mixing arms
- Spiral arrangement of double-row blades for superior agitation
- Wear-resistant boiler steel plate drum construction
- Uniform smooth operation with four-roller support
- Available Options
- Coal millWater filterSack filterControl roomAsphalt heating tanks
