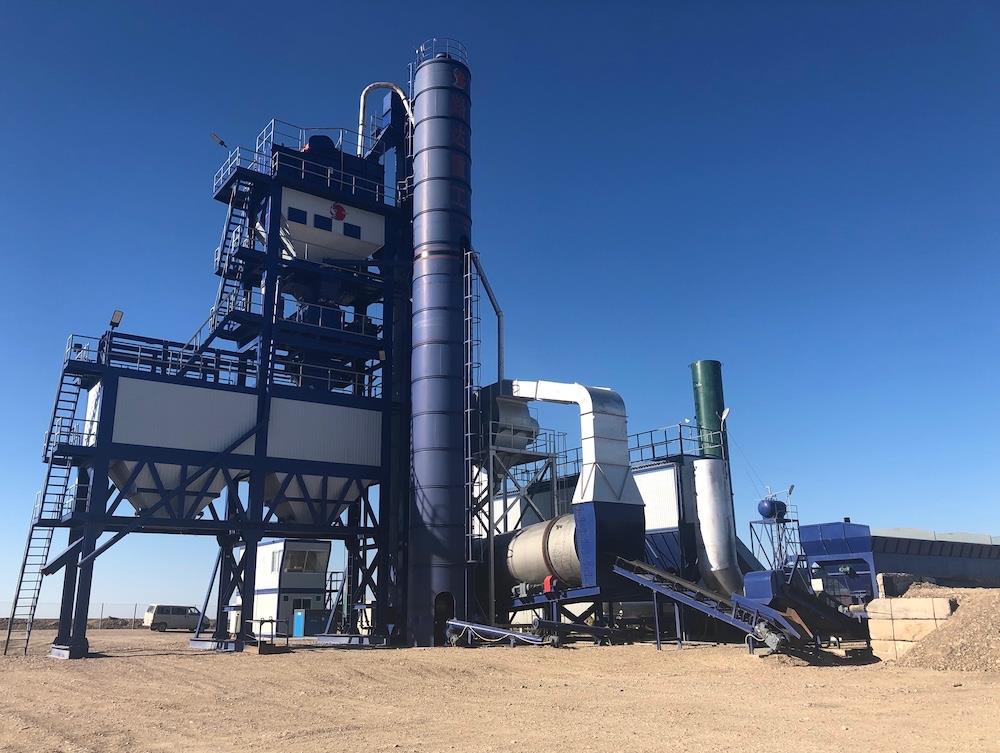

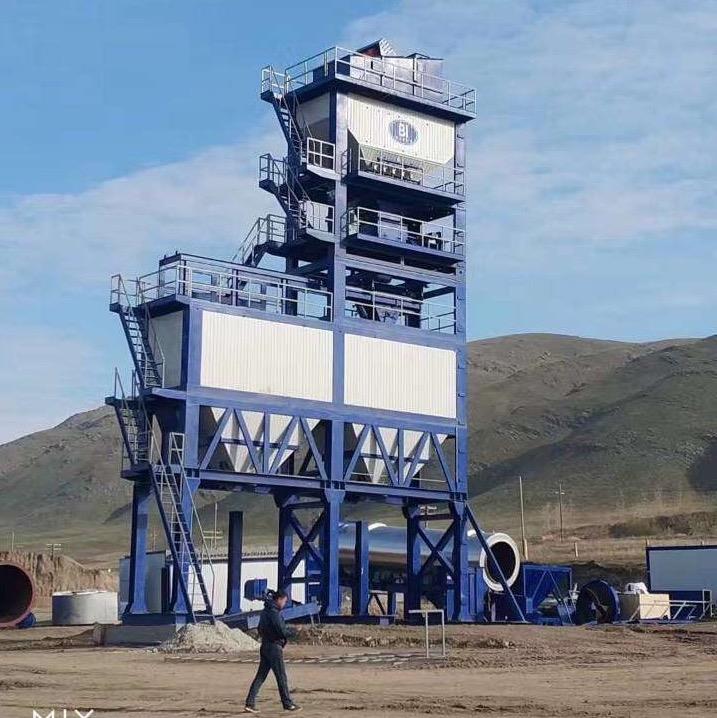

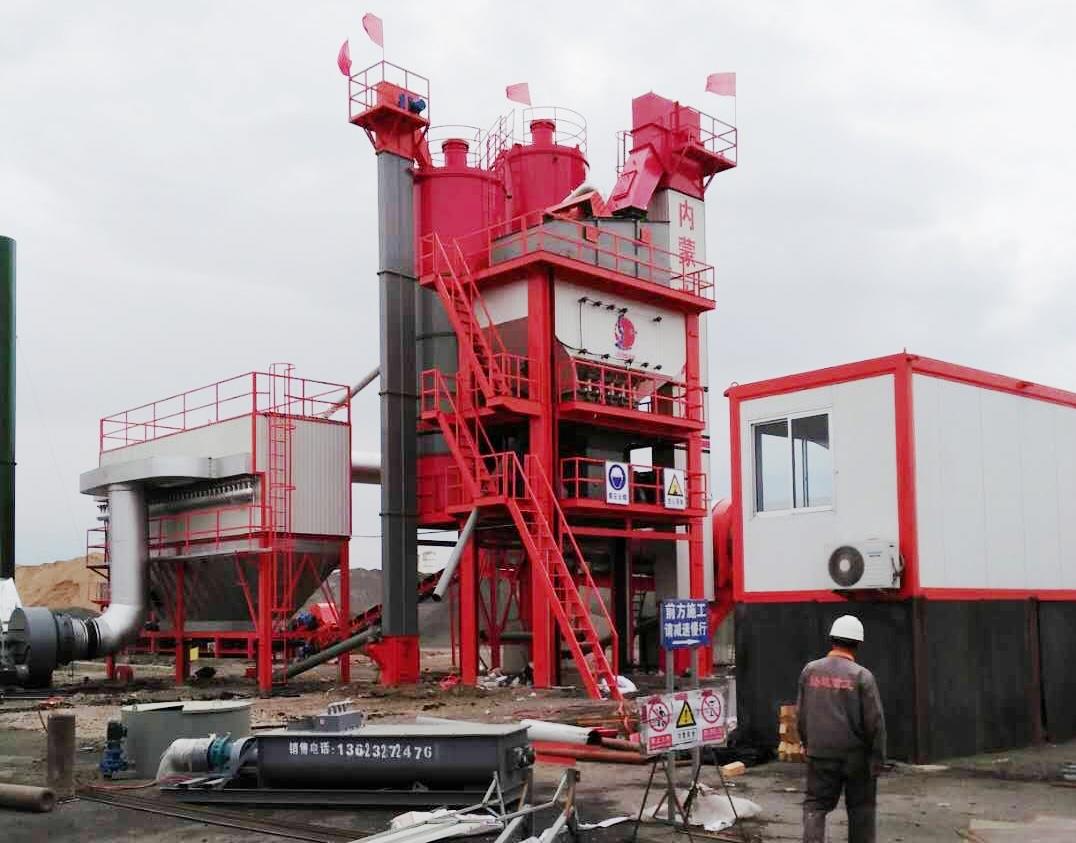

160 t/h Asphalt Mixing Plant
This asphalt mixing plant has a capacity of 160 tons per hour. It features a twin horizontal mix shaft with an auto lubrication system and a PLC/computer automatic and semi-auto control system.
Technical Specifications
Overview
High-Efficiency 160 t/h Asphalt Mixing Plant
The QLB2000 is a high-capacity stationary asphalt production facility engineered for large-scale infrastructure and road construction projects. It features an advanced modular design incorporating precision weighing systems, high-efficiency drying drums, and a versatile burner system compatible with multiple fuel sources. With a focus on consistent mix quality and environmental compliance, this plant offers reliable, long-term performance for high-volume paving applications.
Performance Specifications
Key Performance Metrics
160 t/h
Capacity
2,000 kg
Mixer Capacity
447 kW
Main Power
Technical Details
Measuring Accuracy (Static State)
| Material | Accuracy |
|---|---|
| Aggregate | ±0.5% |
| Asphalt | ±0.25% |
| Powder | ±0.25% |
- Compatible Burner Fuels
- CoalDieselHeavy OilNatural Gas
Component Features
- Dedust System
- Two-stage: primary cyclone collector and secondary DUBON bag house filter
- Asphalt Tank Capacity
- 25 - 200 t
- Control Method
- PLC/Computer automated and semi-auto system
