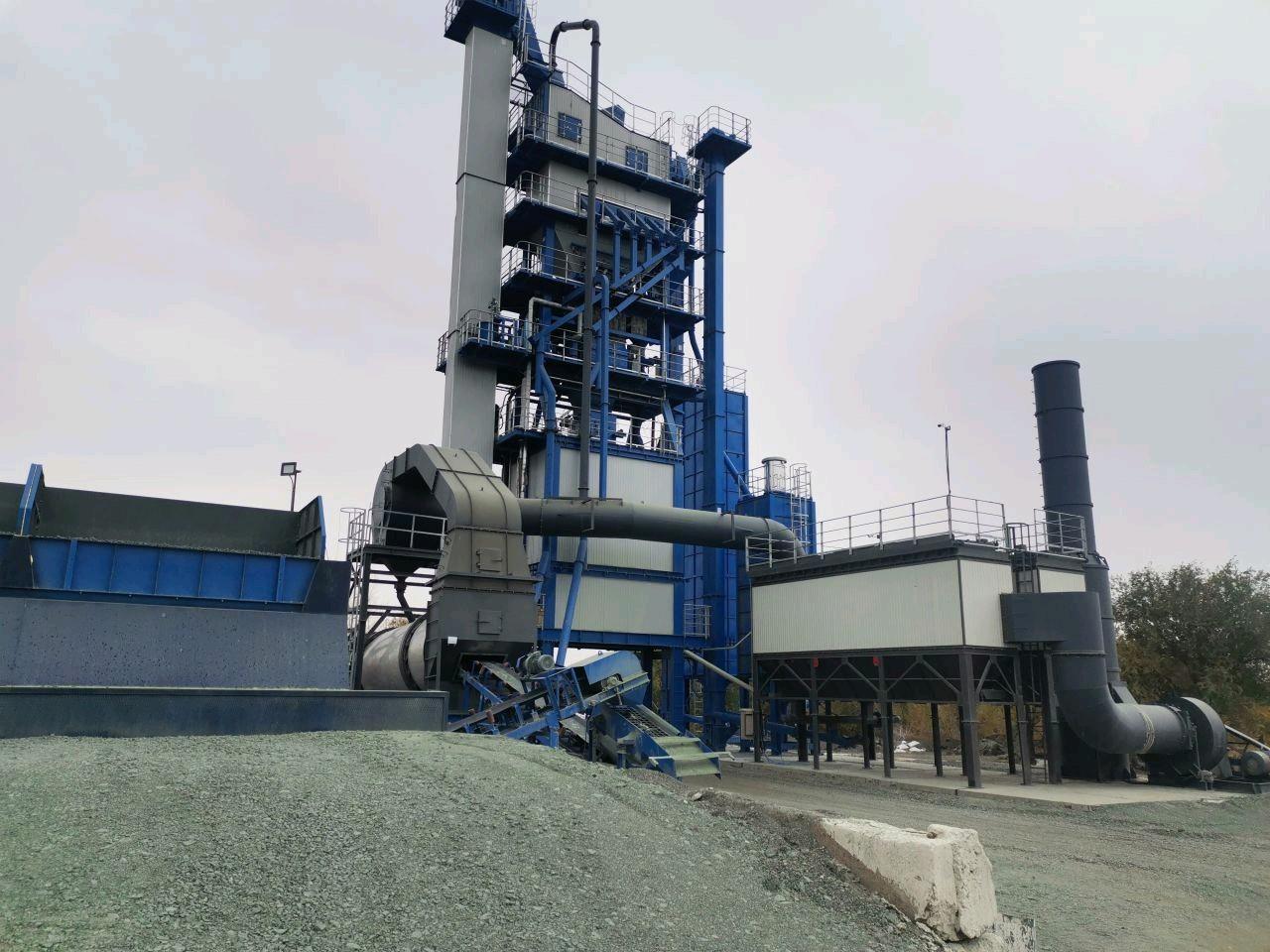

160 T/H Asphalt Mixing Plant
The 160 T/H asphalt mixing plant is engineered for producing asphalt mixtures in road construction and maintenance. This plant integrates aggregate feeders, a drying drum, a mixing tower, and a dust collection system.
Technical Specifications
Overview
High-Capacity Professional Asphalt Production
The QLB2000 is a high-capacity 160 T/H asphalt mixing plant designed for large-scale road construction and maintenance projects. This modular system integrates advanced aggregate feeding, high-efficiency drying, and precision weighing to ensure consistent asphalt quality. Equipped with dual-stage dust collection and a fully automated PLC control system, it balances high productivity with environmental compliance and operational ease.
Performance Metrics
Key Performance Metrics
160 t/h
Production Capacity
2,000 kg
Mixer Capacity
447 kW
Main Power
Technical Specifications
Static Measuring Accuracy
| Material Type | Accuracy Tolerance |
|---|---|
| Aggregate | ±0.5% |
| Asphalt | ±0.25% |
| Powder | ±0.25% |
Aggregate System
Aggregate Supply Features
- Protective plates on hopper sides to prevent conveyor debris
- Individual vibrators below each hopper for smooth supply
- Top-mounted grid plates for oversize aggregate screening
- Integrated maintenance ladders and platforms
- Secondary screening between flat and feeding conveyors
Drying & Combustion
Drying Drum Construction
- Boiler steel plate construction for high thermal insulation
- Automatic lubrication system to reduce labor costs
- High-strength wear-resistant rolling rings and rollers
- Stainless steel and thermal insulation wool outer cladding
- Compatible Burner Fuels
- CoalDieselHeavy OilNatural Gas
Mixing & Screening
- Mixing System
- Twin horizontal mix shaft with automatic lubrication and high-accuracy weighing components.
- Screening Technology
- Durable linear vibrator with high wear-resistance mesh and sealed vibration motors.
Environmental & Control
Dust Collection System
- Two-stage dedust method (Cyclone + Bag collector)
- Heat-resistant filter bags
- Integrated temperature testing and pulse control
- Thermal insulation for efficiency
Control Mode
PLC AutomaticSemi-AutoComputer Integrated
Storage
- Asphalt Tank Volume
- 200 t
