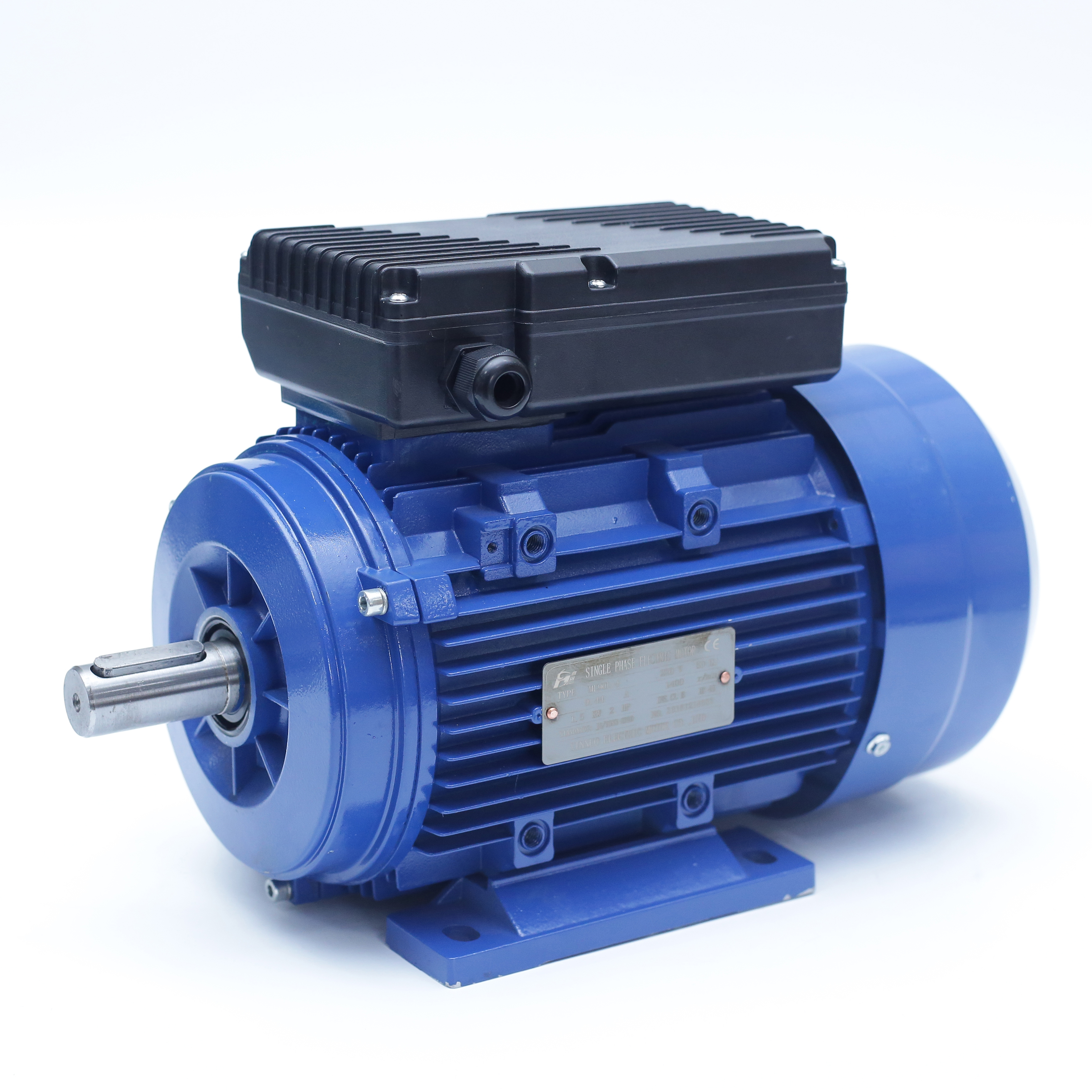

Aluminum Single Phase Electric Motor
This single-phase electric motor features a durable aluminum housing for efficient heat dissipation. Designed for general-purpose applications, it provides reliable power with a compact footprint.
Technical Specifications
Overview
High-Efficiency Single Phase Motor
This capacitor-run asynchronous electric motor features a durable aluminum housing designed for efficient heat dissipation and long-lasting performance. Engineered for general-purpose industrial and commercial applications, it provides reliable power in a compact footprint. The motor is built to modern standards to ensure minimal downtime and optimal operational efficiency.
Technical Specifications
Power Rating
2.2 kW
Rated Power
1,420 r/min
Rated Speed
50 Hz
Frequency
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Current | 14 A |
| Power Factor (Cos φ) | 0.88 |
| Insulation Class | Class B |
Design & Construction
- Housing Material
- Aluminum
- Protection Rating
- IP 44
Certifications
- Certifications & Standards
- ISO-9001CE
