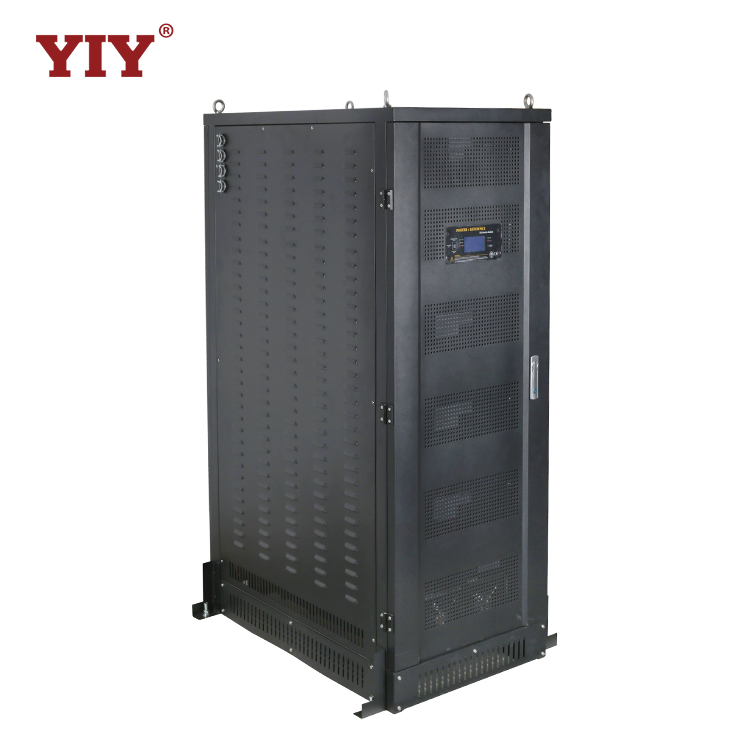

All-in-One Off-Grid Solar Power Energy Storage System
This all-in-one energy storage system is designed for off-grid solar power applications. It integrates battery storage, power conversion, and control functionalities into a single unit.
Technical Specifications
Overview
All-in-One Solar Energy Storage Solution
This integrated ESS provides a seamless plug-and-play solution for off-grid power, combining a 15kW low-frequency pure sine wave inverter, MPPT solar controller, and high-safety LiFePO4 battery storage. Designed for residential, commercial, and industrial backup, it features a standard 19-inch rack design for modular scalability and optimal performance. The system supports real-time monitoring via a mobile app and features an active balancing BMS to ensure a long working life of over 3500 cycles.
Key Performance Metrics
Key Performance Metrics
15 kW
Inverter Rated Power
40.96 kWh
Total Battery Energy
3,500 cycles
Cycle Life (@80% DOD)
800 Ah
Rated Capacity
Battery Specifications
- Battery Chemistry
- Lithium Iron Phosphate (LiFePO4)
- Rated Voltage
- 51.2 vDC
- Rated Charge Current
- 400 A
- Max Discharge Current
- 880 A
Inverter & Charger
- Output Waveform
- Pure Sine Wave
- Peak Efficiency
- >88% (Inverter Mode) / >95% (Line Mode)
- MPPT PV Input Range
- 60-145vDC
System Functions
Primary Applications
- Areas without electricity supply
- Residential backup power
- Commercial and industrial backup
- Communications industry backup
- Data center energy storage
- Core Features
- Plug & PlayMobile App MonitoringActive Balancing BMS19'' Standard Rack DesignAutomatic Calibration
Safety & Compliance
Compliance Standards
ISO 9000ISO 14001CEROHSULTUVFCC
Physical Dimensions
Unit Dimensions
| Dimension | Value |
|---|---|
| Height | 1760mm |
| Width | 935mm |
| Depth | 560mm |
Operating Environment
Temperature Tolerances
| Mode | Range |
|---|---|
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
