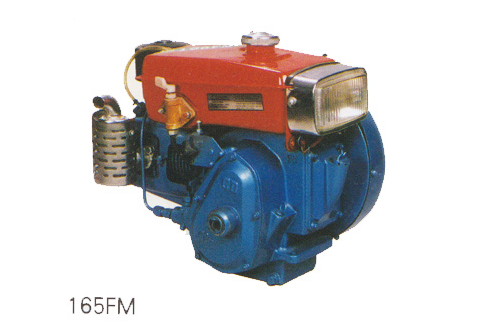

Air-Cooled Horizontal Diesel Engine, 1.62kW
This is a horizontal type, air-cooled diesel engine. It is a four-stroke, single-cylinder engine with a 22:1 compression ratio and a rated speed of 2600 RPM.
Technical Specifications
Overview
High-Efficiency 1.62kW Air-Cooled Diesel Engine
This horizontal 4-stroke diesel engine is engineered for reliability in demanding B2B applications such as agricultural machinery, power generation, and water pumping. Featuring a compact single-cylinder design and a swirl-type combustion chamber, it offers efficient fuel performance and a robust service life. Its air-cooled system ensures stable operation without the complexity of liquid cooling, making it an ideal choice for portable and stationary equipment.
Performance Metrics
Performance Highlights
1.62 kW
1-Hour Rated Power
2,600 r/min
Rated Speed
22
Compression Ratio
Technical Specifications
- Model
- 165FM
- Engine Type
- Horizontal 4-Stroke
- Number of Cylinders
- 1
- Combustion Chamber Type
- Swirl
- Bore x Stroke
- 60 x 60 mm
- Total Displacement
- 0.169 L
Power & Efficiency
- 12-Hour Rated Power
- 1.47 kW
- Specific Fuel Consumption
- 312 g/kw-h
Features & Applications
Cooling System
Air-Cooled
Common Applications
- Agricultural Machinery
- Power Generators
- Water Pumps
- Key Components
- Fuel TankAir IntakeExhaust MufflerIntegrated HeadlightDirect Injection
