Technical Specifications
Product Overview

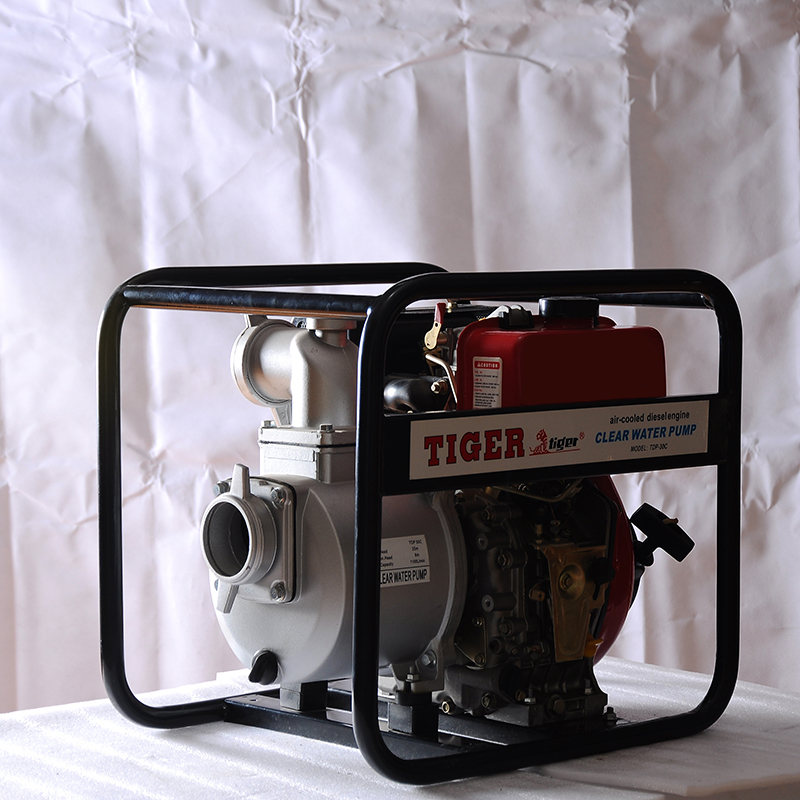

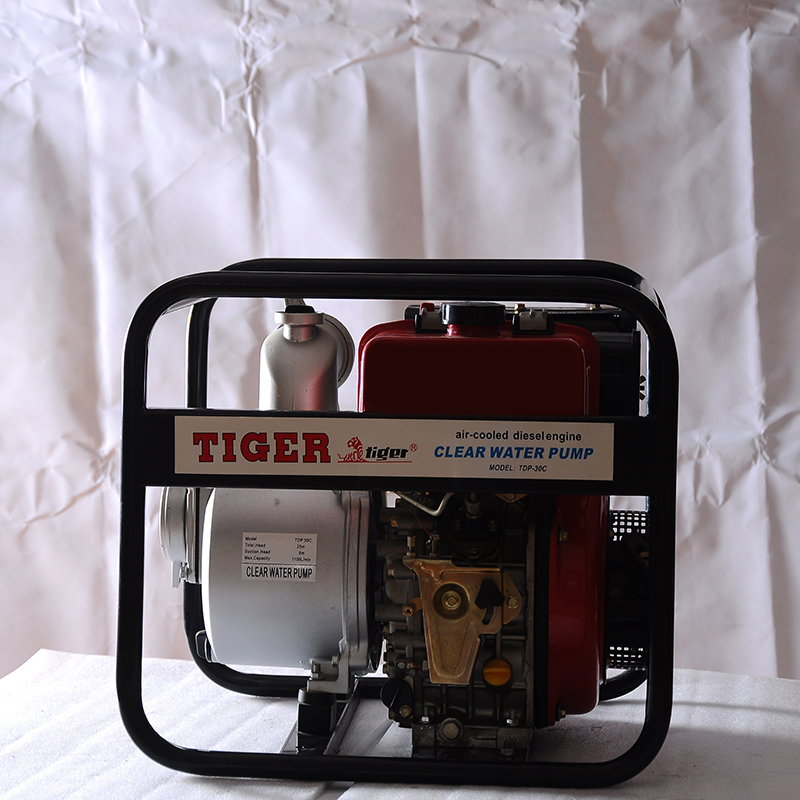

High-Performance Diesel Water Pump
This air-cooled diesel engine water pump is engineered for demanding water transfer applications, including agricultural irrigation, construction site dewatering, and general emergency water removal. Powered by a robust 5.5 HP 4-stroke diesel engine, it delivers a maximum capacity of 1100 L/min. Its durable design and efficient fuel consumption make it a reliable choice for professional use in environments where consistent performance is critical.
- Inlet/Outlet Size
- 80 mm
Key Performance Metrics
Max Capacity
1,100 L/min
Max Capacity
26 m
Total Lift
8 m
Max Suction
Engine Specifications
Engine Configuration
| Feature | Specification |
|---|---|
| Engine Model | TD178F |
| Type | Vertical, single cylinder, 4 stroke, air-cooling |
| Displacement | 296 cc |
| Max Output | 5.5 HP |
| Starting System | Recoil |
| Ignition System | Direct injection |
Operational Specs
Fluid Capacities
- Fuel Tank Capacity: 3.5 L
- Oil Capacity: 1.1 L
Physical Dimensions
Size and Weight
- Dimensions: 580 x 475 x 545 mm
- Gross Weight: 54 kg
Logistics
- Container Capacity
- 180 pcs
