Technical Specifications
Product Overview

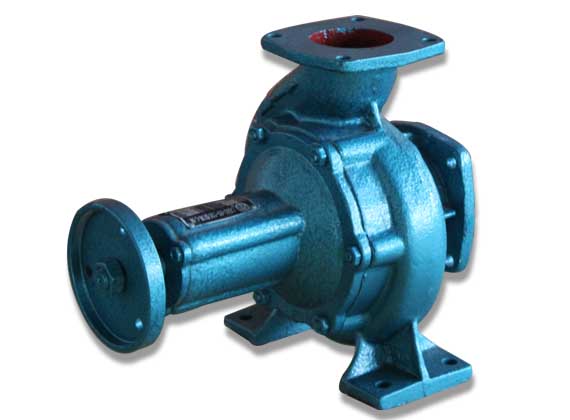

CB Series Centrifugal Pumps
The CB Series centrifugal pumps are designed specifically for agricultural irrigation, offering a blend of lightweight construction and simple operation. These pumps are highly versatile, suitable for farmland, nursery, and tea garden applications, with sizes ranging from 2 to 6 inches. They are available in both hand-lift and normal configurations, supporting flexible installation with fixed or movable frames.
Key Features
Drive Compatibility
- Diesel engine (belt drive)
- Diesel engine (direct connection)
- Design Highlights
- LightweightEasy to MoveSimple OperationVersatile Irrigation
Technical Specifications
Performance Parameters
| Model | Inlet/Outlet (mm) | Flow (L/s) | Head (m) | Speed (r/min) | Power (kw/HP) |
|---|---|---|---|---|---|
| CB50-15 | 50/50 | 4.2 / 5.3 | 15 | 2,600 | 1.5/2 |
| CB50-15 (High) | 50/50 | 5.3 / 19 | 19 | 2,900 | 2.2/3 |
| CB50-19 | 50/50 | 5.2 / 18 | 18 | 2,900 | 2.2/3 |
