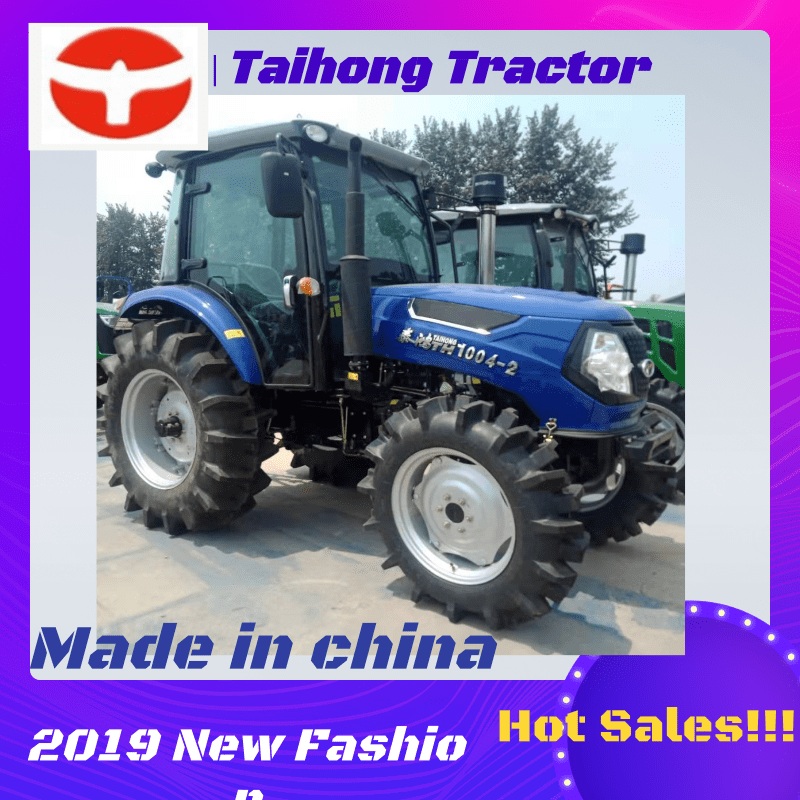

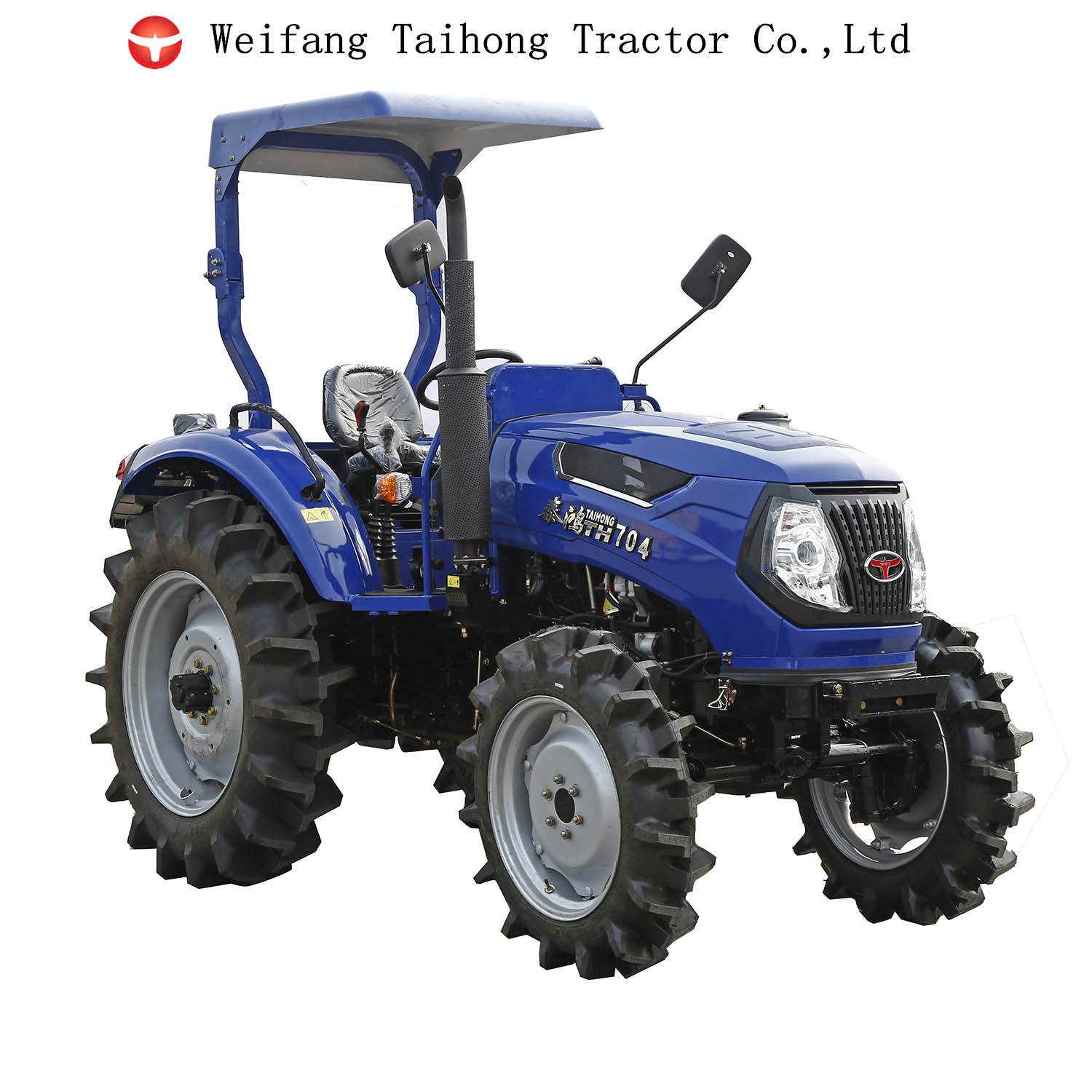

Agricultural Tractor for Plowing and Tilling
This agricultural tractor is designed for a variety of farming tasks, including plowing and tilling. It features a powerful engine and durable transmission for optimal speed control.
Technical Specifications
Overview
Versatile Agricultural Performance
The TB series tractors offer a robust range from 60 to 100 horsepower, designed to handle diverse farming tasks including plowing, tilling, seeding, and fertilizing. Featuring options for both two-wheel and four-wheel drive, these machines provide the torque and reliability required for demanding field conditions. Built for durability and operator efficiency, this series supports a wide array of implements to maximize your agricultural productivity.
Technical Specifications
- Horsepower Range
- 60 - 100 hp
- Drive System
- 2WD4WD
- Gear Configuration
- 12 Forward + 12 Reverse
- PTO Speed
- 540/1000 rpm
Performance Metrics
Key Operational Metrics
150 L
Fuel Capacity
Dimensions and Adjustments
Wheel Tread Specifications
| Location | Adjustment Type |
|---|---|
| Front Wheel | 1235/1335/1435 step adjustable |
| Rear Wheel | 1000-1500 stepless adjustable |
Compatibility and Systems
Supported Implements
- Plow
- Seeder
- Planter
- Cultivator
- Sprayer
- Fertilizer spreader
- Suspension Type
- Three-point linkage Category 2
