Agricultural Spraying Drone
This multi-rotor agricultural drone is designed for crop spraying and aerial application of pesticides or fertilizers. It allows for efficient and targeted application, reducing waste and environmental impact.
Technical Specifications
Overview
High-Efficiency Agricultural Spraying Solution

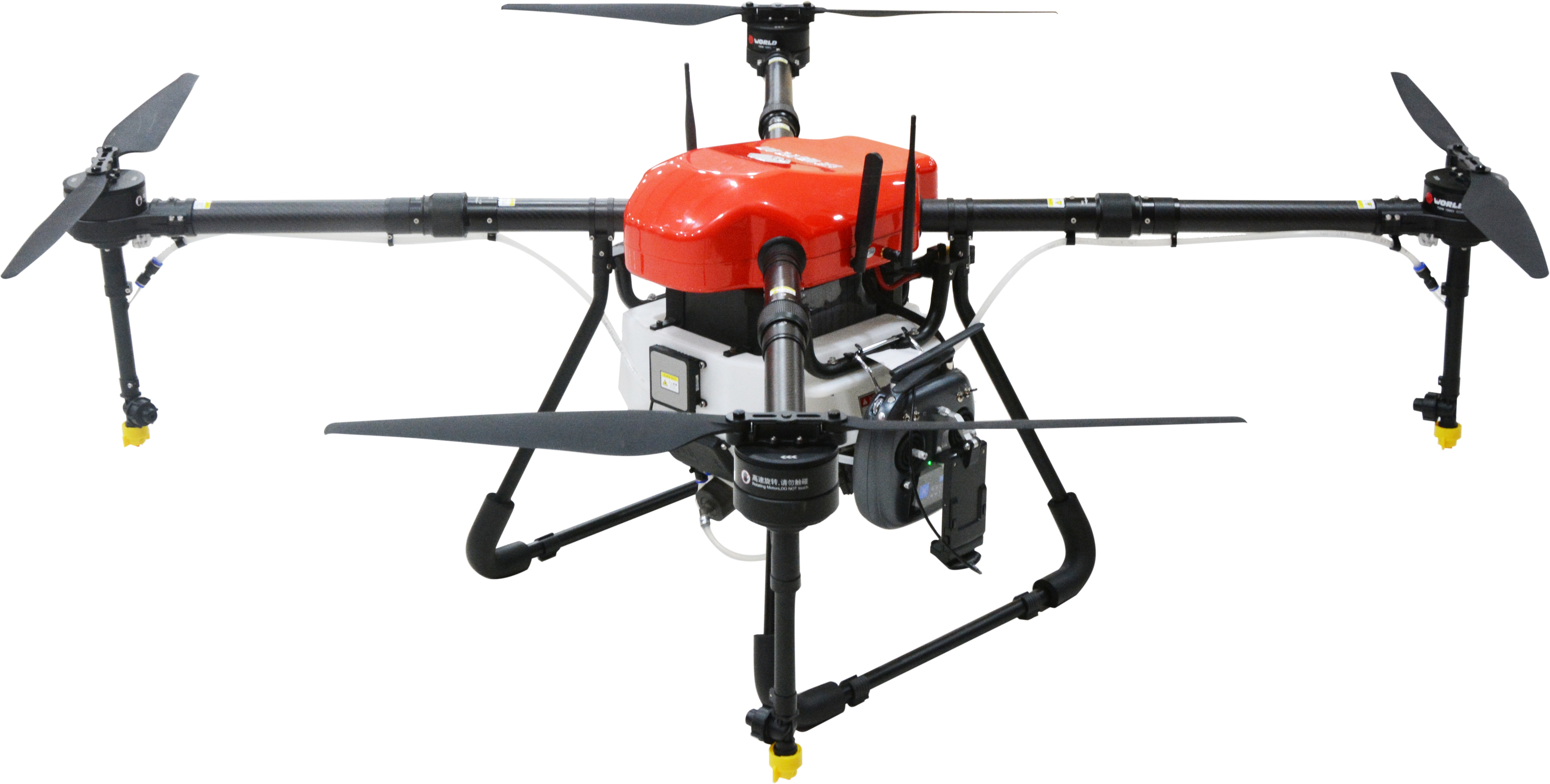

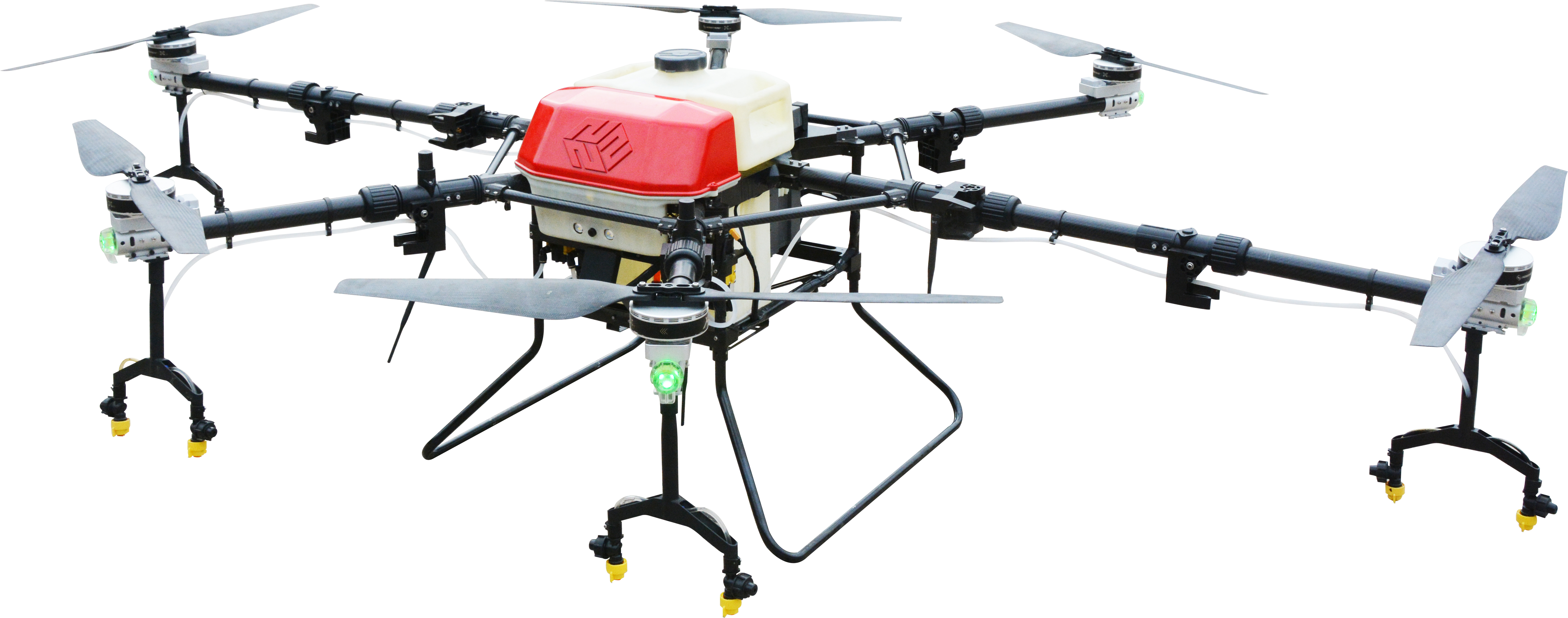

This multi-rotor agricultural drone is designed for precision crop spraying and the aerial application of pesticides or fertilizers. It features a robust frame with a central liquid tank and spray nozzles positioned beneath each rotor to ensure even distribution across large fields. Equipped with advanced autonomous navigation and obstacle avoidance technology, it provides a cost-effective and environmentally friendly solution for modern crop management.
Performance Metrics
Daily Work Efficiency
50 acres
Minimum Daily Coverage
80 acres
Maximum Daily Coverage
Intelligent Flight Control
Obstacle Avoidance System
| Action | Distance Threshold |
|---|---|
| Detection Range | 13m |
| Speed Reduction | 10m |
| Bypass Maneuver | 5m |
Operational Modes
- Point A to Point B straight line work
- Autonomous work via stored field maps
- Breakable point spray to avoid repetition
- Route translation and field expansion/shrinkage
- Adjustable flight height, speed, and pitch
Data & Reporting
- Post-Operation Reporting
- Field AreaFlight TimeAcreage TrackingMemory Storage
Hardware & Design
Navigation Technology
GPS NavigationRemote ControlApp Integration
- Propulsion System
- Multi-rotor system with high-speed rotating motors
Safety
Safety Features
- Autonomous obstacle avoidance
- Rotating motor proximity warnings
- Precision flight control for safe operation
