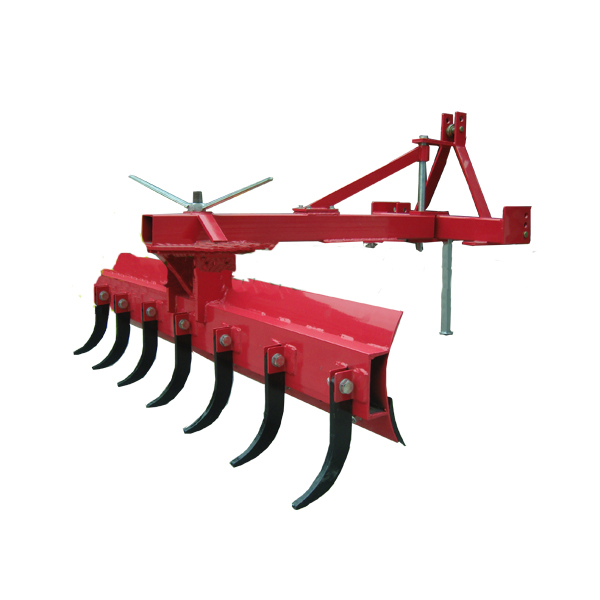

Agricultural Ripper for Soil Tillage
This agricultural ripper is designed for deep soil tillage and subsoil loosening. It features curved shanks to break up compacted soil layers, improving drainage and promoting root growth.
Technical Specifications
Product Overview
Professional Agricultural Ripper
This heavy-duty ripper is designed for deep soil tillage and effective subsoil loosening. Engineered for durability, it helps break up compacted soil layers to improve drainage, aeration, and water infiltration. By promoting better root growth and soil structure, this implement is an essential tool for maximizing crop yields and preparing land for successful cultivation.
Technical Specifications
Model Specifications
| Attribute | 5GBR | 6GBR |
|---|---|---|
| Dimensions (mm) | 1520*1500*1150 | 1820*1500*1150 |
| Working Width (mm) | 1500 | 1800 |
| Structure Weight (kg) | 105 | 130 |
| Required Horsepower (hp) | 20-40 | 30-55 |
Design Features
Construction & Design
- High-strength steel frame for demanding conditions
- Multiple curved shanks with replaceable tips
- Adjustable shank spacing for soil customization
- Three-point hitch system for easy attachment
- Depth adjustable settings for precision tillage
Key Benefits
- Operational Benefits
- Improved DrainageSoil AerationEnhanced Root DevelopmentDeep TillageCompaction Relief
