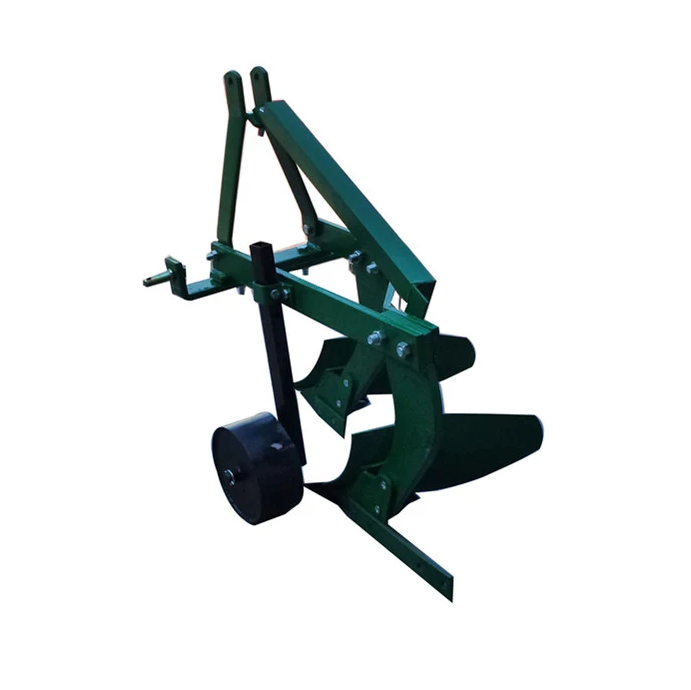

Agricultural Plow
This agricultural plow is designed for efficient soil preparation and cultivation. It features a durable steel frame and adjustable components for controlling plowing depth and angle, making it suitable for various soil types and crop requirements.
Technical Specifications
Overview
Robust Soil Cultivation
This agricultural plow is engineered for efficient soil preparation and cultivation across diverse field conditions. Constructed from heavy-duty steel with a corrosion-resistant finish, it offers long-lasting durability for small to medium-sized farming operations. The implement features adjustable depth control and a versatile three-point hitch system, ensuring precise soil engagement and seamless integration with standard tractors.
Key Features
- Construction Highlights
- Heavy-duty steel frameCorrosion-resistant finishReplaceable share pointAdjustable depth control wheelThree-point hitch system
Technical Specifications

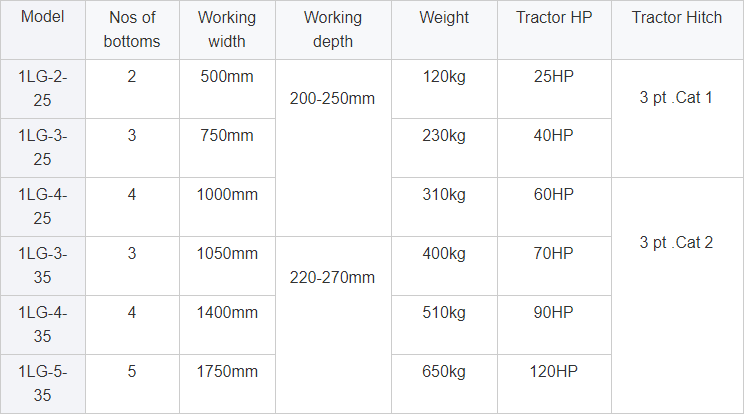

Model Specifications
| Model | Bottoms | Width (mm) | Weight (kg) | Tractor HP |
|---|---|---|---|---|
| 1LG-2-25 | 2 | 500 | 120 | 25 |
| 1LG-3-25 | 3 | 750 | 230 | 40 |
| 1LG-4-25 | 4 | 1,000 | 310 | 60 |
| 1LG-3-35 | 3 | 1,050 | 400 | 70 |
| 1LG-4-35 | 4 | 1,400 | 510 | 90 |
| 1LG-5-35 | 5 | 1,750 | 650 | 120 |
Hitch Compatibility
3 pt. Cat 13 pt. Cat 2
