Agricultural Machinery Bearing Assembly
This bearing assembly is designed for agricultural machinery. It ensures reliable performance and minimizes downtime.
Technical Specifications
Product Overview

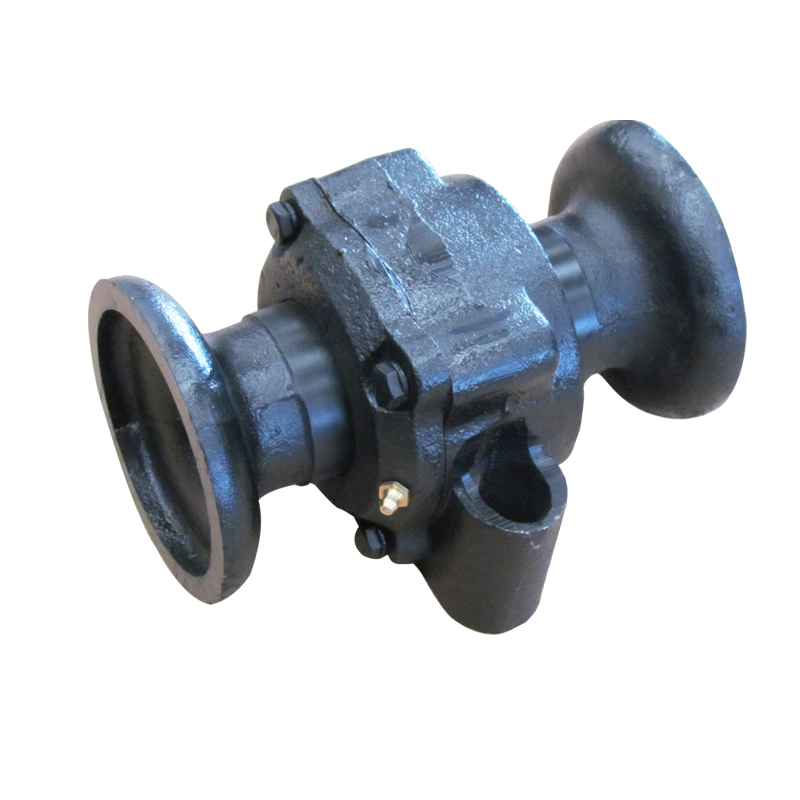

High-Performance Agricultural Bearing Assembly
This bearing assembly is a precision-engineered spare part designed for heavy-duty agricultural machinery, specifically for harrow tine and spacer applications. Built to withstand demanding field conditions, it ensures smooth operation and minimizes downtime for enhanced productivity. The robust cast iron construction and integrated lubrication system provide exceptional resistance to wear and tear.
Technical Specifications
Model Dimensions & Specifications
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Lubrication |
|---|---|---|---|---|---|---|---|---|
| YT-100 | 235 | 158 | 139 | 76.5 | 162 | φ20 | □42.5 | Grease |
| YT-115 | 235 | 158 | 139 | 75 | 162 | φ20 | □42.5 | Grease |
| YT-120 | 230 | 135 | 135 | 84.5 | 162 | φ20 | □42.5 | Grease |
Material & Build
Finish
Black
- Material
- Cast Iron
- Key Features
- High-Strength SteelPrecision-EngineeredCorrosion ResistantHeavy-Duty
Application
Compatible Equipment
- Harrow Tines
- Tillage Equipment
- Planting Equipment
- Cultivators
- Primary Function
- Bearing Assembly and Spacer for Agricultural Implements
