Agricultural Disc Plow

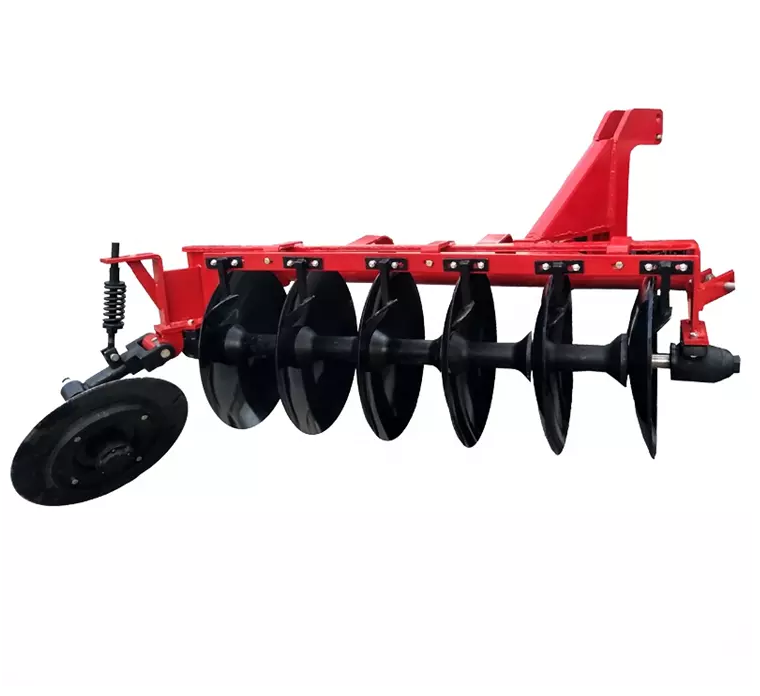

The agricultural disc plow is a tillage implement designed for primary tillage operations. It features a series of concave discs that cut, turn, and break up the soil.
Technical Specifications
Overview
High-Performance Agricultural Disc Plow
This agricultural disc plow is a robust tillage implement designed for primary soil preparation, effectively cutting, turning, and aerating the soil. It features high-strength concave steel discs that excel at burying crop residue and breaking up compacted earth to create an optimal seedbed. Engineered for durability in demanding field conditions, the plow offers adjustable disc angles and depth control to suit various soil types and farming requirements.
Key Features
Core Benefits

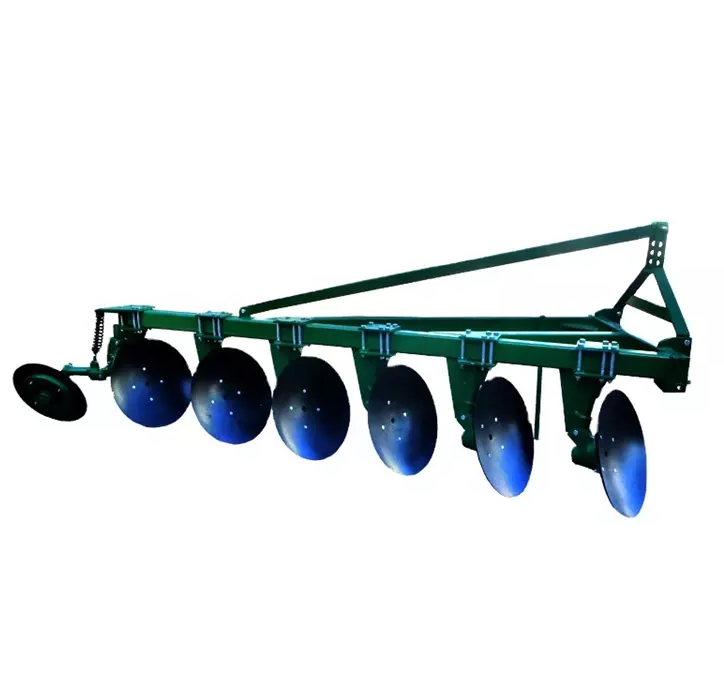

- Independently rotating concave discs for efficient soil inversion
- Heavy-duty frame construction for long-lasting durability
- Adjustable working depth and disc angles for versatile soil management
- High-strength steel discs for superior cutting performance
- Compatible with standard 3-point tractor hitches (Cat 1 & Cat 2)
Performance Metrics
Performance Highlights
300 mm
Max Working Depth
1,500 mm
Max Working Width
160 hp
Max Tractor Power
Technical Specifications
Model Specifications Comparison
| Model | No. of Discs | Disc Size | Working Width (mm) | Weight (kg) | Tractor HP |
|---|---|---|---|---|---|
| 1LYQ-220 | 2 | 20" x 4mm | 400 | 150 | 18hp |
| 1LYT-325 | 3 | 26" x 6mm | 750 | 420 | 50-80hp |
| 1LYT-625 | 6 | 26" x 6mm | 1,500 | 740 | 160hp |
| 1LYT-430 | 4 | 28" x 6mm | 1,200 | 530 | 100hp |
| 1LYSX-425 | 4 | 26" | 1,000 | 720 | 90-120hp |
| 1LYA-8-22 | 8 | 22"/24" | 1,550 | 530 | 120-140hp |
Construction & Compatibility
- Tractor Hitch Compatibility
- 3 pt. Cat 13 pt. Cat 2Hydraulic Differential Cylinder1/2" Thread Oil Connection
- Material & Build

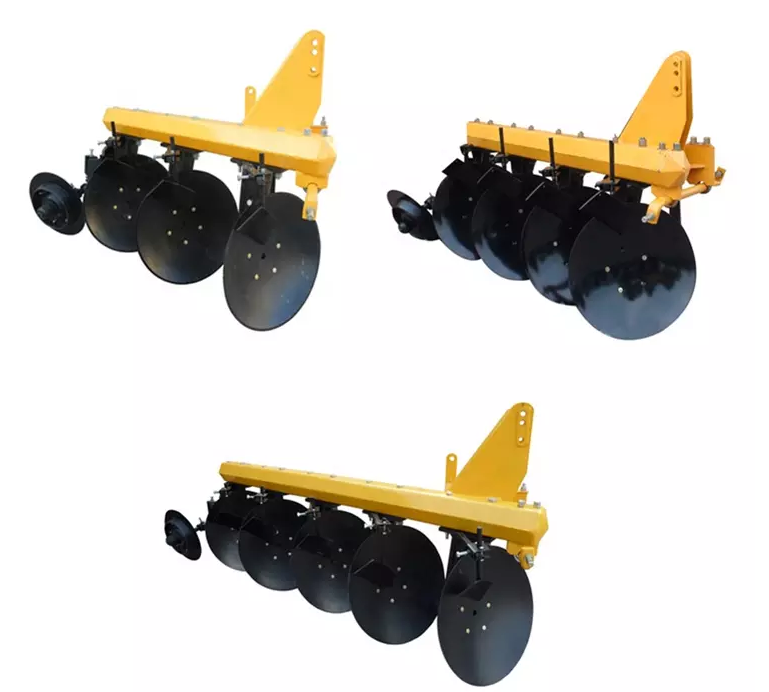

- Hardened steel discs with a heavy-duty corrosion-resistant yellow frame.
