Agricultural Disc Harrow for Soil Preparation
The agricultural disc harrow efficiently prepares soil for planting. It breaks up clods and incorporates crop residue, improving soil structure.
Technical Specifications
Overview
Versatile Soil Preparation Solution
This agricultural disc harrow is a versatile implement designed for primary tillage, seedbed preparation, and weed control. It features high-quality carbon steel discs that efficiently cut through soil, break up clods, and incorporate crop residue to improve soil structure. With adjustable gang angles and a robust frame, it ensures reliable performance across various soil types and farming conditions.
Key Features
Design Highlights
- Independently mounted notched disc blades
- Adjustable working depth and gang angles

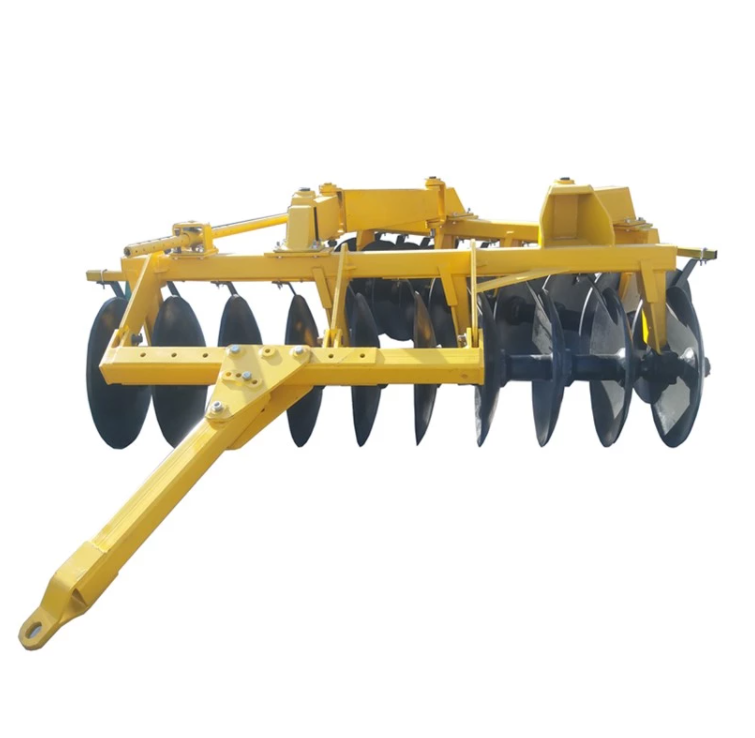

- Heavy-duty steel frame construction

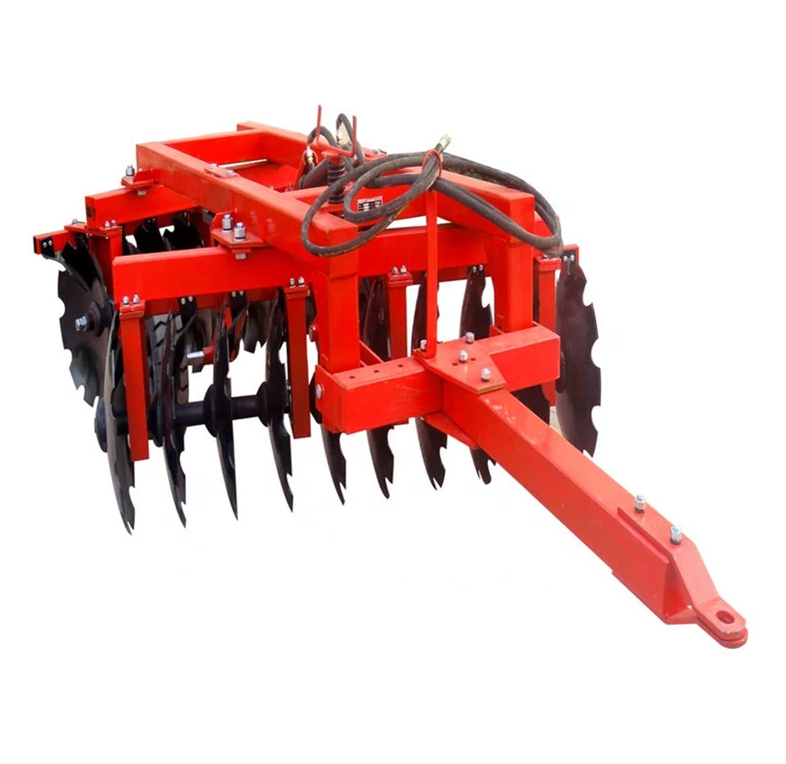

- Hydraulic lift system for transport
- High-quality bearings for long-lasting performance
- Primary Functions
- Soil PreparationSeedbed PreparationWeed ControlCrop Residue IncorporationSoil Aeration
Technical Specifications
Performance Metrics
140 mm
Standard Working Depth
580 kg
Standard Weight
100 hp
Max Power Requirement
Model Specifications
| Configuration | Disc Size | Disc Count | Working Width | Working Depth | Matched Power |
|---|---|---|---|---|---|
| Standard Duty | 18" x 3mm | 20/24/28 | 2000-2800mm | 140mm | 50-100hp |
| Heavy Duty | 32" x 10mm | 16/20/24 | 2700-4100mm | 250-350mm | 100-200hp |
Physical Attributes
Available Colors
BlueRedYellow
- Disc Material
- High-quality carbon steel
