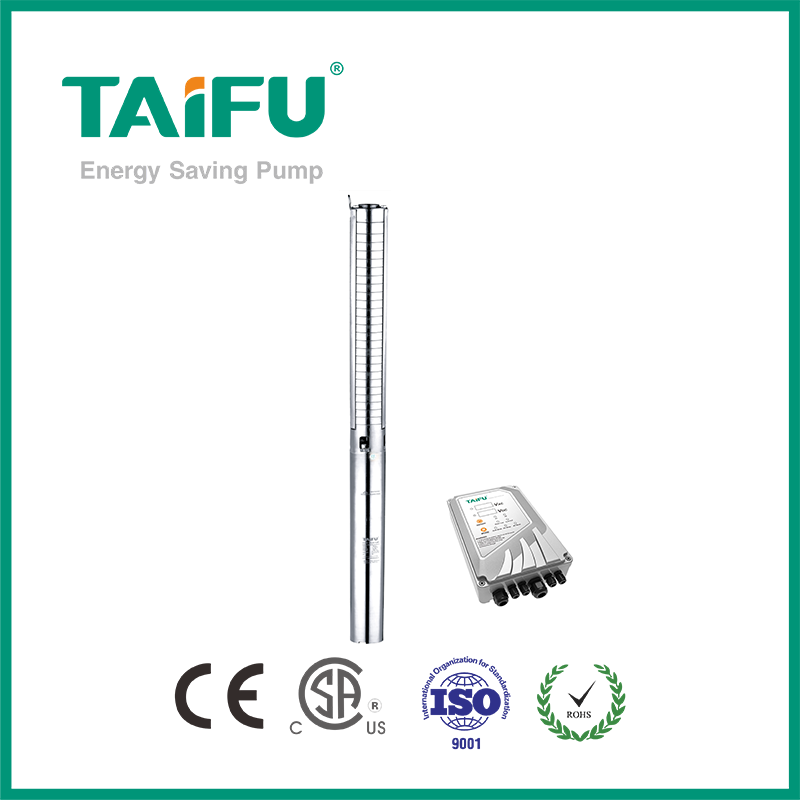

AC/DC Solar Water Pump
This AC/DC solar water pump is designed for energy saving and reliable water supply. It combines AC and DC power options for flexible operation in various applications.
Technical Specifications
Overview
High-Efficiency Dual-Power Solar Water Pump
This advanced water pump system is engineered for versatility, seamlessly switching between AC and DC power sources to ensure reliable operation in diverse environments. Designed for sustainability, it features MPPT and PFC functionality to maximize energy efficiency, making it an ideal solution for irrigation, fountains, and water conveyance in remote areas. Built with high-quality stainless steel components and water-lubricated bearings, this pump offers long-lasting performance and durability even in demanding conditions.
Performance Metrics
Power Range
100 W
Min Power
2,200 W
Max Power
- Rotation Speed
- 500-4500 rpm
- Current Range
- 1.5-14 A
Electrical Specifications
Voltage Input
- DC 60-360V
- AC 90-240V (50/60Hz)
- Efficiency Features
- MPPT Function (>99%)PFC Function (>0.99)
Operating Conditions
Fluid Compatibility
| Parameter | Requirement |
|---|---|
| PH Value | 5-9 |
| Liquid Temperature | 0°C to +40°C |
| Max Sediment | 50g/m³ |
Safety & Protection
Protection Systems
No-loadReverseOver/Under LoadOver-temperatureOver-currentOver-voltagePhase LackLocked Rotor
Construction
Key Materials
- Stainless Steel 304 Main Body
- Stainless Steel Impeller
- Water-lubricated Bearings
- Welded Stainless Steel Rotor Shaft
Certifications
- Compliance Standards
- CECSAISO 9001RoHS
