AC Synchronous Alternator
This AC synchronous alternator is designed for power generation. It is suitable for various industrial and commercial applications.
Technical Specifications
Product Overview

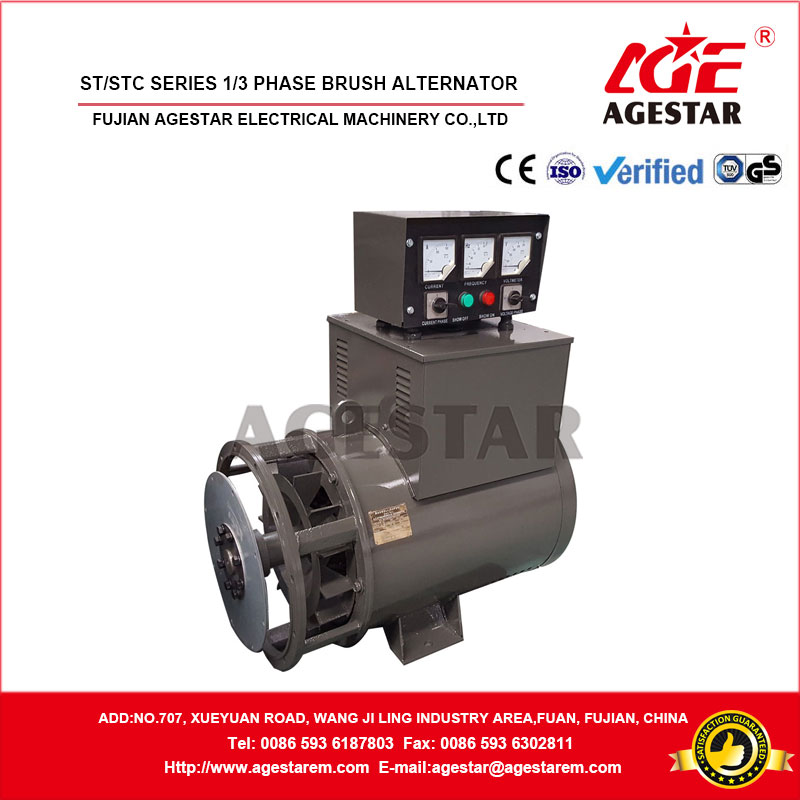

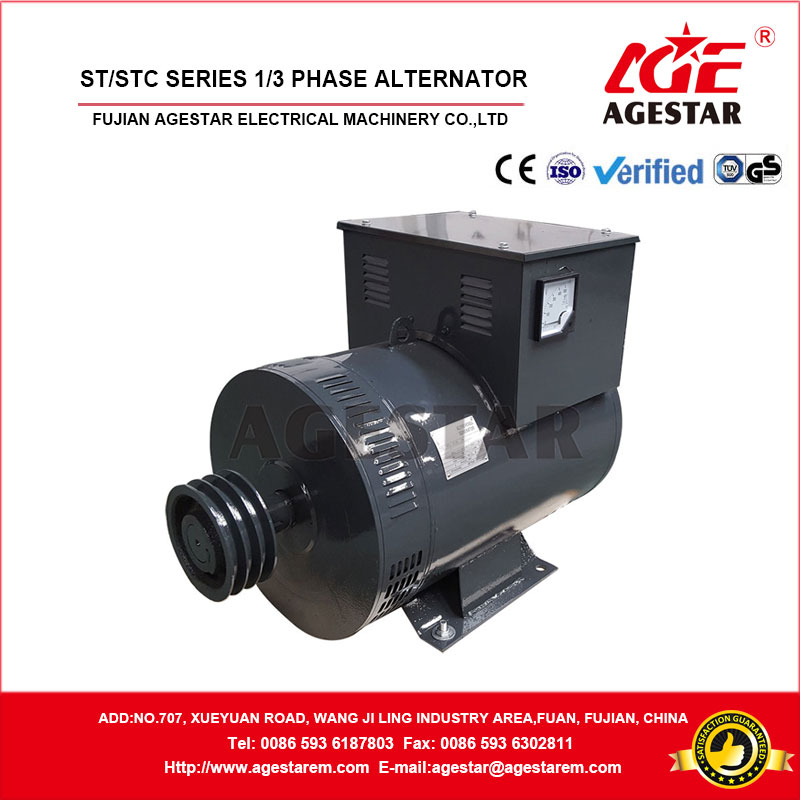

STC Series Three-Phase AC Synchronous Alternator
The STC series alternators are designed as versatile power generating units for small-capacity applications, ideal for lighting on ships and powering household electrical devices in residential areas. These units feature a drip-proof, salient pole rotating field design with self-excitation and constant voltage control for reliable performance. Built with high-quality electromagnetic materials and adhering to IEC standards, they offer a consolidated construction that is easy to maintain and suitable for global markets.
Electrical Specifications
Key Electrical Metrics
230 V
Standard Voltage
50 Hz
Frequency
3 PH
Phase
Voltage Options
- 230V / 115V (Standard)
- 240V / 120V (Optional)
Frequency Options
- 50Hz
- 60Hz
Technical Construction
Insulation Class
| Component | Class |
|---|---|
| Stator | Class E (or B) |
| Rotor | Class B |
- Excitation System
- Harmonic wave self-excitation or automatic voltage control (AVR)
- Enclosure Protection
- Drip-proof
Operation & Performance
Coupling Methods
- Direct coupling with prime mover
- V-belt connection
- Operation Mode
- Continuous duty
- Voltage Regulation Performance
- Satisfactory constant-voltage performance under 0-100% load variation with 5% speed change
Compliance & Standards
Regional Suitability
EuropeAmericaAustralia
- Standards
- IEC StandardCEISO VerifiedGS
