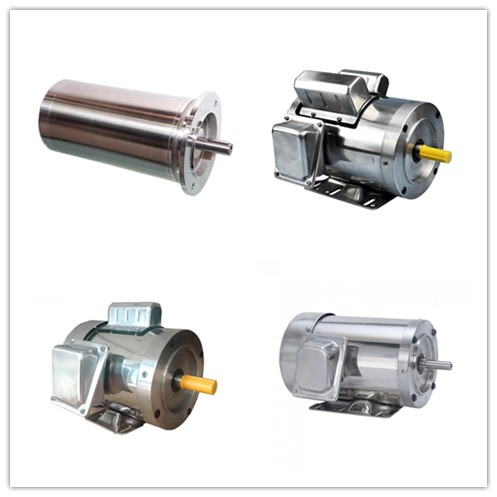

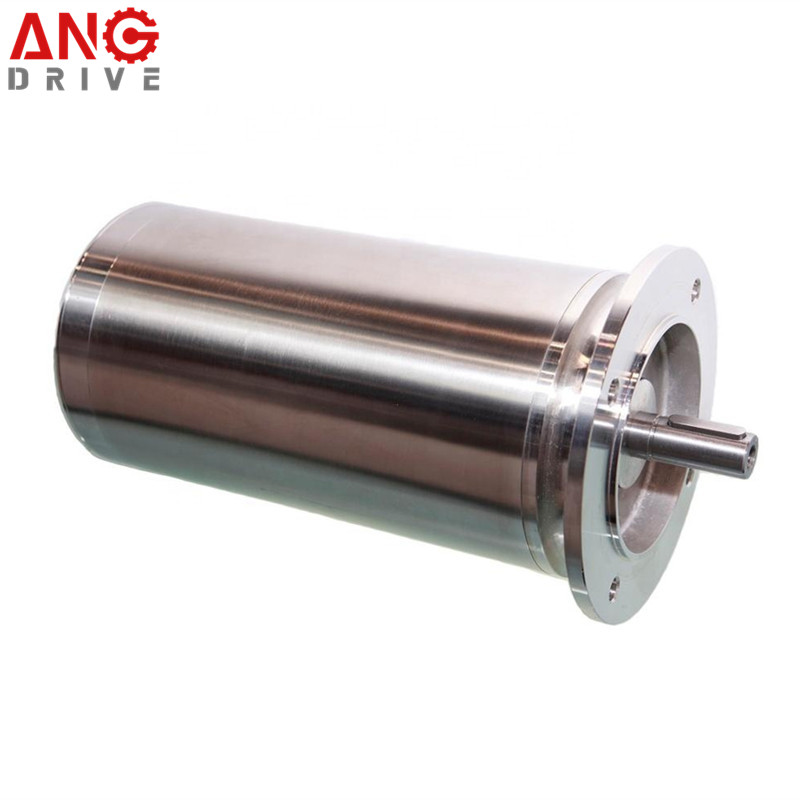

AC Stainless Steel Gear Motor for Submersible Applications
This AC stainless steel gear motor is designed for submersible applications. It features a smooth, stainless steel exterior and is ideal for use in harsh and corrosive environments.
Technical Specifications
Overview
High-Performance Submersible Gear Motor
This AC stainless steel gear motor is specifically engineered for demanding environments, featuring a completely smooth, corrosion-resistant surface ideal for food processing and frequent washdown. With an IP69 protection rating, it ensures reliable underwater performance and durability in highly corrosive or outdoor settings. The design focuses on low noise, low vibration, and a lightweight build to provide efficient power transmission for specialized industrial applications.
Technical Specifications
Protection Class
IP69
- Power Range
- 1/4HP ~ 30HP
- Voltage
- (208-230) 230/460V
- Phase
- Single PhaseThree Phase
- Poles
- 2468
- Cooling Method
- TENVTEFC
Design & Construction
Primary Material
304
Stainless Steel Grade
Frame Sizes
- IEC 63-90 B5 B14
- NEMA 56
- 140T-280
- Mounting Types
- B14B3B5B35B34
Performance Features
Key Features
- All external surfaces stainless steel
- Low noise and low vibration
- Lightweight construction
- Completely smooth surface for hygiene
Operating Environment
- Ambient Temperature Range
- -15 ~ +40 °C
- Maximum Altitude
- 1000 m
- Ideal Applications
- Food ProcessingPackagingOutdoorCorrosive EnvironmentsWashdown Areas
