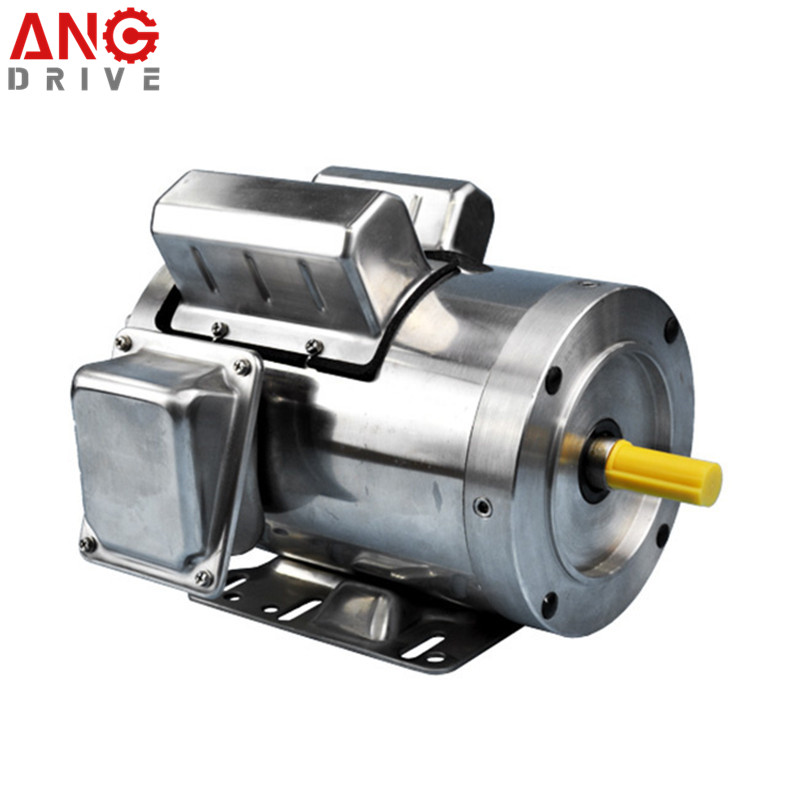

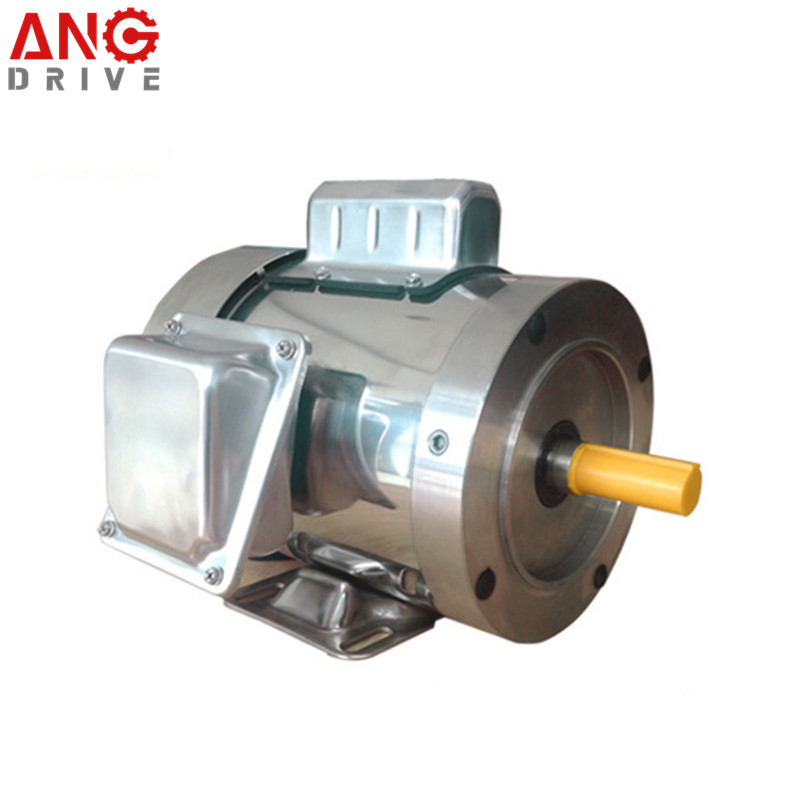

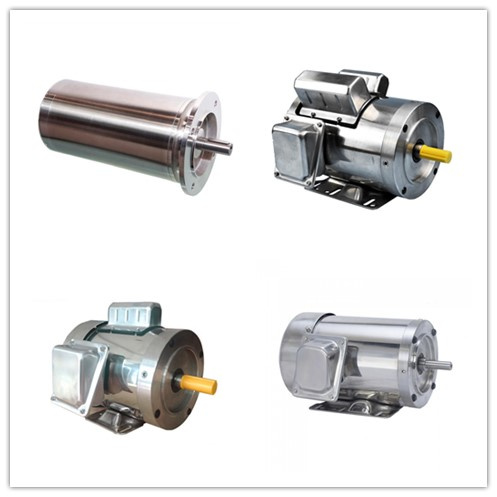

AC Stainless Steel Food Grade Electric Motor
This AC stainless steel electric motor is CE approved and food grade. It is ideal for food processing, packaging, and corrosive environments due to its hygienic design and durable construction.
Technical Specifications
Product Overview
Hygienic AC Stainless Steel Motor
This food-grade electric motor is engineered for demanding environments where hygiene and durability are paramount. Featuring all external surfaces in 304 stainless steel, it offers exceptional resistance to corrosion and is designed for frequent washdown procedures. Its completely smooth surface prevents contaminant buildup, making it an ideal choice for food processing, pharmaceutical packaging, and corrosive outdoor applications.
Key Performance Metrics
Key Performance Metrics
69 IP
Protection Class
304
Stainless Steel Grade
30 HP
Max Power
Technical Specifications
Phase
Single PhaseThree Phase
- Power Output
- 1/4HP ~ 30HP
- Voltage
- (208-230) 230/460V
- Poles
- 2 poles4 poles6 poles8 poles
Mechanical Design
Frame Sizes
- IEC 63-90 B5 B14
- NEMA 56
- 140T-280
- Mounting Options
- B14B3B5B35B34
- Cooling Method
- TENV or TEFC
Environmental Limits
- Ambient Temperature Range
- -15 to +40 °C
- Maximum Altitude
- 1000 m
Compliance & Certifications
- Certifications
- CE ApprovedFood Grade
Application Areas
Ideal Applications
- Food Processing
- Packaging Lines
- Outdoor Environments
- Highly Corrosive Environments
- Frequent Washdown Areas
