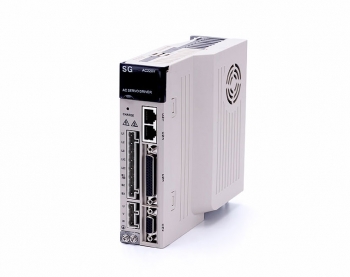

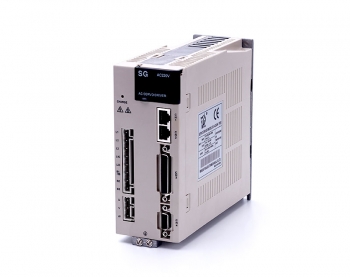

AC Servo Motor Driver 100W-7.5kW
This AC servo motor driver is available in normal and high-quality types. It supports both 220V and 380V power inputs.
Technical Specifications
Overview
High-Performance Servo Control
The SG-AS series AC servo motor driver is engineered for precise motion control across a wide power spectrum, ranging from 100W to 7.5kW. Designed for seamless integration into industrial automation, robotics, and CNC machinery, this driver ensures reliable operation with advanced control algorithms. It supports flexible input configurations and robust protection mechanisms, making it an ideal choice for demanding precision applications.
Performance
Linear Drive Performance
| Signal Type | Max Pulse Frequency |
|---|---|
| Sign + Pulse Train | 500K pps |
| CW + CCW Pulse Sequence | 500K pps |
| 90° Phase Difference (A+B Phase) | 500K pps |
Open Collector Performance
| Signal Type | Max Pulse Frequency |
|---|---|
| Sign + Pulse Train | 200K pps |
| CW + CCW Pulse Sequence | 200K pps |
| 90° Phase Difference (A+B Phase) | 200K pps |
- Supported Power Range
- 100W - 7.5kW
Electrical Specifications
- Input Voltage
- 1PH 220V
- Frequency
- 50 Hz
- Output Voltage
- 3PH 0-220V
Compliance
- Certifications
- CE
- Country of Origin
- China
