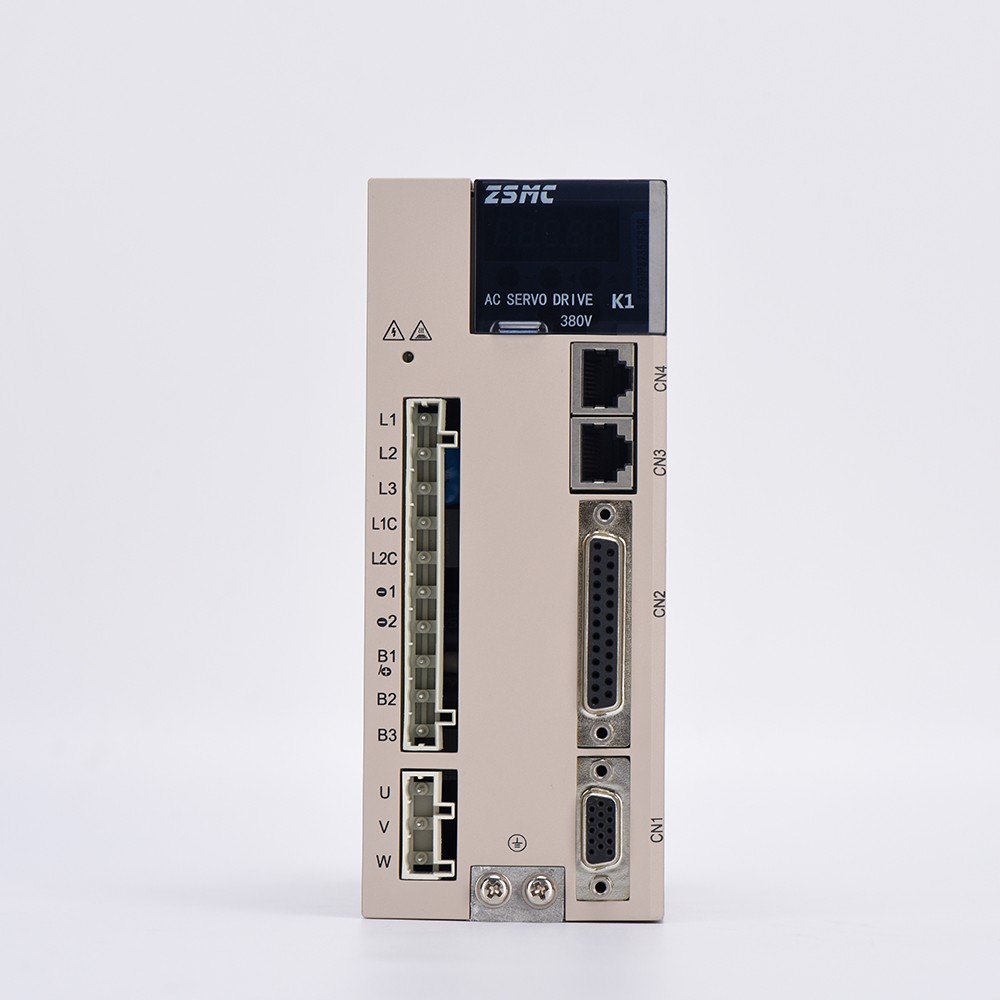

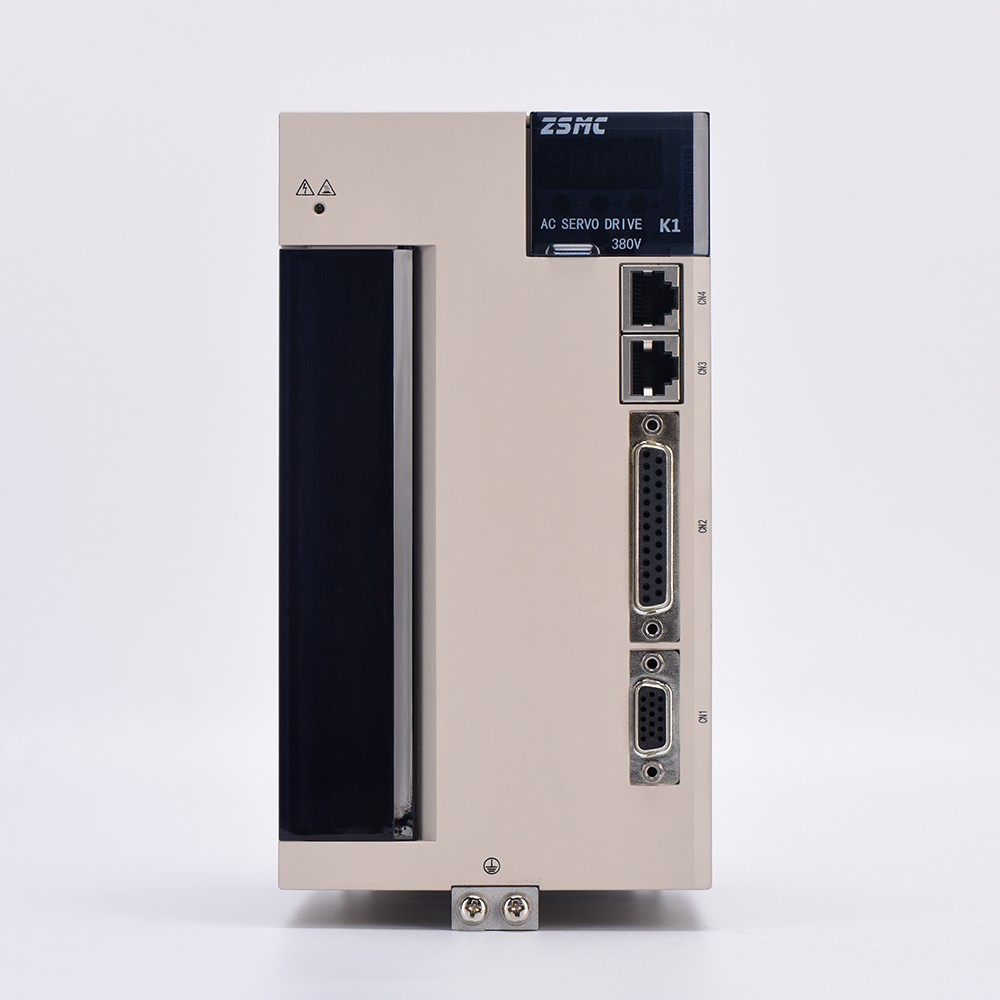

1.8kW 380V Servo Drive for Automation
This 1.8kW, 380V servo drive provides intelligent and stable performance for automation applications. It features internal position mode for multi-path planning and automatic load inertia detection.
Technical Specifications
Product Overview
High-Performance Servo Drive Solution
This 1.8kW 380V servo drive is a robust solution designed for high-precision motion control across industrial applications including robotics and CNC machining. It features advanced intelligence such as automatic load inertial determination, mechanical resonance frequency analysis, and frictional torque compensation to ensure optimal stability and performance. With support for multiple control modes and flexible interface options, it provides seamless integration for demanding automated systems.
Technical Specifications
Control Modes
- Position control
- Speed control
- Torque control
- Inner speed control
- Speed/zero clamp
- Rated Power
- 1.8 kW
- Input Voltage
- 380V AC (Three-phase, -15% to +10%)
- Rated Current
- 5 A
- Supported Protocols
- CANopenModbus
Performance Features
Key Performance Metrics
3 x
Max Torque Capacity
500 kHz
Differential Pulse Input
5,000 Hz
Trap Filter Frequency Max
Environmental Requirements
- Operating Temperature
- 0°C to 45°C
- Maximum Altitude
- 1000 m
Application Compatibility
Common Industrial Applications

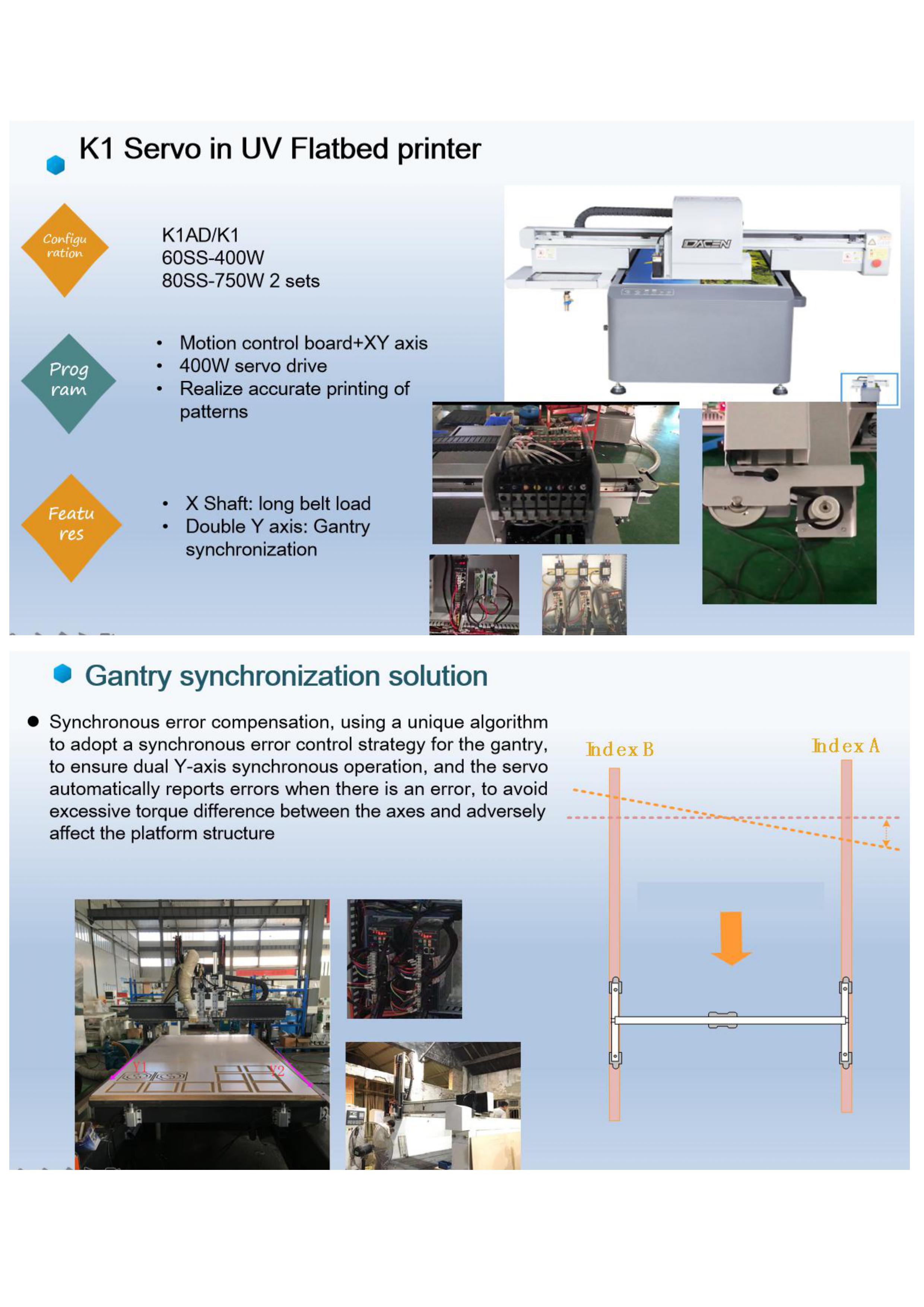

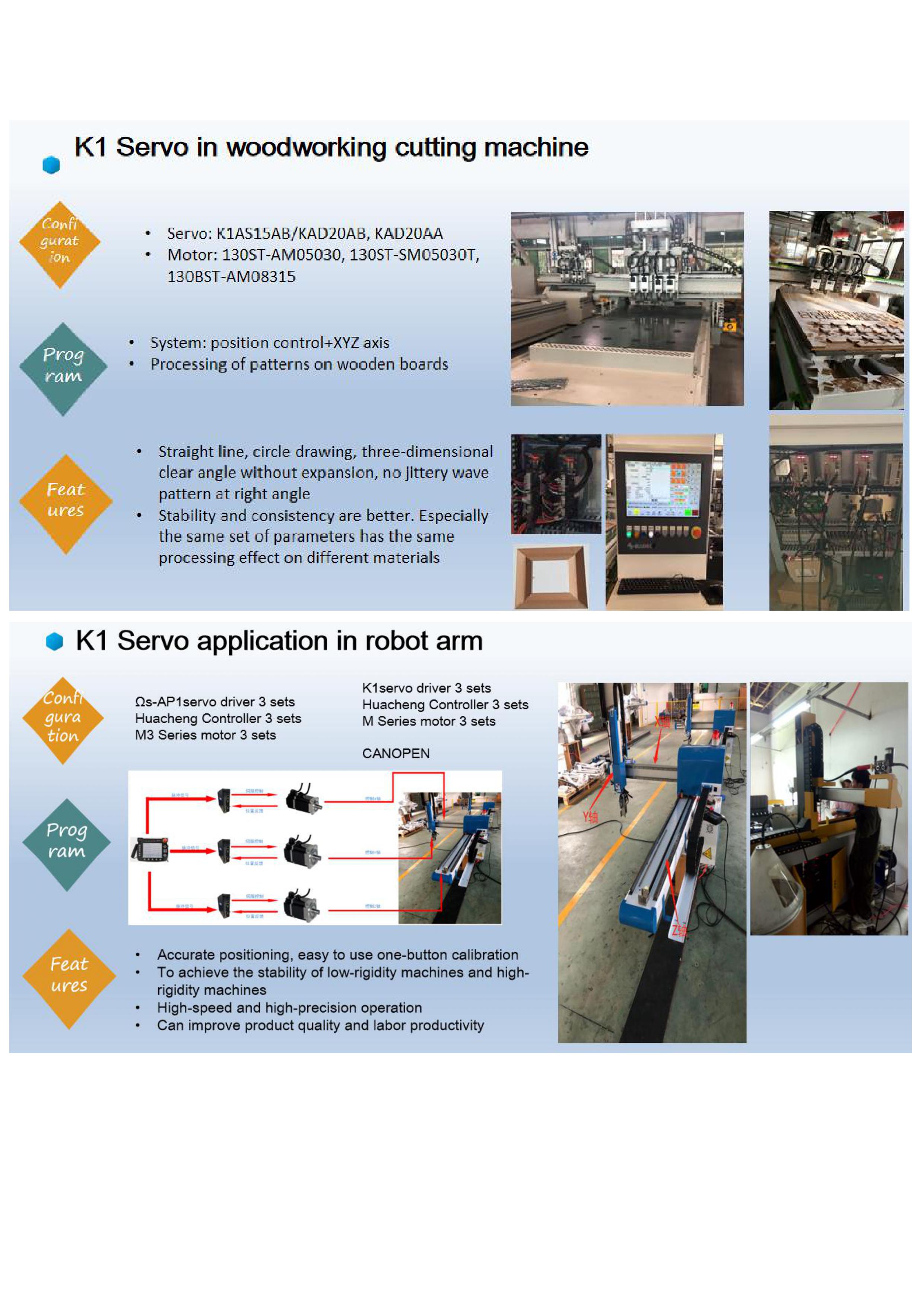

Woodworking CuttingRobot ArmsUV Flatbed PrintersMachine Tools
