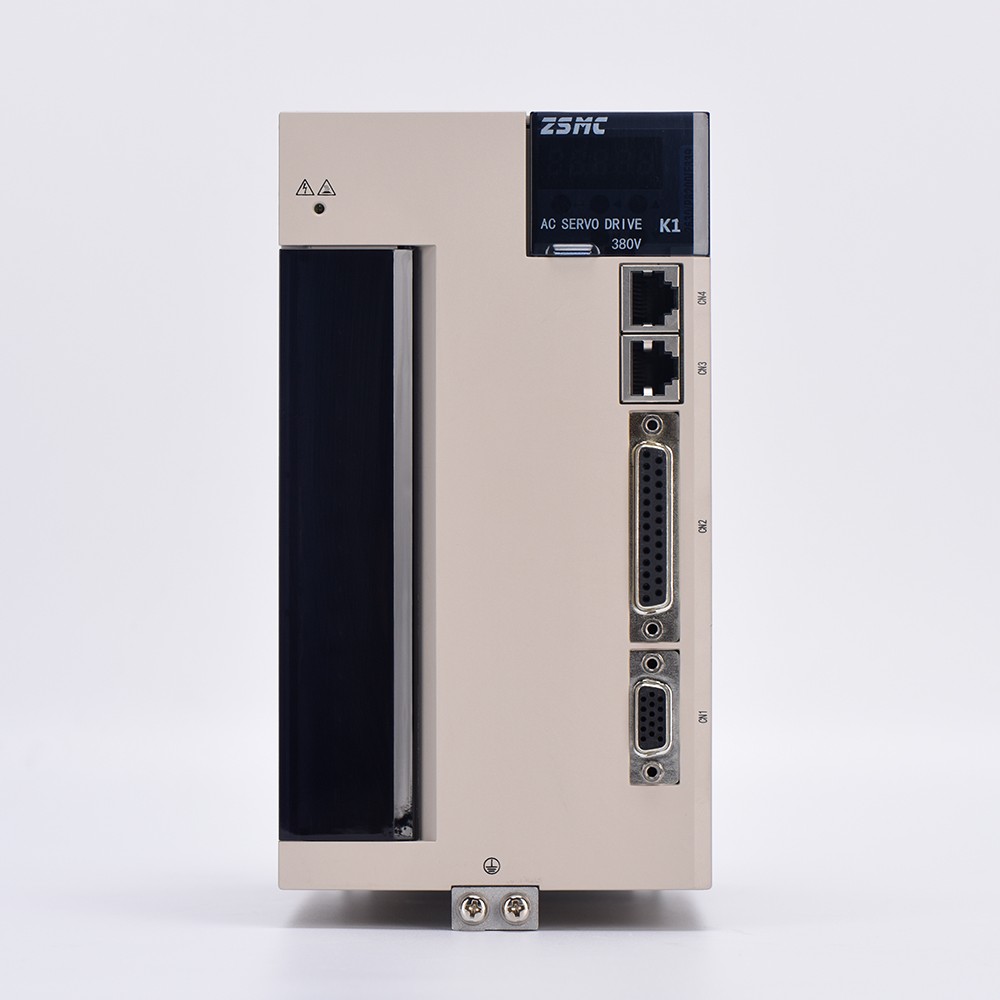

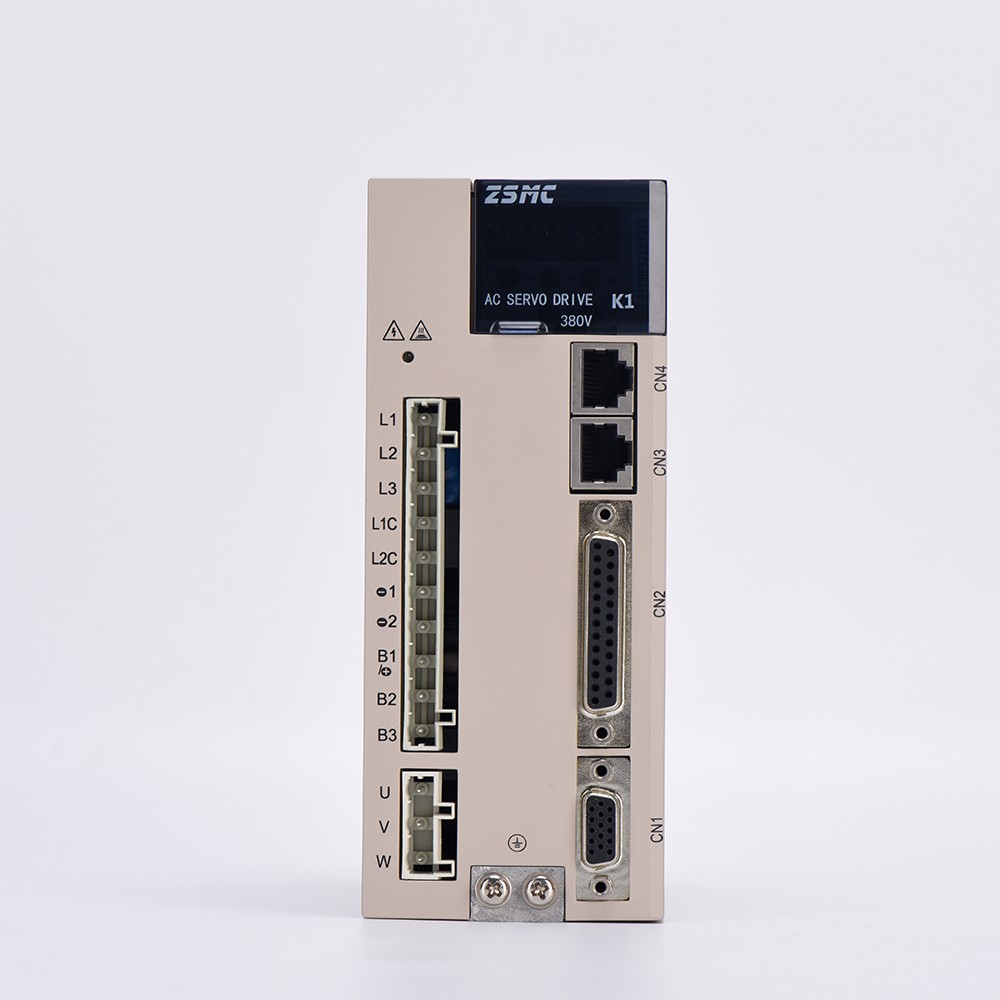

7.5kW 380V AC Servo Drive for Precision Motion Control
This 7.5kW AC servo drive is designed for precise motor control applications. It supports multiple communication interfaces for seamless integration with various control systems.
Technical Specifications
Product Overview
High-Performance 7.5kW Servo Drive
This advanced 7.5kW servo drive is engineered for precision motion control in demanding industrial environments. It features intelligent load inertia determination and mechanical resonance suppression to ensure stability and rapid commissioning. With multi-bus support and flexible control modes, it provides high-speed, high-precision operation for robotics, CNC machinery, and automated industrial systems.
Technical Specifications
- Rated Power
- 7.5 kW
- Input Voltage
- 380V AC (Three-phase)
- Rated Current
- 20 A
Control & Features
Supported Control Modes
- Position Control
- Speed Control
- Torque Control
- Inner Speed Control
- Combined Position/Speed/Torque
Overload Capacity
3 Multiplier
Maximum Torque
- Communication Protocols
- CANopenModbusCustomized CAN
Environmental & Physical
Installation Environment
- Indoor use
- No direct sunlight
- Non-corrosive gas
- Altitude below 1000m
- Operating Temperature
- 0 to 45 °C
