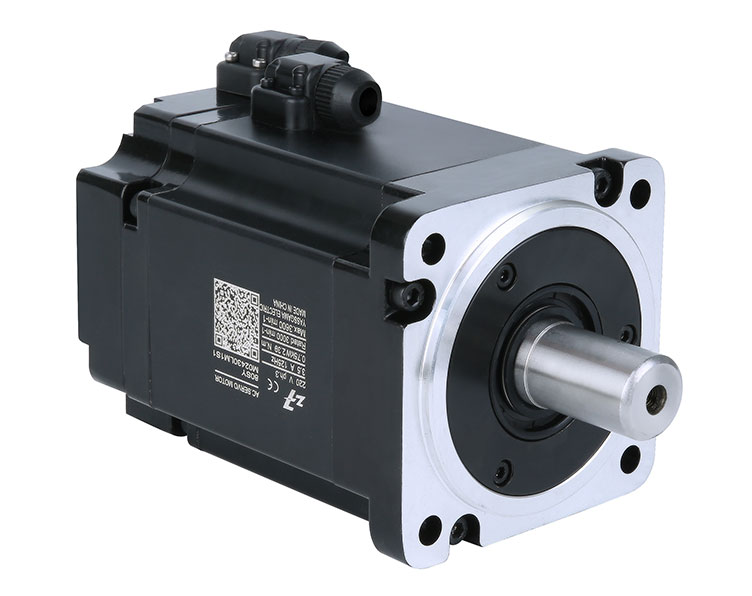

AC Servo Motor 100W-7.5kW, 40-180mm Frame
This AC servo motor is available in frame sizes from 40mm to 180mm and power outputs ranging from 100W to 7.5kW. It is suitable for industrial automation tasks requiring precise speed and position control.
Technical Specifications
Overview
High-Performance AC Servo Motor
This series of AC permanent magnet servo motors is engineered for precision motion control in industrial automation, robotics, and CNC machinery. With a versatile frame size range from 40mm to 180mm and power ratings spanning 100W to 7.5kW, these motors offer reliable performance for demanding applications. Featuring robust construction, flexible encoder options, and self-cooling capabilities, they are designed for continuous duty in varied industrial environments.
Technical Specifications
- Insulation Class
- B
- Protection Class
- IP54
- Insulation Voltage
- 1500 V
- Insulation Resistance
- 10MΩ (at DC500V)
- Vibration Tolerance
- 2.5 G
Environmental Conditions
- Operating Temperature
- 0°C to 55°C
- Max Humidity
- 90%
- Max Altitude
- 1000 m
Configuration
Poles
- 4
- 5
- Available Encoders
- Absolute (17bit)Absolute (23bit)Incremental (2500PPR)Incremental (5000PPR)
- Mounting
- Flange mounting
Performance Data
Model Performance Comparison
| Motor Model | Rated Power (kW) | Rated Current (A) | Rated Torque (Nm) |
|---|---|---|---|
| 60SY-M01630S1 | 0.5 | 3.3 | 1.59 |
| 60SY-M02430S1 | 0.75 | 4.7 | 2.39 |
| 60SY-M03230S1 | 1 | 6 | 3.19 |
