AC Electrical Power Alternator

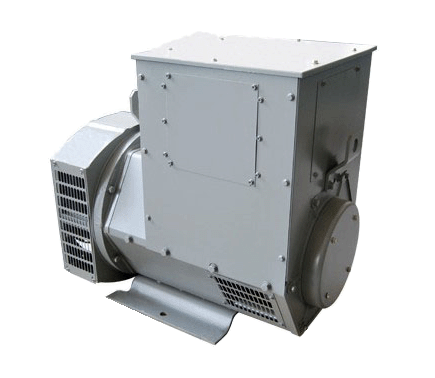

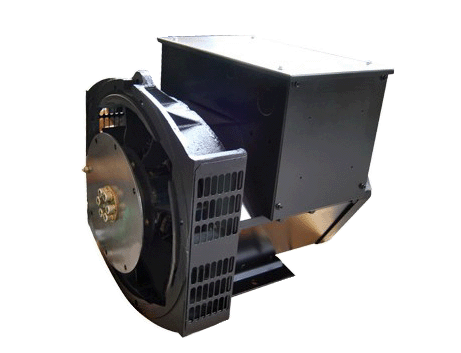

This AC electrical power alternator converts mechanical energy into electrical energy in the form of alternating current. It features a robust housing with ventilation grills for cooling and a terminal box for electrical connections, making it suitable for power generation applications in various industries.
Technical Specifications
Overview
High-Performance Brushless Alternators
The HL Series features advanced brushless synchronous generators designed for reliable power generation across industrial and commercial applications. These units utilize a salient pole rotor construction with full-damping and AVR automatic control to ensure stable voltage output even under distorting loads. With a power range spanning 5kW to 1440kW, these alternators offer excellent compatibility with global drive systems and are built to withstand harsh environments.
Key Performance Metrics
Performance Highlights
Technical Specifications
Insulation Class
Protection Rating
- Power Output Range
- 5kW to 1440kW
- Winding Pitch
- 2/3 standard
- Excitation Method
- Brushless self-exciting with AVR
Construction & Design
Design Features
- Steel shell body construction
- Whole disc stator core
- Salient pole rotor with full-damping
- VPI and wet-winding protection technology
- Balanced rotor with dual sealed ball bearings
- Available Frame Sizes
- 164184224274314354404
Operational Environment
Standard Operating Conditions
| Parameter | Requirement |
|---|---|
| Maximum Altitude | 1000m |
| Temperature Range | -15°C to 40°C |
| Relative Humidity | ≤ 90% |
Control & Compatibility
AVR Models
- EA460 (Standard)
- EA440 (Parallel operation)
- EA230
- EA08
- EA448 (Auxiliary windings)
- Compliance Standards
- ISO9001IECGB755
Optional Features
Available Options
- Interchangeable S.A.E. flanges and drive discs
- Air inlet and outlet filters
- Space heaters
- Stator thermal protection
- PMG or auxiliary windings
- Droop current transformers (C.T.)
