AC Capacitor Motor for Home Appliances
This AC capacitor motor is designed for home appliance applications. It provides efficient and reliable power for devices such as electric fans.
Technical Specifications
Overview
High-Efficiency Capacitor Motor
The EF75/78 series capacitor motor is a robust and efficient electric motor designed for a variety of home appliances, including electric fans and pumps. It features a durable metal housing for optimal heat dissipation and protection, alongside a high-strength steel shaft for reliable power transmission. Integrated with a capacitor for improved starting torque, this motor ensures smooth, consistent operation for general-purpose machinery.

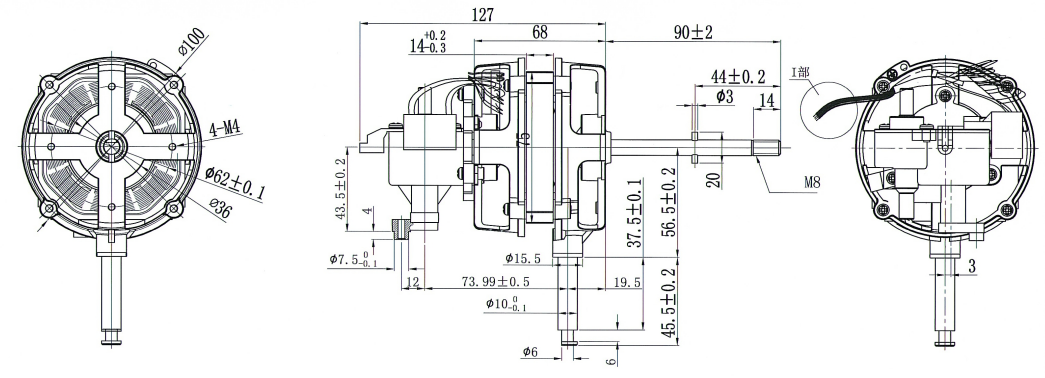

Technical Specifications
Shaft Diameters
- Ø3 mm
- Ø7.5-0.1 mm
- Ø10-0.1 mm
- Ø15.5 mm
- Motor Diameter
- 100 mm
- Mounting Holes
- 4-M4
- Main Diameter
- 62±0.1 mm
- Central Bore
- 36 mm
- Total Length
- 127 mm
Features
- Key Features
- Capacitor StartMetal HousingHigh-Strength Steel ShaftHeat Dissipation
Applications
Suitable Applications
Electric FansPumpsGeneral-Purpose Machinery
